Description
Premium Protection with Extra Fittings

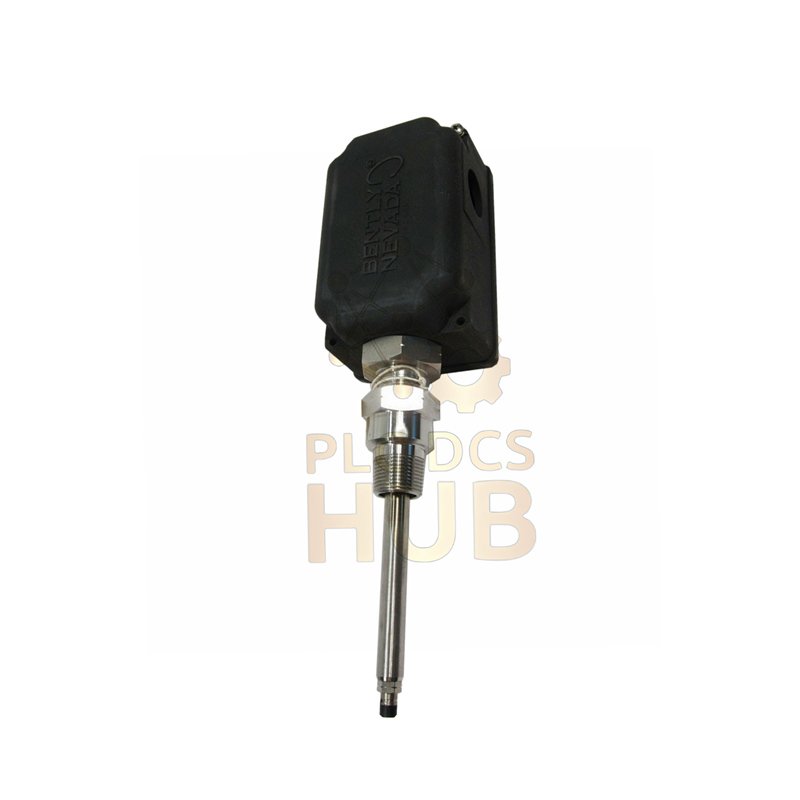

Discover the Bently Nevada 31000 Proximity Probe Housing Assembly, model 31000-28-05-15-026-06-02. This advanced kit offers more than just a housing. It includes a certified 8 mm probe, standoff adapter, and essential pipe fittings. It is the ultimate ready-to-install solution for complex monitoring points in demanding plants.
Detailed Feature Breakdown
- Product Identity
- Manufacturer: Bently Nevada
- Complete Part Code: 31000-28-05-15-026-06-02
- Series: 31000 Heavy-Duty Housing
- Part Number Configuration Guide
- Code -28 : High-spec 8 mm probe with multiple safety approvals.
- Code -05 : 0.5 meter (20 inch) probe cable length inside.
- Code -15 : Includes a 1.5-inch standoff adapter for mounting.
- Code -026 : Probe penetration depth is 2.6 inches.
- Code -06 : Full fitting kit (reducer, NPT fitting, plugs).
- Code -02 : Housing has 3/4-14 NPT external mount thread.
- Superior Build Quality
- Housing: Conductive, reinforced PPS plastic.
- Internal Parts: AISI 304 stainless steel sleeve and chain.
- External Hardware: AISI 303 stainless steel screws.
- Seals: Neoprene O-ring for a weather-tight seal.
- Installation Torque: Use 29.4 N·m on the retaining nut.
- Unit Weight: Approximately 1.2 kg.
- Robust Performance Specifications
- Temp. Operating Range: -51°C to +105°C.
- Enclosure Rating: Certified NEMA 4X and IP66.
- Impact Tested: Survives 4 Joule impacts at high and low temps.
- Mechanical Strength: Supports over 200 lbs of force.
- Hazardous Area Safe: Complies with CENELEC anti-static standards.
- Ordering & Service Details
- Shipping Carriers: FedEx, UPS, and DHL express services.
- Quality Promise: Covered by a 12-month warranty.
- Expert Support: Message our engineers on WhatsApp for setup help.
Expert Answers to Your Questions
Product Features
Q: What makes the -28 probe option special?
A: It carries multiple agency approvals. This is crucial for use in certified hazardous locations like oil and gas facilities.
Q: What is included in the -06 “fittings option”?
A: You get a 3/4″ NPT fitting, a reducer to 1/2″ NPT, and two sealing plugs. This allows flexible connection to different pipe sizes.
Application & Selection
Q: When do I need the 1.5-inch standoff adapter (-15)?
A: Use it when you cannot mount the housing flush to the machine. It creates space for wiring or clears an obstacle.
Q: The probe penetration is only 2.6 inches. Is that enough?
A> Yes, for many applications like measuring bearing housing vibration or case expansion. It is not for long shaft penetration.
Purchasing Guidance
Q: Why choose this model over a simpler one?
A> Choose 31000-28-05-15-026-06-02 if your site needs certified probes, a standoff, and pipe fittings. It saves time sourcing parts separately.
