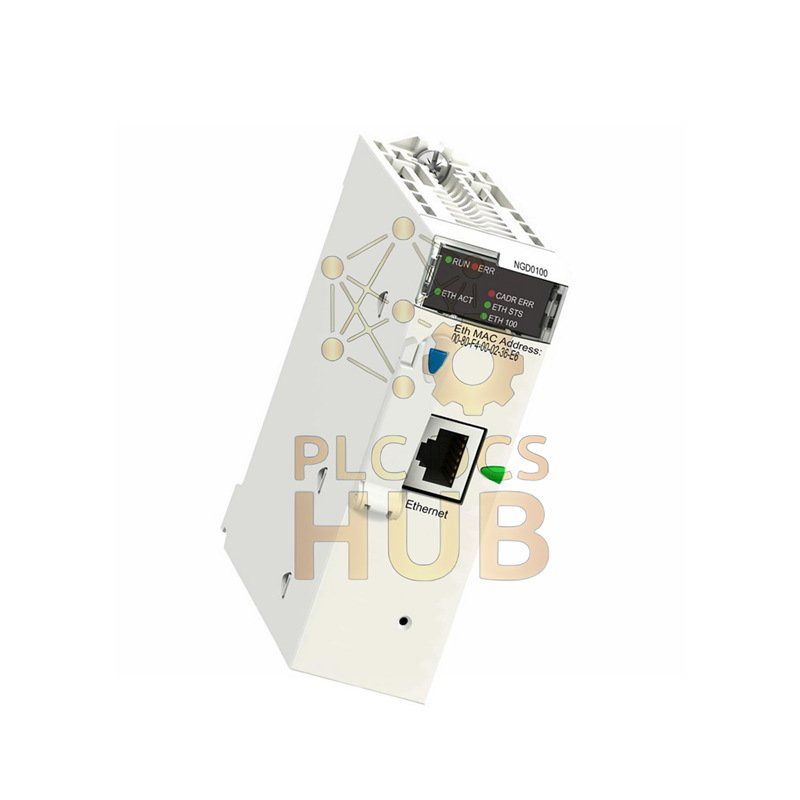

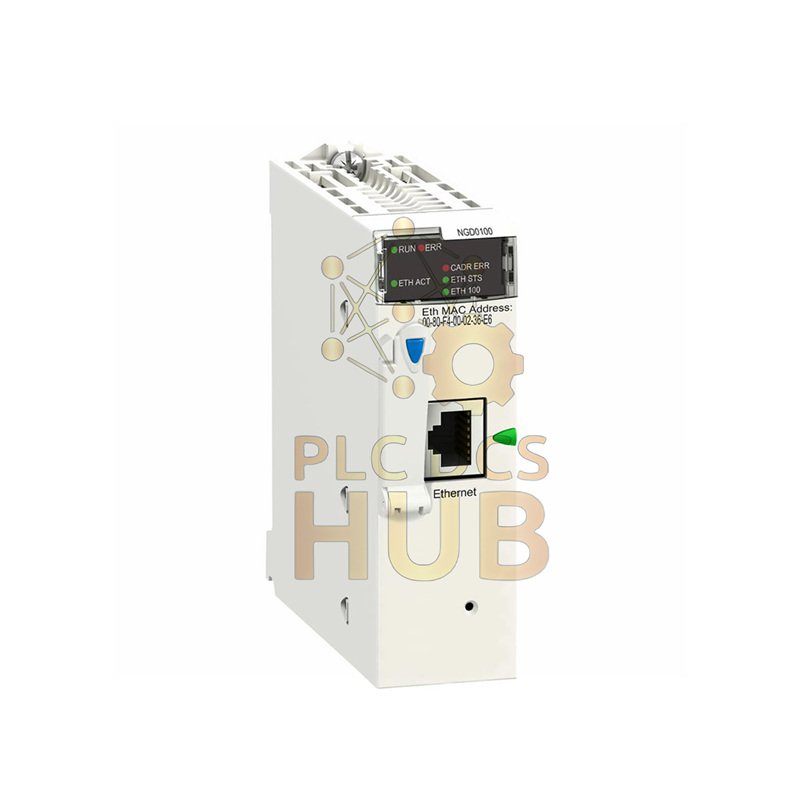

Schneider Electric Modicon M580 Global Data Module
The BMXNGD0100 module enables fast data exchange for Modicon M580 systems. This Ethernet TCP/IP module supports Global Data services and Modbus TCP messaging. It ensures reliable communication in industrial environments.
Technical Specifications
- Brand: Schneider Electric
- Model: Modicon M580 BMXNGD0100
- Ethernet Port: 1 RJ45 10/100 Mbit/s
- Current Consumption: 90 mA at 24V DC
- Operating Temperature: 32°F to 140°F (0°C to 60°C)
- Protection Rating: IP20
- Humidity Range: 10% to 95% non-condensing
- Weight: 0.4 lb (0.2 kg)
- Flash Memory: Includes 16MB SD card (BMXRWSC016M)
Key Features
- Global Data service for real-time data sharing
- Modbus TCP messaging capability
- Six status LEDs for easy monitoring
- Cold restart reset push-button
- Standard module format for easy installation
- 10BASE-T/100BASE-TX Ethernet compatibility
Installation Guide
- Mount in compatible Modicon M580 rack
- Connect using internal power supply
- Use standard Ethernet cable for network connection
- Observe all electrical safety standards
- Check LED indicators for proper operation
Packaging & Shipping
- Unit Package: 1 piece per box
- Package Dimensions: 2.17″ x 4.33″ x 4.72″
- Unit Weight: 8.3 oz (236 g)
- Bulk Package: 15 pieces per carton
- Shipping Methods: FedEx, UPS, DHL available
Frequently Asked Questions
- What is Global Data service?
It allows automatic data exchange between PLCs without programming. - Can I use this module without the SD card?
No, the included 16MB flash memory card is essential for operation. - What do the LED indicators show?
They display network activity, system status, and error conditions. - Is this module suitable for harsh environments?
It operates in industrial temperatures with IP20 protection. - How do I reset the module?
Use the RESET push-button for cold restart procedures.
