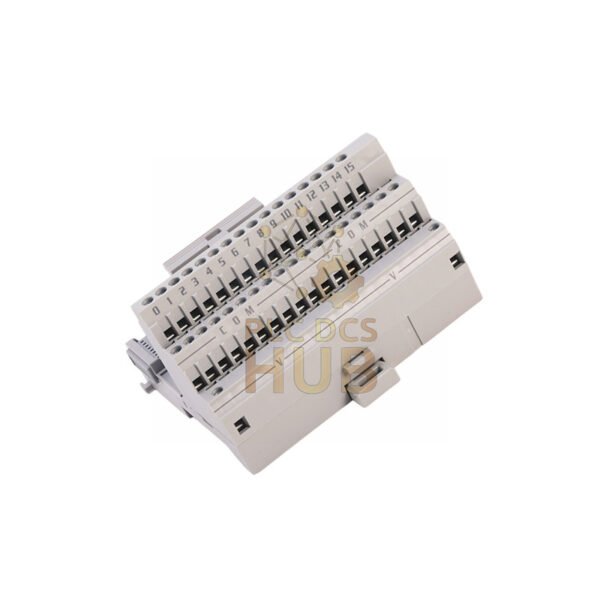

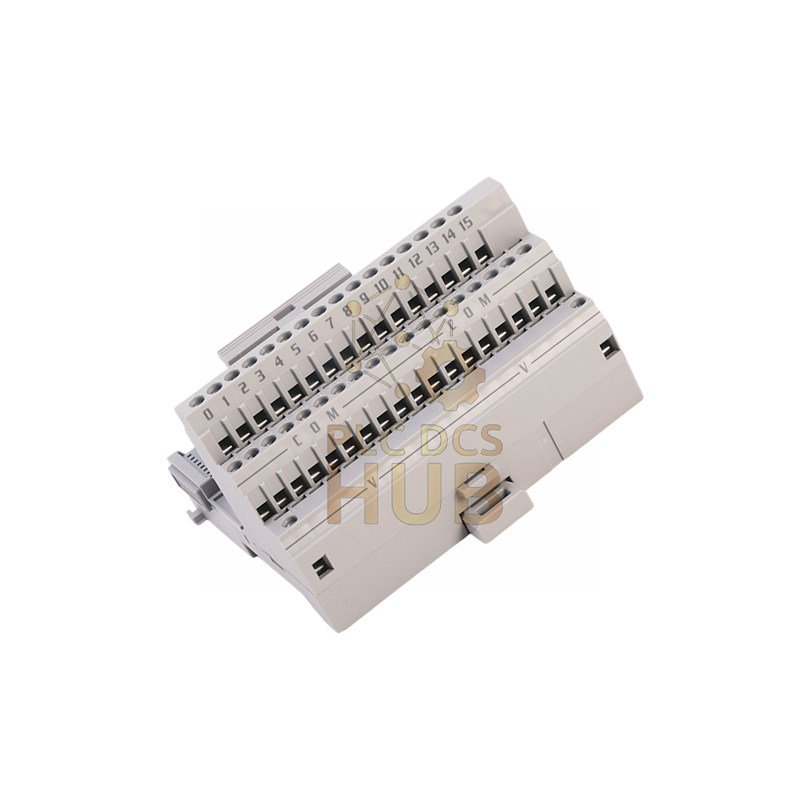

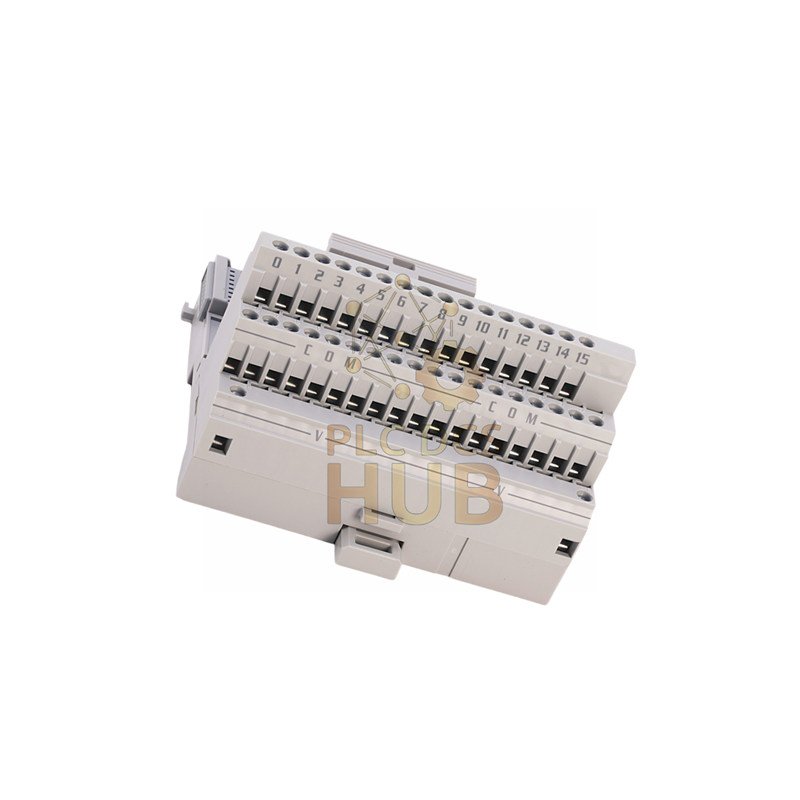

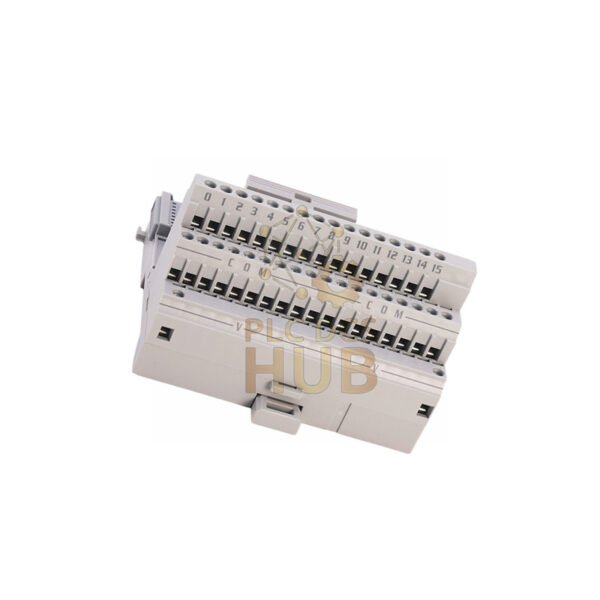

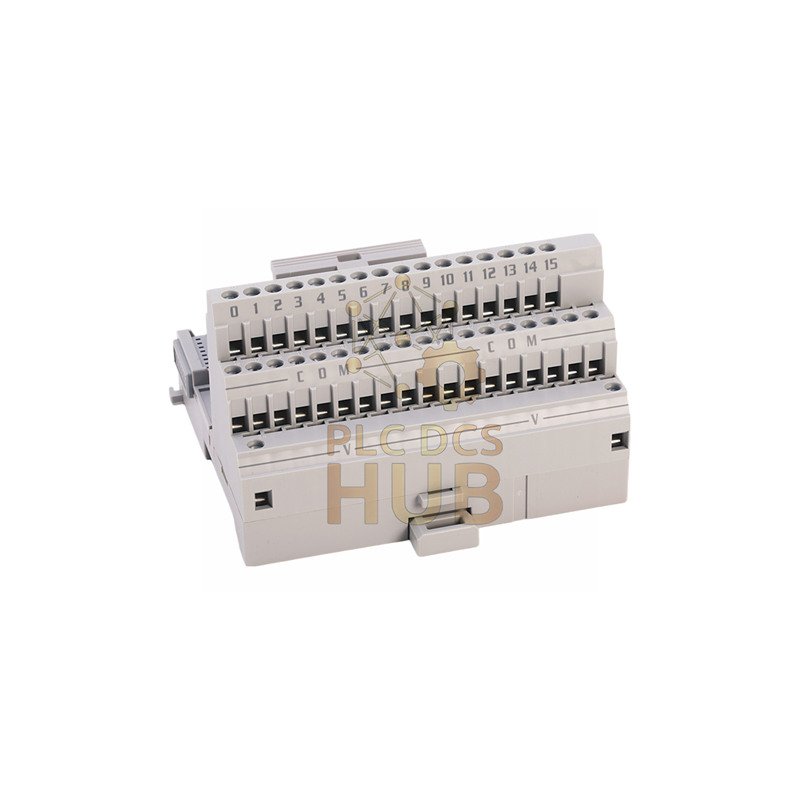

Allen-Bradley 1794-TB32 Flex I/O Terminal Base
The Allen-Bradley 1794-TB32 is a compact terminal base for 32-point Flex I/O modules. It offers 48 screw terminals for easy and safe wiring. This base is perfect for lower voltage control applications, supporting both AC and DC signals.
Technical Specifications
Brand: Allen-Bradley
Model: 1794-TB32
Terminal Type: Screw Clamp
Total Terminals: 48 (32 I/O + 8 Common + 8 Voltage)
Voltage Rating: 24V AC/DC (31.2V Max)
Current Rating: 10 A Max
Wire Size: 0.21-1.3 mm² (24-16 AWG)
Isolation Voltage: 50V Continuous
Screw Torque: 0.56-0.79 Nm
Operating Temp: -20°C to 70°C (-4°F to 158°F)
Dimensions: 94mm x 94mm x 69mm (3.7″ x 3.7″ x 2.7″)
Installation
This base installs quickly on a standard DIN rail or can be panel-mounted. The screw terminals are clearly marked for easy wiring of I/O, common, and voltage connections.
FAQ
1. What is the main use of the 1794-TB32?
It is used to provide wiring terminals for 32-point Allen-Bradley Flex I/O modules.
2. What is the maximum system voltage?
It can handle systems up to 31.2V DC or AC.
3. What wire sizes can be used?
It accepts wires from 0.21 mm² to 1.3 mm² (24 to 16 AWG).
4. What safety certifications does it have?
It is c-UL-us and CSA certified for use in North America.
5. Can it be used in high-temperature environments?
Yes, it operates in temperatures from -20°C to 70°C.
Packaging & Warranty
Package Includes: One (1) Allen-Bradley 1794-TB32 Terminal Base Unit.
We provide a 12-month warranty on this product for your peace of mind.
