Description
Product Snapshot

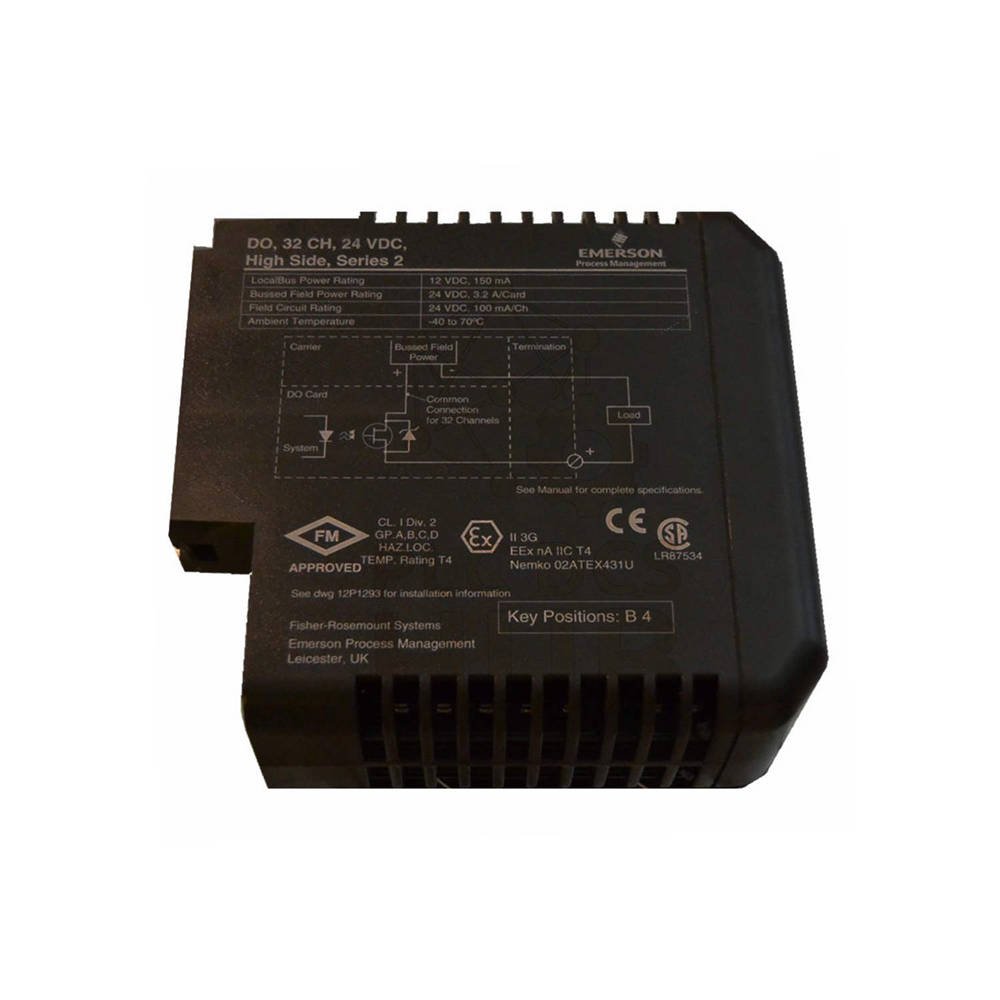

VE4002S1T2B5 is a standard I/O termination block.
Designed for DeltaV control systems.
Built for clean wiring and safe output control.
Key Advantages
- 32 output channels in one compact block
- Optical isolation for each channel
- Stable 24 VDC signal output
- Simple screw terminal wiring
- Low heat and low leakage design
Configuration Breakdown
- Channel Structure
- Total channels: 32
- Independent signal paths
- Common return design
- Electrical Layer
- Output voltage: 24 VDC ±10%
- Channel load: 100 mA max
- Off-state leakage: ≤0.1 mA
- Isolation & Safety
- Optical isolation per channel
- Tested to 1500 VDC
- Noise-resistant output paths
Extended Technical Data
- LocalBus current: 100 mA typical
- LocalBus peak: 150 mA maximum
- Field circuit power: 3.2 A @ 24 VDC
- Wiring type: 2-wire non-arcing
- Terminal style: 32 screw terminals
Application Benefits
- Clean signal output for actuators
- Reduced wiring errors
- Fast field installation
- Stable long-term operation
Logistics & Warranty
- 12-month quality warranty
- Fully tested before shipping
- Shipping via FedEx, UPS, DHL
Professional FAQ
Q1: When should I use a standard termination block?
When you need stable output wiring with clear channel layout.
Q2: Is optical isolation really needed?
Yes. It protects the system from field voltage spikes.
Q3: Can this block handle continuous loads?
Yes. Each channel supports steady 100 mA output.
Q4: What wiring errors does this help avoid?
It reduces shorts and loose wire faults.
Q5: How do I choose between similar blocks?
Check channel count, isolation level, and bus current.
