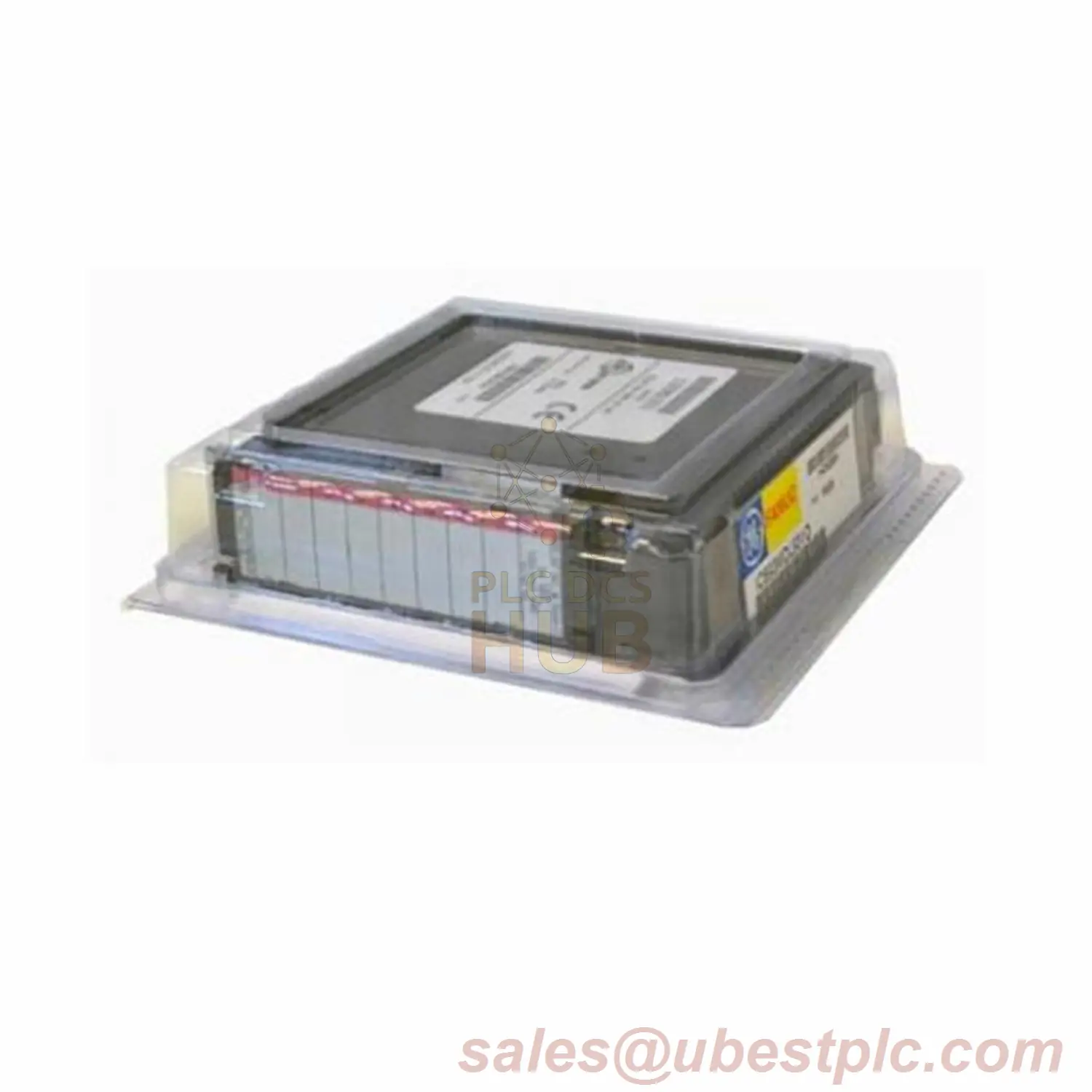

GE Fanuc IC693MDL916 Relay Output Module
Control heavy loads with this 16-point isolated relay module for Series 90-30 PLCs. Features industrial-grade relays handling AC/DC voltages up to 250V.
⚡ Key Features
- 16 isolated Form A relays (Normally Open)
- Dual-voltage operation: 5-125V DC / 5-250V AC
- High-current switching: 4A per channel
- LED status indicators for all outputs
- Compatible with RX3i/RX7i PAC systems
???? Technical Specifications
| Brand | GE Fanuc / Emerson |
| Model | IC693MDL916 |
| Series | Series 90-30 |
| Output Type | 16 Form A Relays |
| Max Current | 4A per channel |
| Voltage Range | 5-125V DC / 5-250V AC |
| Switching Frequency | 20 cycles/minute |
| Backplane Power | 300mA @ 5V DC |
| Isolation | 250V AC continuous |
???? Installation Steps
- Power down PLC rack
- Insert module into available slot
- Connect terminal block (IC694TBBx32/TBSx32)
- Configure DIP switches before power-up
???? Diagnostics & Maintenance
- Green LEDs: Active output status
- Clean quarterly with compressed air
- Check contact wear every 6 months
- Max ambient temp: 60°C (140°F)
???? Package Includes
- IC693MDL916 module
- Installation guide
✈️ Shipping Options
FedEx | UPS | DHL
Global delivery: 2-5 business days
???? Industry Applications
- Conveyor motor control (Amazon warehouses)
- HVAC damper systems (Carrier units)
- Industrial lighting panels (Siemens plants)
❓ FAQ
Q: Can I mix AC/DC loads?
A: Yes – channels are fully isolated
Q: Compatible with RX3i systems?
A: Yes, as distributed I/O
Q: Default DIP switch setting?
A: Must match PLC software configuration
