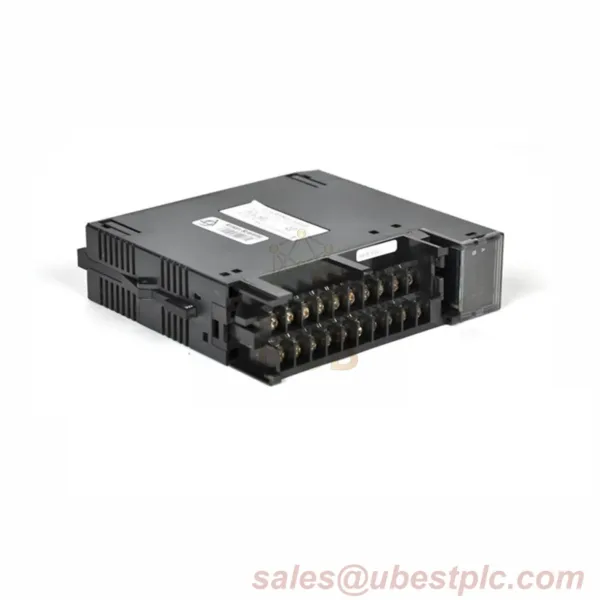

GE Fanuc IC693MDL652 – 16-Point Discrete Input Module
Discontinued PLC input module for GE Series 90-30 systems. Features 16 digital inputs with LED indicators and built-in simulator switches for industrial testing. Ideal for legacy system maintenance.
Key Features
- 16-point DC input capacity
- Built-in simulator with 16 toggle switches
- Terminal block included (20 screws)
- Ultra-fast 1ms response time
- LED status indicators per point
- Compatible with 5-slot/10-slot baseplates
Technical Specifications
| Brand | GE Fanuc |
| Model | IC693MDL652 (Full Suffix) |
| Input Type | Discrete DC |
| Input Range | 0-60 VDC |
| Trigger Voltage | 34-60 VDC |
| Input Current | 4.2 mA |
| Points per Common | 16 |
| Power Consumption | 80mA@5VDC, 125mA@24VDC |
| Response Time | 1ms ON/OFF |
| Status | Discontinued |
Installation Guide
- Mount in 5-slot or 10-slot Series 90-30 baseplate
- Secure with included terminal block (20 screws)
- Connect input devices between +V and input points
- Verify LED operation during power-up
Packaging Includes
- IC693MDL652 Input Module
- Terminal block with 20 screws
Shipping Options
FedEx | UPS | DHL – Global delivery available
FAQ
Q: Is this compatible with current GE PLC systems?
A: Only with Series 90-30 systems (discontinued series)
Q: Does it include mounting hardware?
A: Yes, terminal block with 20 screws included
Q: Can I simulate input signals?
A: Yes, 16 toggle switches on front panel for simulation
Q: What’s the input voltage range?
A: 0-60VDC operating range
