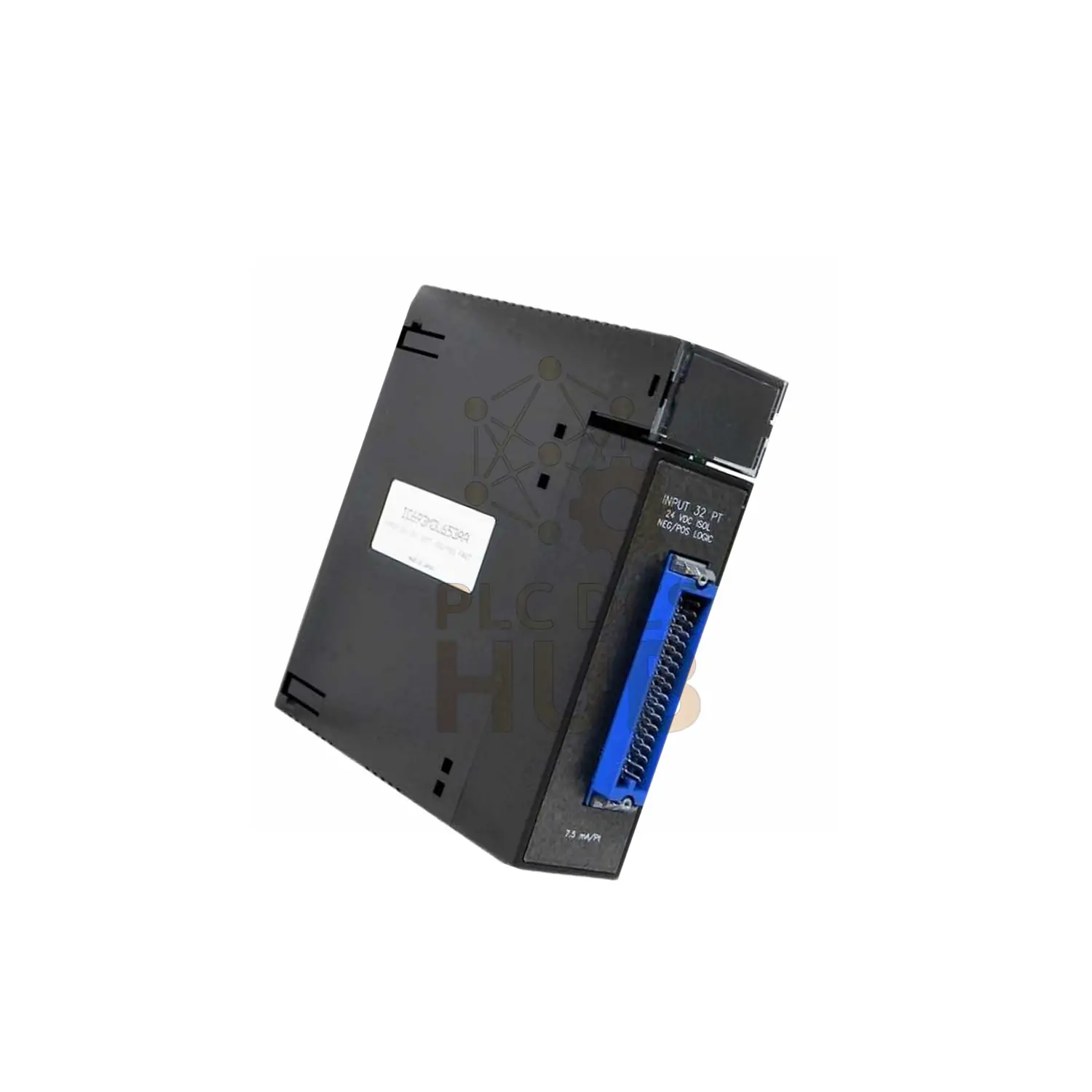

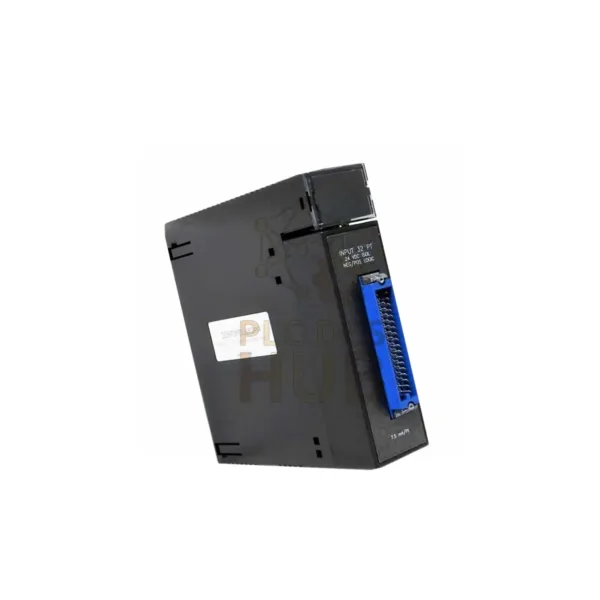

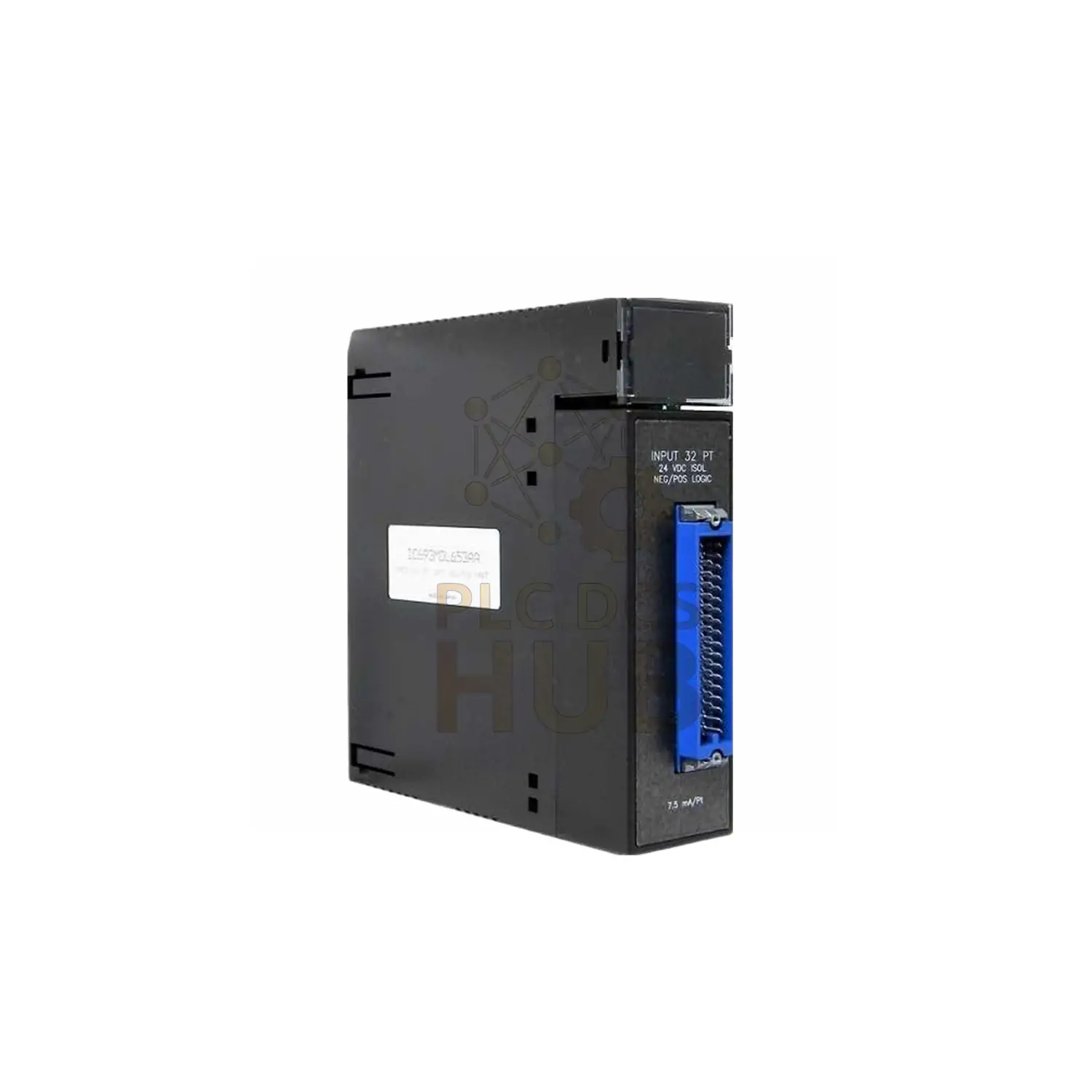

GE Fanuc IC693MDL653 Discrete Input Module
Monitor 32 digital signals in harsh industrial environments. Designed for Series 90-30 PLC systems with robust 1500VAC isolation and efficient power use. Perfect for factory automation.
???? Key Features
- 32 channels grouped in 4 sections
- 2ms ultra-fast response time
- Wide voltage range: 19.2-28.8VDC
- Works in extreme temps: -25°C to 70°C
- Low power: Only 5mA consumption
???? Technical Data
| Brand | GE Fanuc | Model | IC693MDL653 |
| Series | Series 90-30 | Inputs | 32 (8 per group) |
| Voltage Range | 19.2-28.8 VDC | On/Off Response | ≤2ms |
| Isolation | 1500 VAC | Power Use | 5mA @ 5VDC |
| Temp Range | -25°C to 70°C | Dimensions | 40x120x80mm |
???? Installation Guide
- Mount module in Series 90-30 rack
- Connect 24VDC power to terminals
- Wire sensors to input channels
- Use 2 commons per input group
Diagnostics & Maintenance
- Check LED indicators for faults
- Verify voltage >15VDC for ON state
- Clean with dry cloth monthly
- Avoid water exposure
???? Package Includes
- IC693MDL653 module
- Mounting screws
- Terminal labels
- Quick start guide
???? Shipping Options
Global delivery via: FedEx • UPS • DHL
Delivery in 3-5 business days
???? Common Solutions
Problem: Input not responding
Fix: Check wire connections + verify voltage >15VDC
Problem: Module overheating
Fix: Ensure ambient temp <70°C + clear vents
???? Industry Applications
- ???? Auto manufacturing sensors
- ⚡ Power plant limit switches
- ???? Conveyor system controls
❓ FAQ
Q: Voltage tolerance?
A: Works from 19.2V to 28.8VDC
Q: Replacement policy?
A: 12-month warranty for defects
Q: Supports AC voltage?
A: No – DC inputs only
