Description

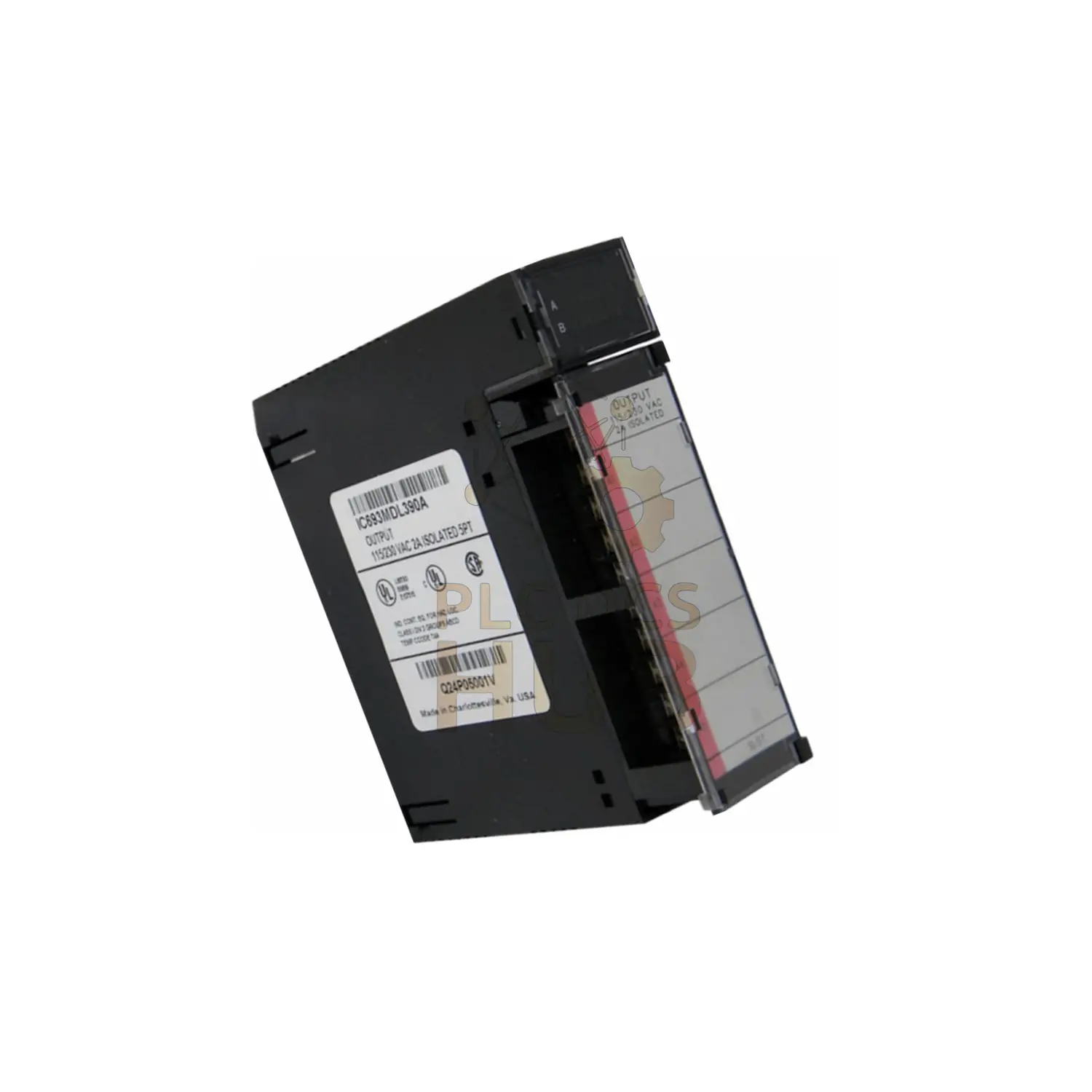

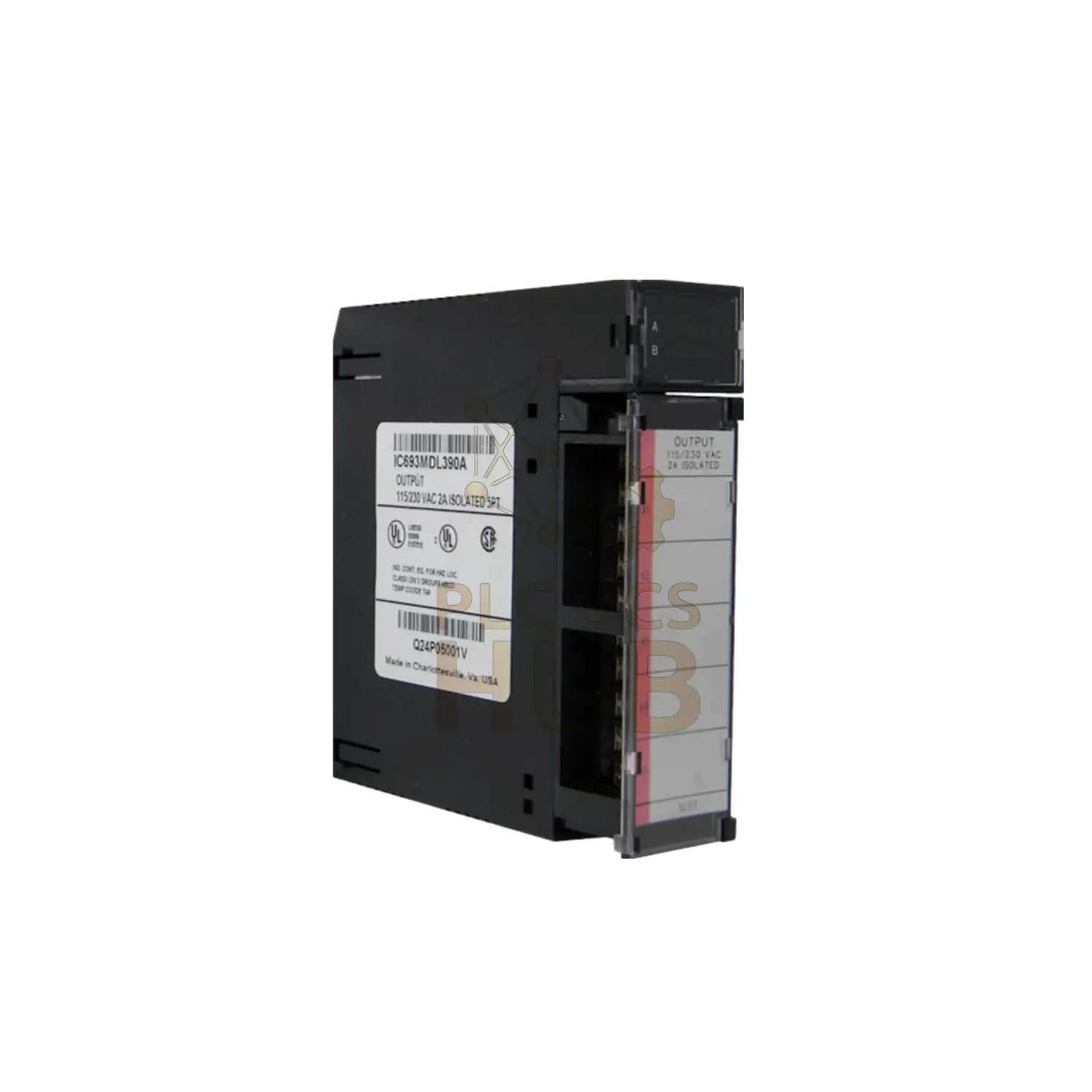

GE Fanuc IC693MDL390 AC Output Module
Control heavy-duty devices with 5 fully isolated outputs. Built for Series 90-30 PLCs in tough factories. Handles wide voltage swings and extreme temperatures.
⚡ Powerhouse Features
- 5 independently isolated channels
- Works with 85-264V AC (50/60Hz)
- 2A per point output current
- Ultra-fast 1ms ON response
- Survives -25°C to 70°C
???? Technical Specs
| Brand | GE Fanuc | Model | IC693MDL390 |
| Series | 90-30 PLC | Output Type | AC Discrete |
| Voltage Range | 85-264V AC | Outputs | 5 isolated |
| Current per Point | 2A | Max Module Current | 5A @45°C |
| Response Time | 1ms ON | Isolation | 1500V AC |
| Power Use | 110mA | Dimensions | 40x120x80mm |
???? Quick Setup
- Mount in Series 90-30 rack slot
- Connect 85-264V AC power
- Wire devices to output terminals
- Keep ambient temp below 70°C
⚠️ Maintenance Tips
- Check for loose wires monthly
- Clean dust with dry air
- Monitor output LED indicators
- Never exceed 2A per channel
???? What’s Included
- IC693MDL390 module
- Installation guide
- Mounting hardware
- Terminal connectors
???? Global Shipping
Shipped worldwide via:
FedEx |
UPS |
DHL
Delivery: 2-5 business days
❓ Top Questions
Q: Max wire size?
A: 14 AWG (2.5mm²)
Q: Warranty period?
A: 12 months for defects
Q: Works with DC voltage?
A: No – AC only
