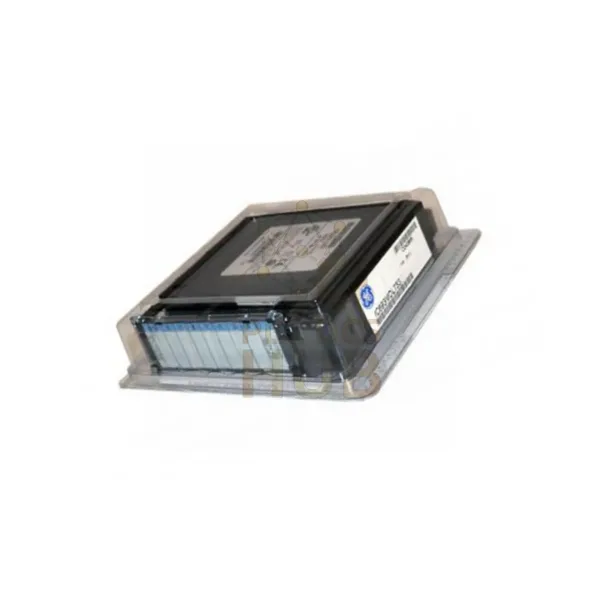

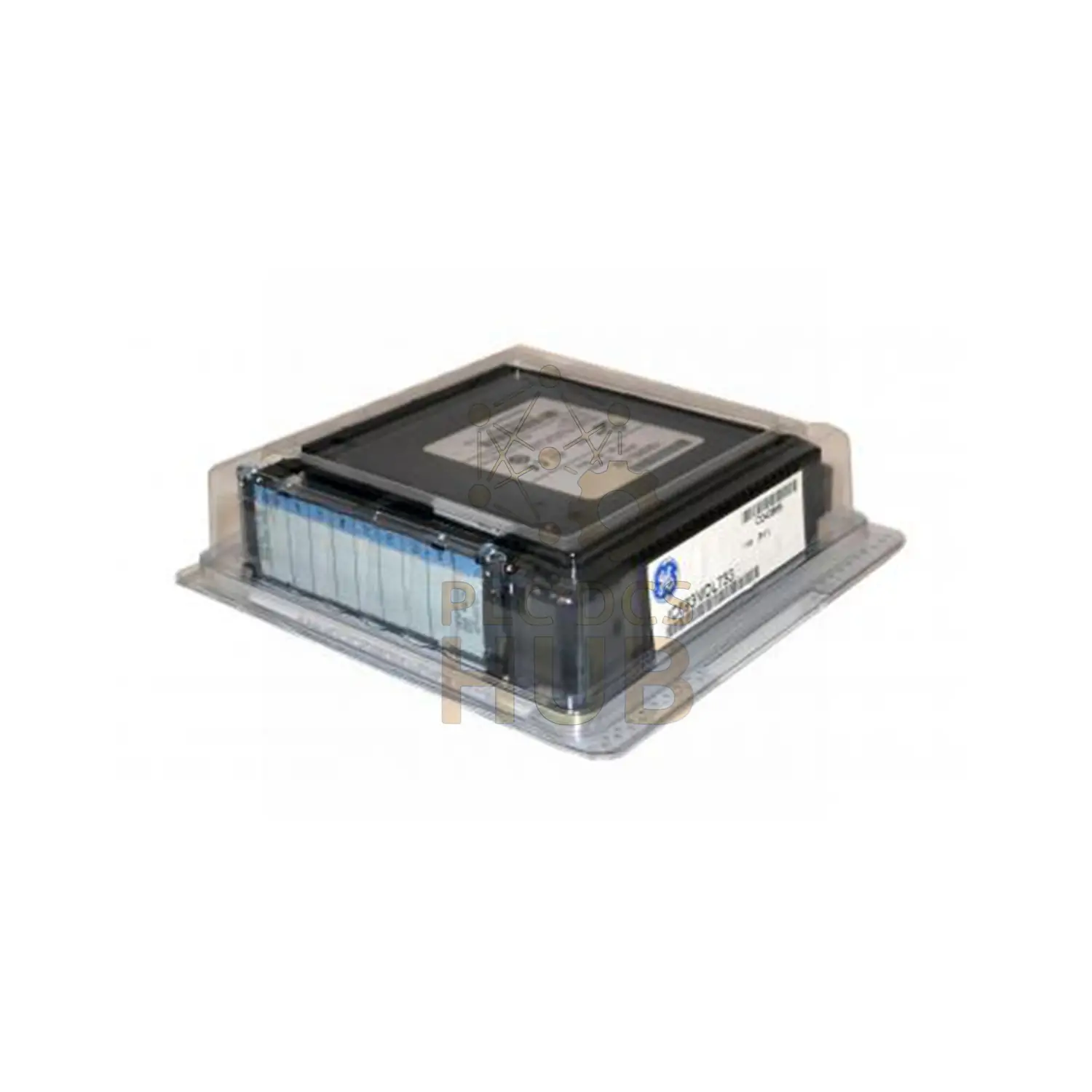

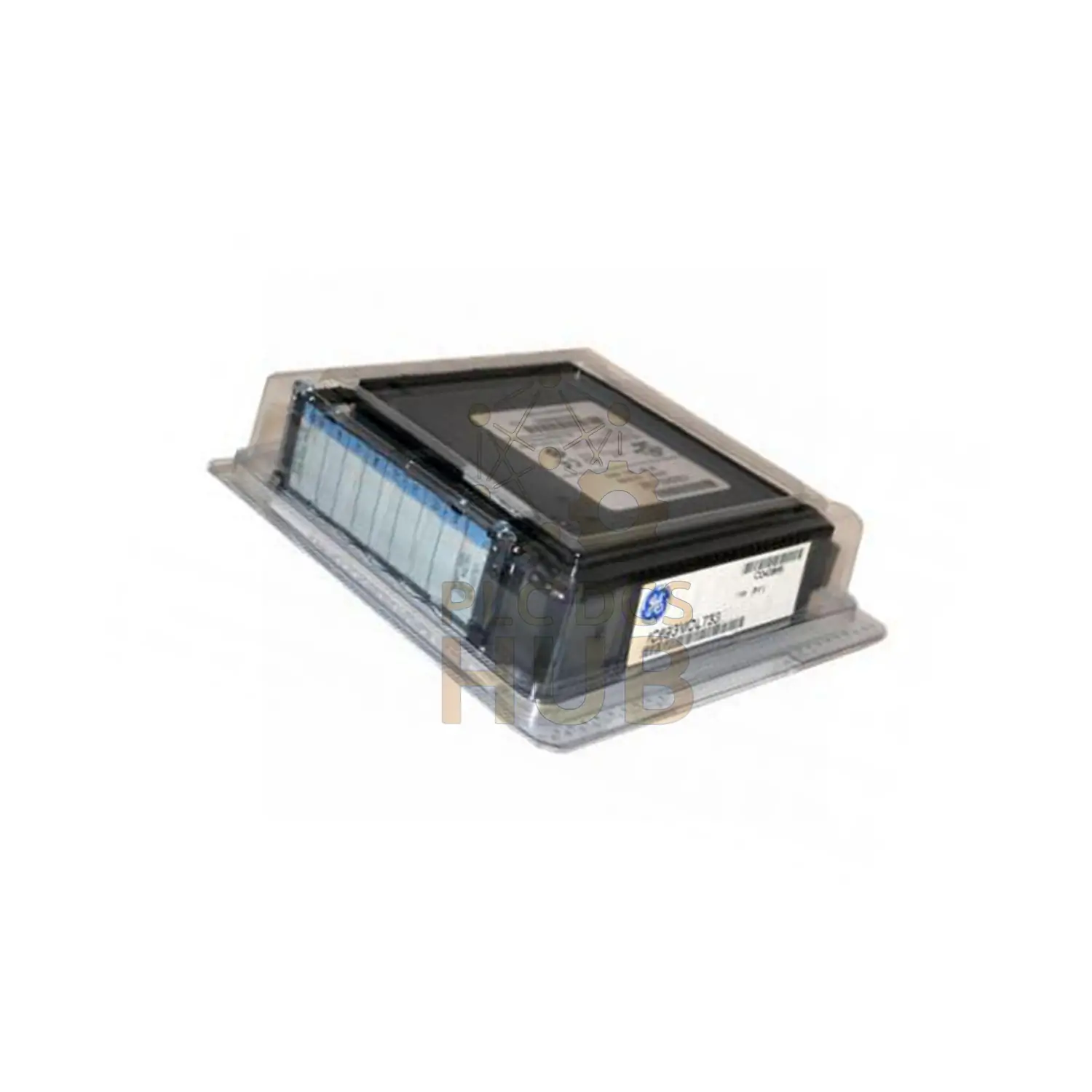

GE Fanuc IC693MDL731: Industrial-Grade Transistor Output Module
Negative-polarity DC output module for GE Series 90-30 PLC systems. Handles demanding industrial loads with 2ms response time and 2A per-point capacity. Perfect for high-speed automation control.
???? Core Specifications
| Parameter | Value |
|---|---|
| Brand | GE Fanuc |
| Model | IC693MDL731 |
| Series | Series 90-30 PLC |
| Output Type | Transistor (Negative Polarity) |
| Voltage Range | 12-24 VDC |
| Current per Point | 2.0 A max |
| Points per Common | 8 |
| Response Time | 2 ms |
| Operating Temp | -20°C to 60°C |
| Isolation | 1500 VAC |
⚙️ Installation Guide
- Mount in Series 90-30 PLC rack using DIN rail clips
- Connect DC power (12-24V) to terminal block
- Ensure negative polarity wiring for loads
- Allow 10mm clearance for heat dissipation
???? Diagnostics & Maintenance
- LED indicators show output status per channel
- Check voltage stability (≥12VDC)
- Clean vents annually with dry air
- Replace if physical damage occurs
???? Packing List
- IC693MDL731 Module (1 unit)
- Terminal connector (1 set)
- Installation manual
✈️ Shipping
Global delivery via: FedEx, UPS, DHL. Tracking provided.
❓ FAQ
Q: Can it drive 24V relays?
A: Yes – supports up to 2A inductive loads
Q: Compatible with Series 90-70?
A: No – only Series 90-30 PLC racks
Q: Waterproof rating?
A: IP20 – for dry industrial environments only
