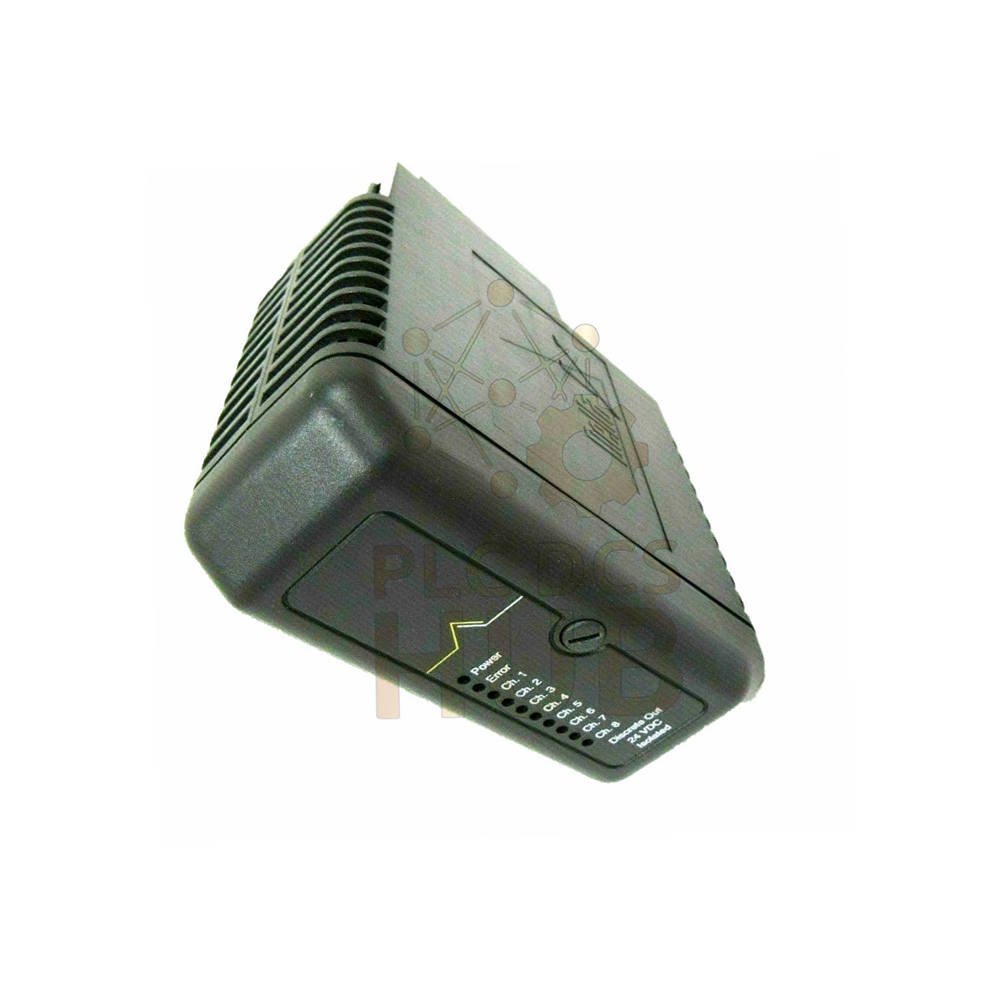

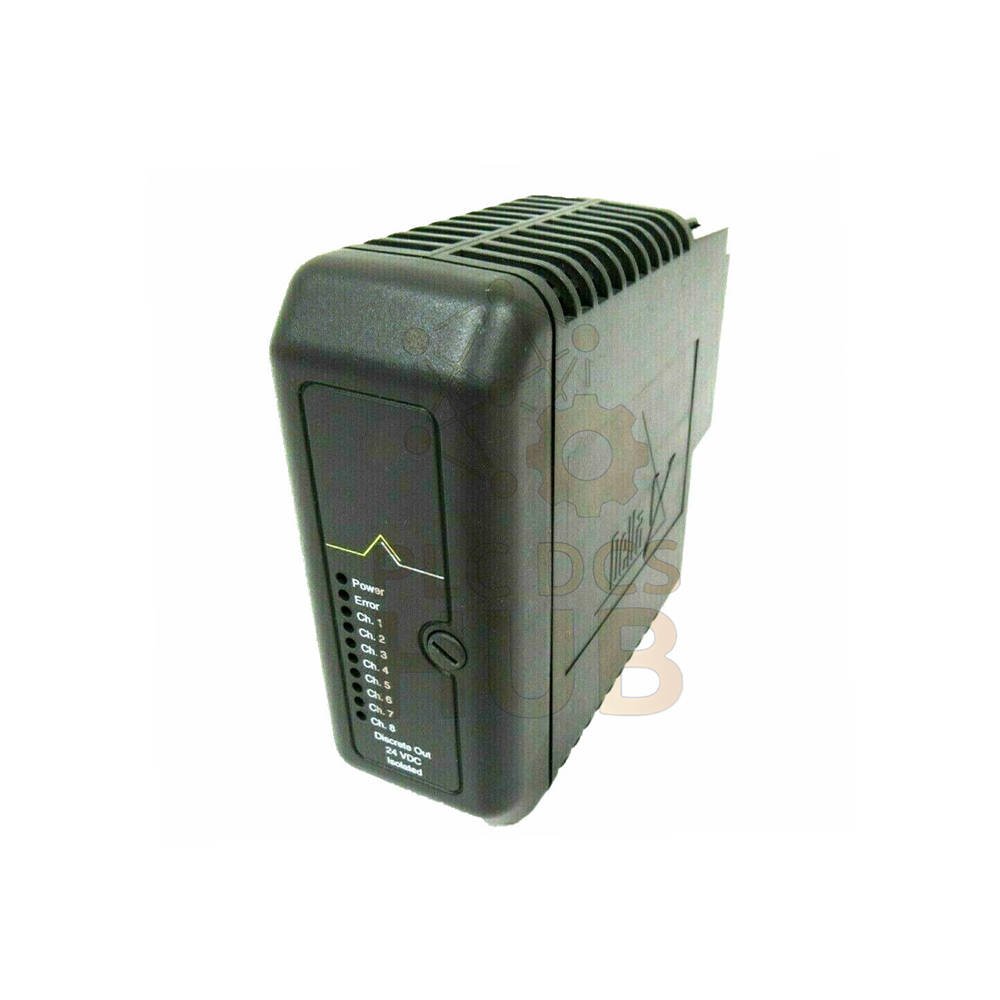

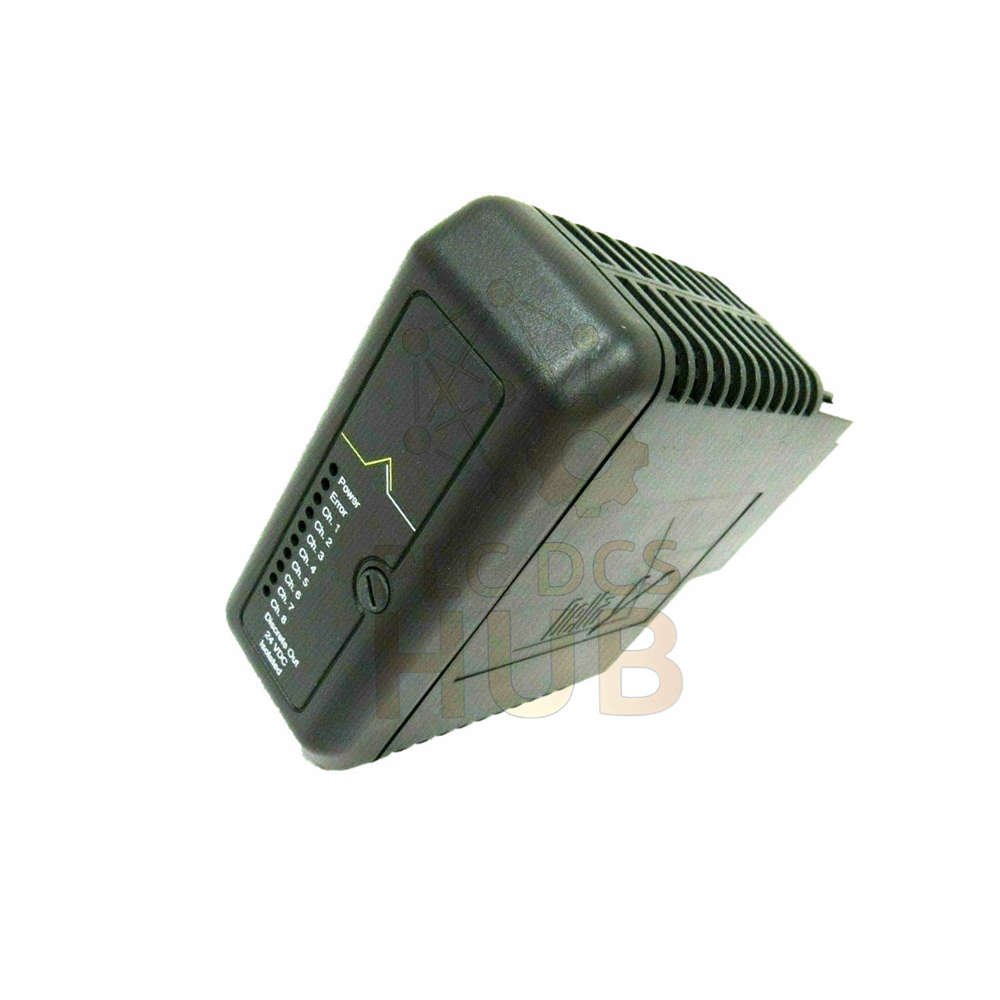

VE4002S1T1B2 | 8-Channel Digital Output Card
- Brand: Emerson
- Series: DeltaV
- Model Codes: VE4002S1T1B2 / KJ3001X1-BG1 / 12P0557X162
- Type: DO 8-Channel 24VDC Isolated
- Origin: USA
- Warranty: 12 Months
Compact output card for stable field control.
Built for safe switching and long service life.
Electrical Performance
- LocalBus Power: 12VDC at 150mA
- Field Voltage: 60VDC Max
- Output Current: 1A per Channel
- Channels: 8 Isolated Outputs
- Output Type: Sourcing
- Isolation Rating: Channel to Channel Isolation
- Response Time: Fast Switching
- Short Circuit Protection: Yes
Environmental & Protection
- Operating Temp: 0°C to 60°C
- Humidity: 5% to 95% Non-Condensing
- Shock: 10g, 11ms Half Sine
- Vibration: 1mm p-p (5–16Hz), 0.5g (16–150Hz)
- Air Quality: ISA-S71.04 Class G3
- IP Rating: IP20
- Terminal Block Key: B5
Configuration Breakdown
- VE4002S1T1B2
- Code Group
- KJ3001X1-BG1 → Hardware ID
- 12P0557X162 → Manufacturing Code
- Output Section
- 8 Independent Channels
- 24VDC Control
- 1A per Output
- Power Layer
- 12VDC LocalBus
- 150mA Draw
- Protection Layer
- Electrical Isolation
- Industrial Noise Resistance
- Short Circuit Guard
- Code Group
Main Advantages
- True channel isolation
- High load capacity 1A each
- Stable 24VDC switching
- Low LocalBus power use
- Designed for harsh air class G3
- Easy plug-in replacement
- Long field reliability
Logistics & Support
- Warranty: 12 Months
- 100% Tested Before Shipment
- Courier: FedEx / UPS / DHL
- Fast Global Delivery
Contact:
+86 158 8020 0923
Professional FAQ
1. Can this card drive solenoids directly?
Yes. Each channel supports up to 1A. Check load voltage first.
2. When should I choose an isolated output card?
Choose isolated type when loads are far or noise is high.
3. What is a common field issue?
Wrong terminal key position. Always confirm B5 before install.
4. How do I size the power supply?
Add all channel current. Include 20% safety margin.
5. Is it safe for humid areas?
Yes. It supports up to 95% humidity without condensation.
