Description
Smart DC Module for Solenoid Control

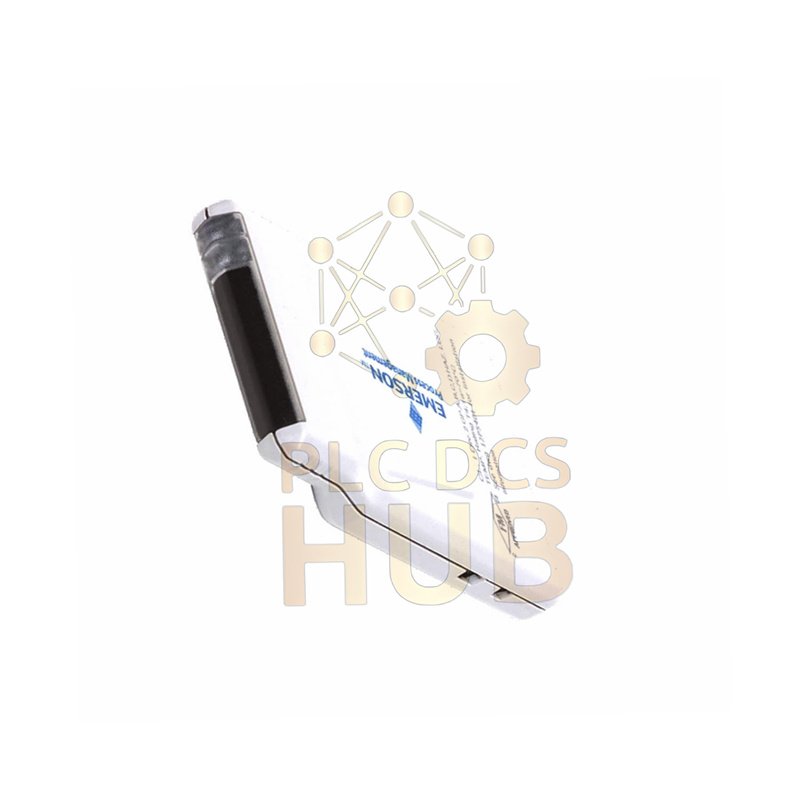

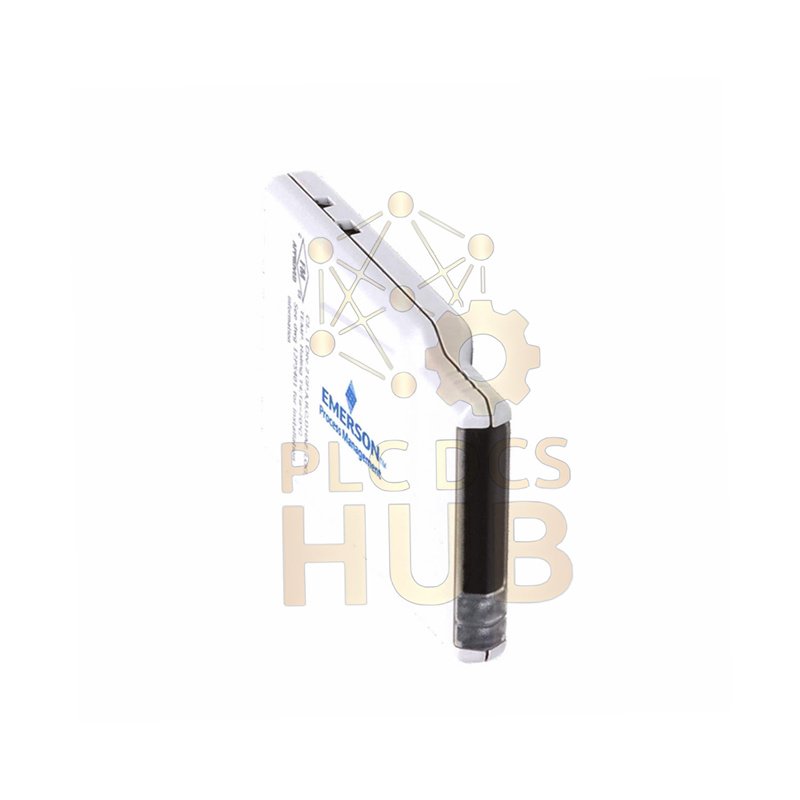

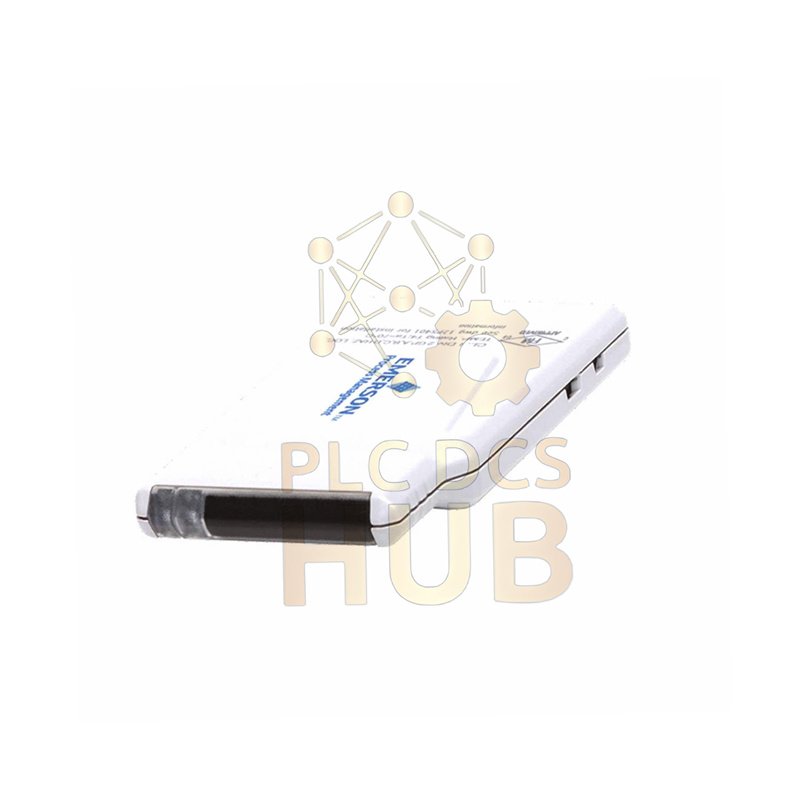

This is the Emerson SE4302T01 DC High-Side Module. It controls 24V solenoid valves. The module is reliable and precise. It fits on standard DIN rails. Use it in many factory machines.
Product Specifications
- Brand & Model: Emerson SE4302T01
- Type: DC High-Side Output Module
- Output Rating: 100 mA continuous @ 24V DC
- Load Type: 24V DC Solenoid Coils
- Leakage Current: Maximum 1 mA off-state
- Line Detection: Detects short/open circuits
- Circuit Protection: 200 mA current limiting
- Power Need: 116 mA max @ 24V DC
- Pulse Width: Minimum 50 µsec
- Pulse Rate: 0.1 Hz to 10 KHz
- Temp Range: -20°C to +60°C operation
- Humidity: 0% to 95% non-condensing
- Mechanical Life: 10 million cycles
- Electrical Life: 1 million cycles
- Mounting: DIN rail or panel
- Weight: 250 grams
- Warranty: 12 months coverage
Main Features
- Controls 24V DC solenoid valves precisely
- Detects wiring faults for quick maintenance
- Integrated protection prevents damage
- Works in wide temperature conditions
- Long life with 10 million mechanical cycles
- Low off-state leakage saves energy
- Easy DIN rail mounting saves space
- Supports pulse and continuous outputs
Fault Detection Details
- Short Circuit: Load less than 50 Ohms
- Good Status: Load 240 Ohms to 10k Ohms
- Open Circuit: Load over 20k Ohms
- Test Timing: 200 µsec line fault test
- Field Protection: Wiring disconnect feature
- Heat Control: Low power dissipation
Shipping Information
- One Emerson SE4302T01 module
- Complete installation guide
- All mounting accessories included
- Secure protective packaging
- Fast FedEx, UPS, DHL shipping
- Real-time tracking service
- 12 month product warranty
Expert Questions & Answers
What does this module control?
It controls 24V DC solenoid coils. It is perfect for valve and actuator control.
How does line fault detection help?
It finds short or open wires instantly. This prevents machine downtime.
What is the output current limit?
The continuous output is 100 mA. The protection limits to 200 mA.
Can I use pulse signals?
Yes. It supports pulses from 0.1 Hz to 10 KHz. Minimum width is 50 µsec.
How do I choose the right module?
Check your solenoid voltage (24V DC) and current (under 100 mA). Ensure your cabinet temperature is within range.
