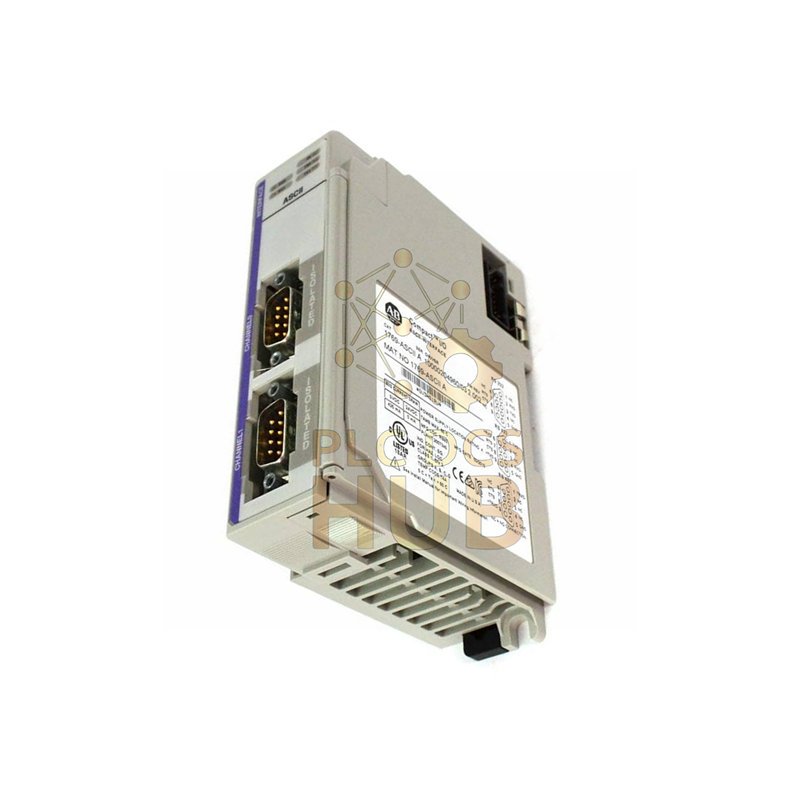

Allen-Bradley 1769-ASCII: Advanced ASCII Communication Module
The 1769-ASCII from Allen-Bradley/Rockwell Automation enables seamless connectivity with ASCII-compatible devices. This versatile communication module integrates perfectly with CompactLogix and MicroLogix 1500 control systems.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1769-ASCII
- Product Type: Specialty Communication Module
- Communication Ports: Two (2) independent configurable ASCII ports
- Interface Types: RS-232, RS-422 (full duplex), RS-485 (half duplex)
- Connector Type: DB-9 male serial ports
- Signal Voltage: 3-25V DC active, -3 to -25V DC inactive
- Backplane Current: 425mA at 5V DC
- Power Consumption: 2.13 Watts maximum
- Isolation Voltage: 30V continuous, tested at 710V DC for 60 seconds
- Thermal Dissipation: 7.3 BTU/hour
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Humidity Range: 5-95% non-condensing
- Vibration Resistance: 5g at 10-500 Hz
- Shock Resistance: 30g operating, 50g non-operating
- Dimensions: 87 × 34 × 118 mm (3.43 × 1.34 × 4.65 in)
- Weight: 0.18 kg (0.40 lb)
- Handshaking: RTS/CTS hardware handshaking support
- Compatible Controllers: CompactLogix and MicroLogix 1500 series
Package Contents
- 1769-ASCII Communication Module
- Comprehensive installation documentation
- Required mounting hardware for secure installation
Warranty: This product includes a 12-month warranty against manufacturing defects.
