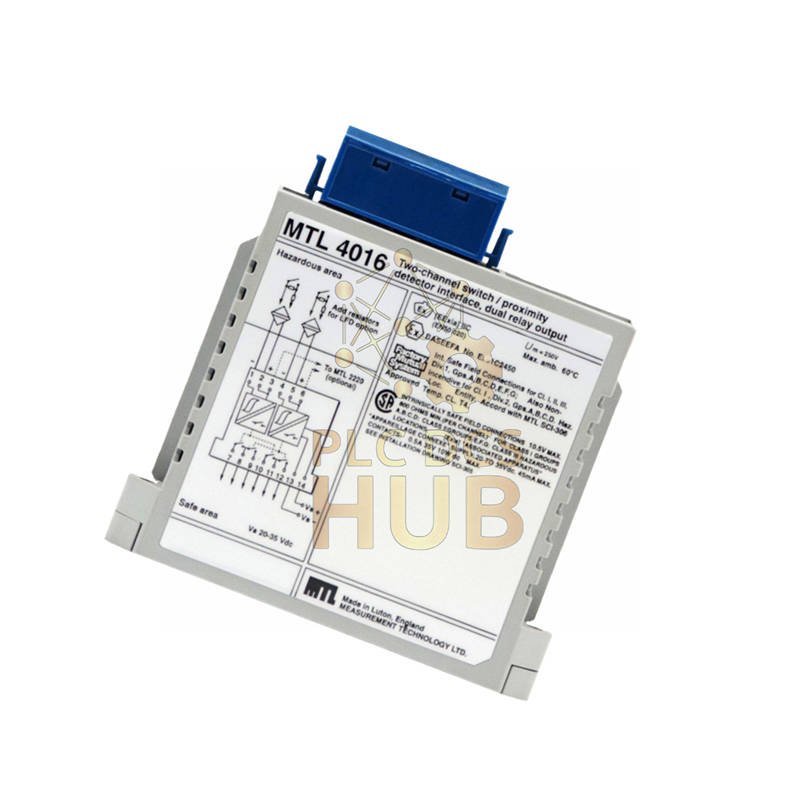

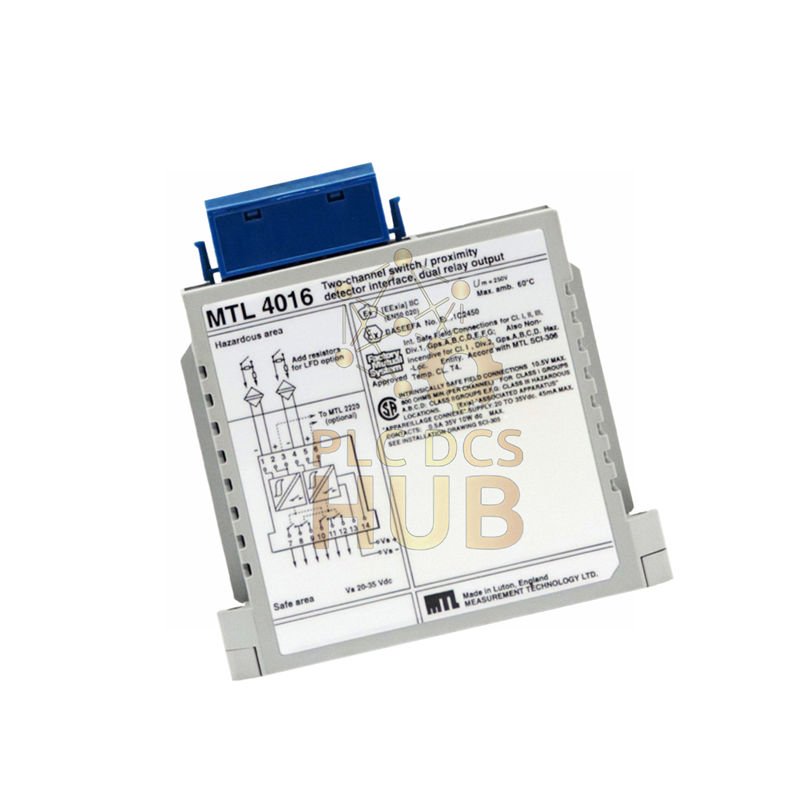

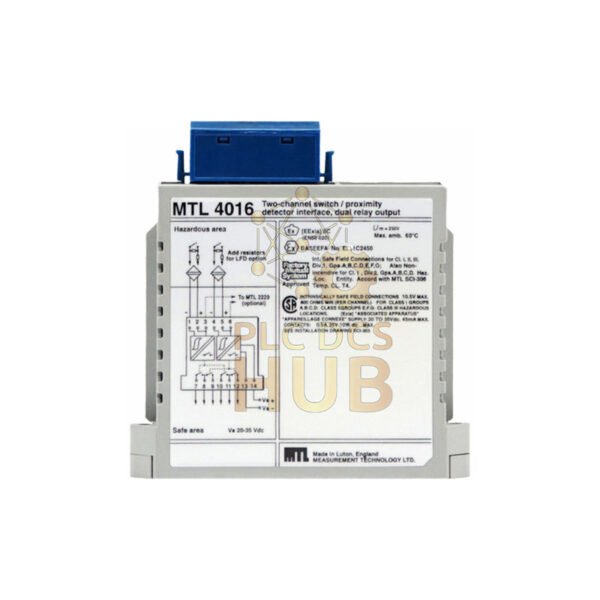

MTL4016 Dual Interface: Connect Sensors to Two Systems Safely
The MTL4016 lets two switches or sensors in hazardous areas control four safe-area outputs. It sends each sensor signal to two separate systems. Perfect for control and safety shutdown systems.
Technical Specifications
Brand & Model: MTL MTL4016 Dual Interface
Input Channels: 2 independent sensor inputs
Outputs: 4 reed relay outputs (2 per channel)
Sensor Voltage: 7-9V DC
Contact Rating: 0.5A, 35V DC per relay
Response Time: < 2ms
Fault Detection: Open and short circuit detection
Power Supply: 20-35V DC
Power Consumption: 50mA at 24V
Isolation: 250V AC
Operating Temperature: -20°C to +70°C
Easy Installation
Connect your hazardous-area sensors to the input terminals. Connect your two safe-area systems to the four output relays. Use the top switches to set phase reversal. The MTL4016 is ready to monitor and protect.
Frequently Asked Questions
Q1: Why two outputs per sensor?
A1: So you can send the same signal to both a control system and a safety shutdown system.
Q2: What is phase reversal?
A2: It lets you choose whether the relay activates when the sensor is on or off.
Q3: What types of sensors work?
A3: Simple switches or NAMUR proximity sensors work with both channels.
Q4: How does it find wiring problems?
A4: It monitors current – very low current means broken wires, very high current means shorts.
Q5: Can I add ground fault detection?
A5: Yes, by connecting optional MTL4220 earth leakage detectors to terminals 3 and 6.
Shipping & Package
Includes one MTL4016 unit. We ship worldwide using FedEx, UPS, and DHL.
Your Guarantee
This product comes with a 12-month warranty for quality assurance.
