FE6070H 6000 Series HMI by Flexem – High-Value 7-Inch

Description

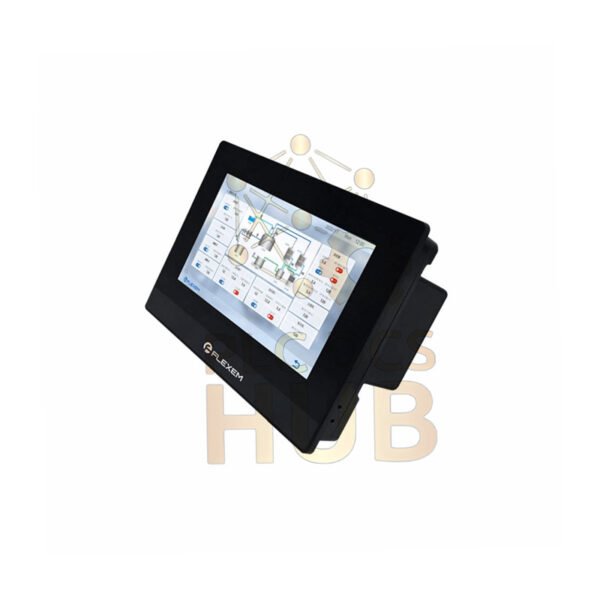

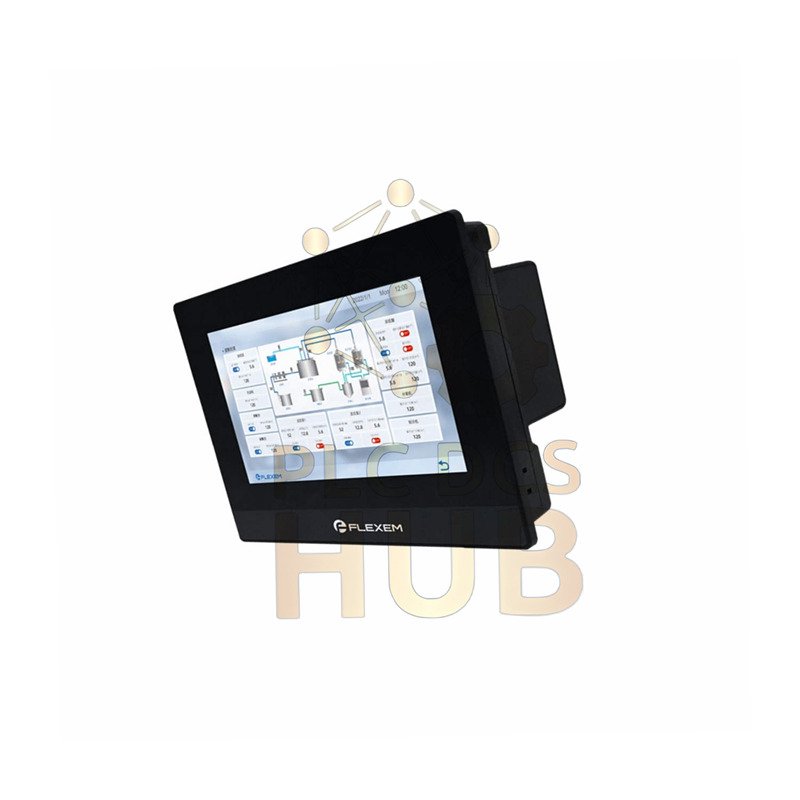

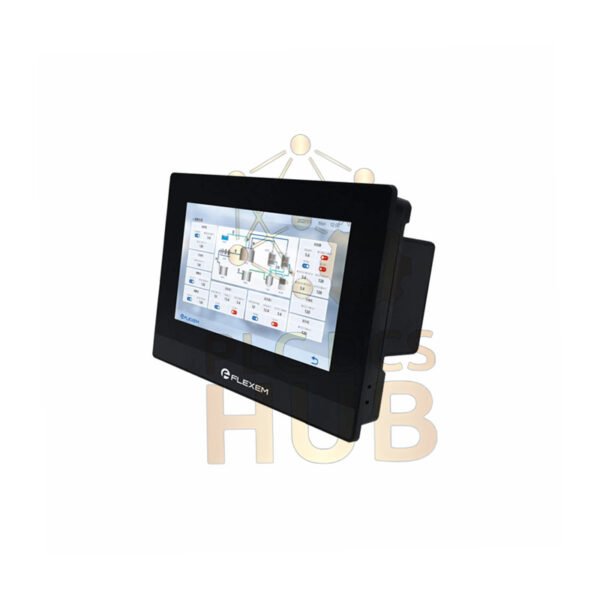

Meet The Flexem FE6070H HMI

• The Flexem FE6070H is a smart industrial touch screen.
• It is part of the advanced 6000 Series for the Industrial IoT.
• This unit offers great value and high reliability.
• Its tough plastic shell is made for factory floors.
• You can easily add IoT features with a simple module.
• Connect to cloud services for complete data visibility.

Detailed Technical Specifications

• Brand & Model: Flexem FE6070H Industrial HMI
• Screen Size & Clarity: 7-inch TFT LCD, 1024 x 600 resolution
• Display Brightness: 350 cd/m² for good visibility
• Touch Technology: Durable 4-wire resistive touchscreen
• Processor Options: V2: 600 MHz or V3: 1.2 GHz for more power
• Memory & Storage: V2: 128MB+128MB / V3: 4GB+256MB
• Network Connection: 1x or 2x 10/100 Mbps Ethernet ports
• USB Ports: 1x USB Host and 1x USB Slave for connectivity
• Serial Communication: COM1 (RS232/485/422), COM2 (RS485), COM3 (RS232)
• Power Requirements: DC 24V with a wide 9V to 28V input range
• Typical Power Use: Low consumption, under 10 Watts
• Environmental Rating: Front panel rated IP65 for dust/water protection
• Operating Climate: 0°C to 50°C temperature range
• Humidity Tolerance: 10% to 90% relative humidity, non-condensing
• Robust Construction: High-strength engineering plastic enclosure
• Physical Dimensions: 204mm W x 145mm H x 33.8mm D
• Panel Cutout: 192mm x 138mm for easy mounting
• Product Weight: Light at approximately 560 grams

Top Reasons To Choose This HMI

• Cost-Effective: High performance for a very competitive price.
• Future-Ready IoT: Simple module upgrade path for smart features.
• Easy To Program: Multiple download methods via USB or Ethernet.
• Wide Voltage Input: Works reliably even with unstable power.
• Slim Profile: Fits into tight spaces on machines and panels.

Quick Mounting Guide

• Prepare a panel cutout of 192mm by 138mm.
• Insert the FE6070H from the front of the panel.
• Secure it using the provided mounting clips.
• Connect the 24V DC power wires and your communication cables.
• Power on and load your application project.

Software & Compatibility

• Program with common HMI development software.
• Communicates with most PLCs using standard drivers.
• The optional IoT module enables cloud platform connectivity.
• Check compatibility with your specific controller brand.

Product Certifications

• CE Marked for health, safety, and environmental protection.
• RoHS Compliant, following restrictions on hazardous substances.
• Designed to meet industrial electromagnetic compatibility standards.

What’s In The Box

• 1 x Flexem FE6070H HMI Unit (V2 or V3 as selected)
• 1 x Set of Mounting Clips
• 1 x Quick Start Guide

Warranty & Shipping Info

• This product is covered by a 12-month replacement warranty.
• We ship globally using reliable carriers: FedEx, UPS, and DHL.
• You will receive a tracking link once your order is dispatched.

Common Application Uses

• Machine operation panels for packaging and assembly.
• Basic process visualization in small to medium systems.
• Building management system interfaces.
• IoT gateway and data collection point.

Frequently Asked Questions

• Q: Should I choose the V2 or V3 hardware version?
• A: Choose V3 for larger applications or faster graphics. V2 is perfect for simpler tasks.
• Q: Can I use it in an outdoor enclosure?
• A: Yes, if the enclosure protects it from direct rain, sun, and temperatures above 50°C.
• Q: How do I transfer my project to the screen?
• A> The easiest way is using a USB flash drive on the Host port.
• Q: What if my power supply is only 12V?
• A: That is fine. The unit works from 9V to 28V DC.
• Q: The screen seems less bright than expected.
• A: Check the brightness setting in the system parameters menu. Ensure the protective film is removed.
