Description

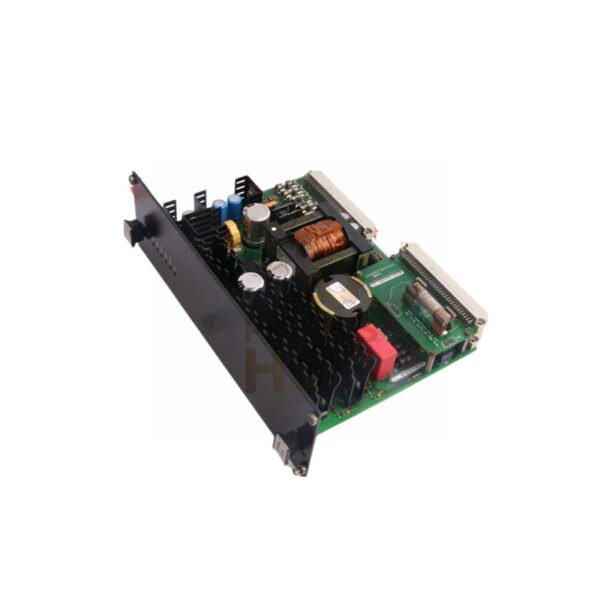

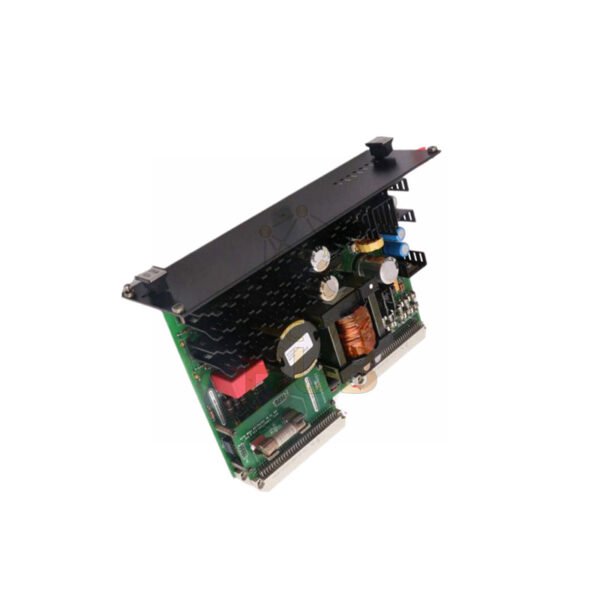

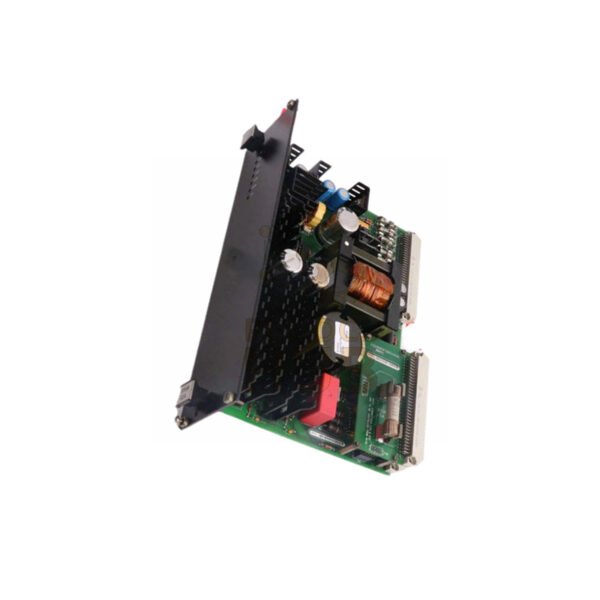

GE IS200EPSMG2A Power Supply Module
The IS200EPSMG2A delivers reliable power for EX2100 regulator control systems. This robust module converts DC link voltage to multiple output voltages. It features advanced buck regulator and push-pull inverter technology. The IS200EPSMG2A ensures stable operation in demanding industrial environments.
Technical Specifications
- Brand: General Electric
- Model: IS200EPSMG2A
- Series: EX2100 Excitation Control
- Product Type: Power Supply Module
- Input Voltage: 125 V DC
- Output Voltages: +5V, ±15V, +24V DC
- Contact Wetting: +70V DC Isolated
- AC Output: 20V AC for IGBT Gate
- High Voltage: ±55V DC for Ground Detection
- Dimensions: 15.9 cm x 17.8 cm
- Weight: 2 pounds
- Temperature Range: -30°C to +65°C
- Mounting: EPBP or ERBP Backplanes
System Integration
Simplex Systems: One module in ERBP
Redundant Systems: Two modules required
Power Distribution: Connects to EPDM module
External Modules: Powers fans, relays, detectors
Shipping & Protection
Fast worldwide shipping via FedEx, UPS, DHL. All orders include 12-month warranty. Quality tested before shipment.
Expert FAQ
- What input voltage does this module require?
- It operates with 125 V DC input from the EPDM module.
- How many output voltages does it provide?
- It delivers +5V, ±15V, +24V, +70V DC and 20V AC outputs.
- Where is it mounted in the system?
- It mounts in EPBP or ERBP backplanes in control cabinets.
- What is the contact wetting voltage?
- It provides isolated +70V DC for contact wetting applications.
- Is this module backward compatible?
- No, the IS200EPSMG2A is not backward compatible with older versions.
