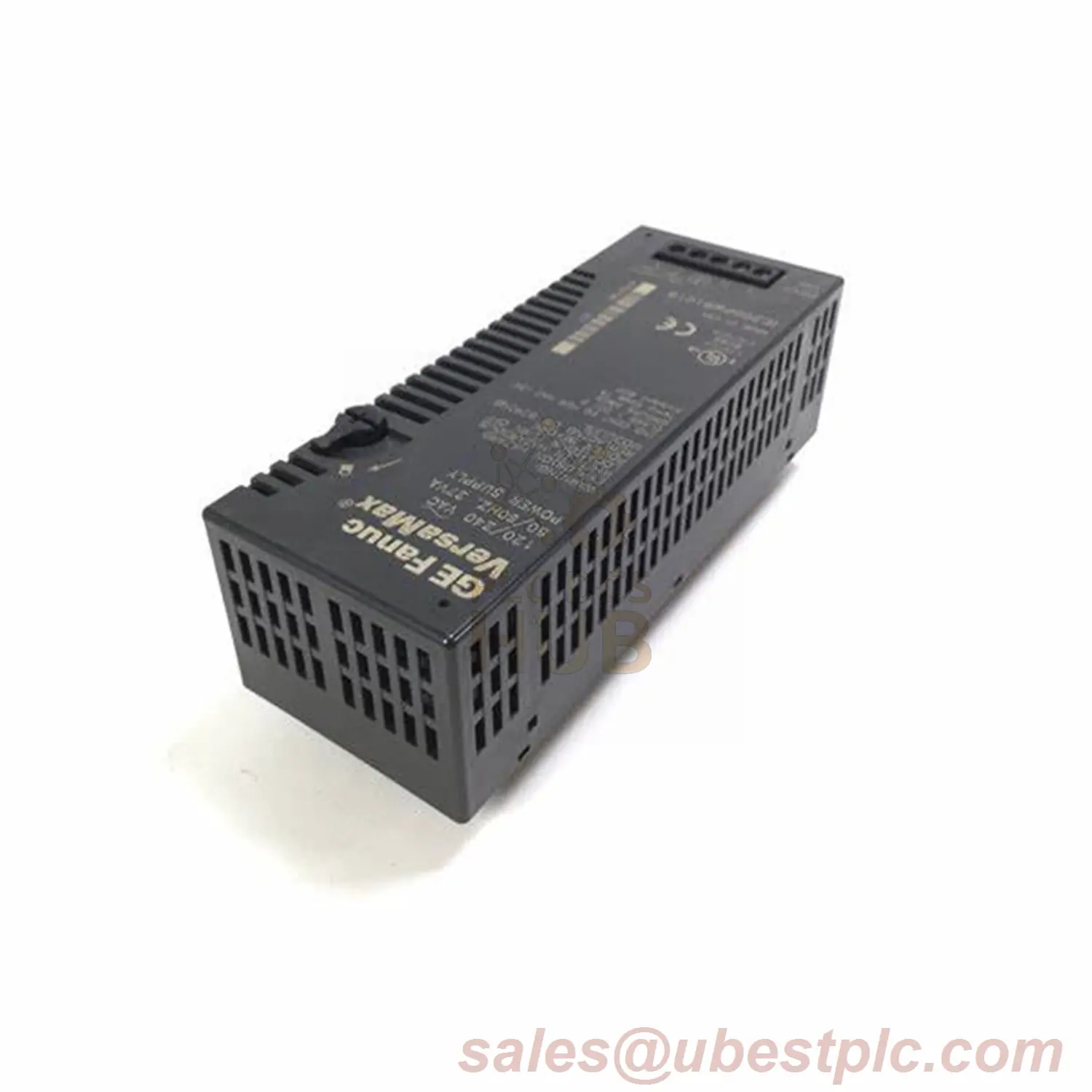

GE IC200PWR102 Power Supply: Reliable Backplane Power for Industrial Systems
Key Features
- Dual voltage input (120V/240V AC)
- Provides both 3.3V and 5V DC outputs
- Up to 1.5A total power for backplane
- 20ms power holdup during interruptions
- Short circuit and overload protection
Technical Specifications
| Input Voltage | 85-132VAC (jumper in) 176-264VAC (jumper out) |
|---|---|
| Frequency | 47-63 Hz |
| Output Voltage | 3.3VDC + 5VDC |
| Max Current | 1.5A total 1.0A max on 3.3V |
| Power Rating | 27VA |
| Holdup Time | 20ms |
Power Distribution Examples
- Example 1: 1.0A @ 3.3V + 0.5A @ 5V
- Example 2: 0.8A @ 3.3V + 0.7A @ 5V
- Example 3: 0.5A @ 3.3V + 1.0A @ 5V
Installation Options
- Main power supply for CPU/NIU modules
- Supplemental power on Booster Carriers
- Easy voltage selection via jumper
Protection Features
- Automatic overload shutdown
- Short circuit protection
- Over-temperature safety
Shipping & Warranty
- 12-month product warranty
- Fast global delivery options:
- FedEx International Priority
- UPS Worldwide Express
- DHL Express Worldwide
- Order processing within 24 hours
Technical FAQ
Q: Can I use both voltages at the same time?
A: Yes, but total current must stay under 1.5A
Q: How do I select 120V or 240V input?
A: Install jumper for 120V, remove for 240V
Q: What happens during power loss?
A: 20ms holdup time maintains power briefly
Q: Is this compatible with all VersaMax systems?
A: Works with CPU, NIU and I/O modules
