Description

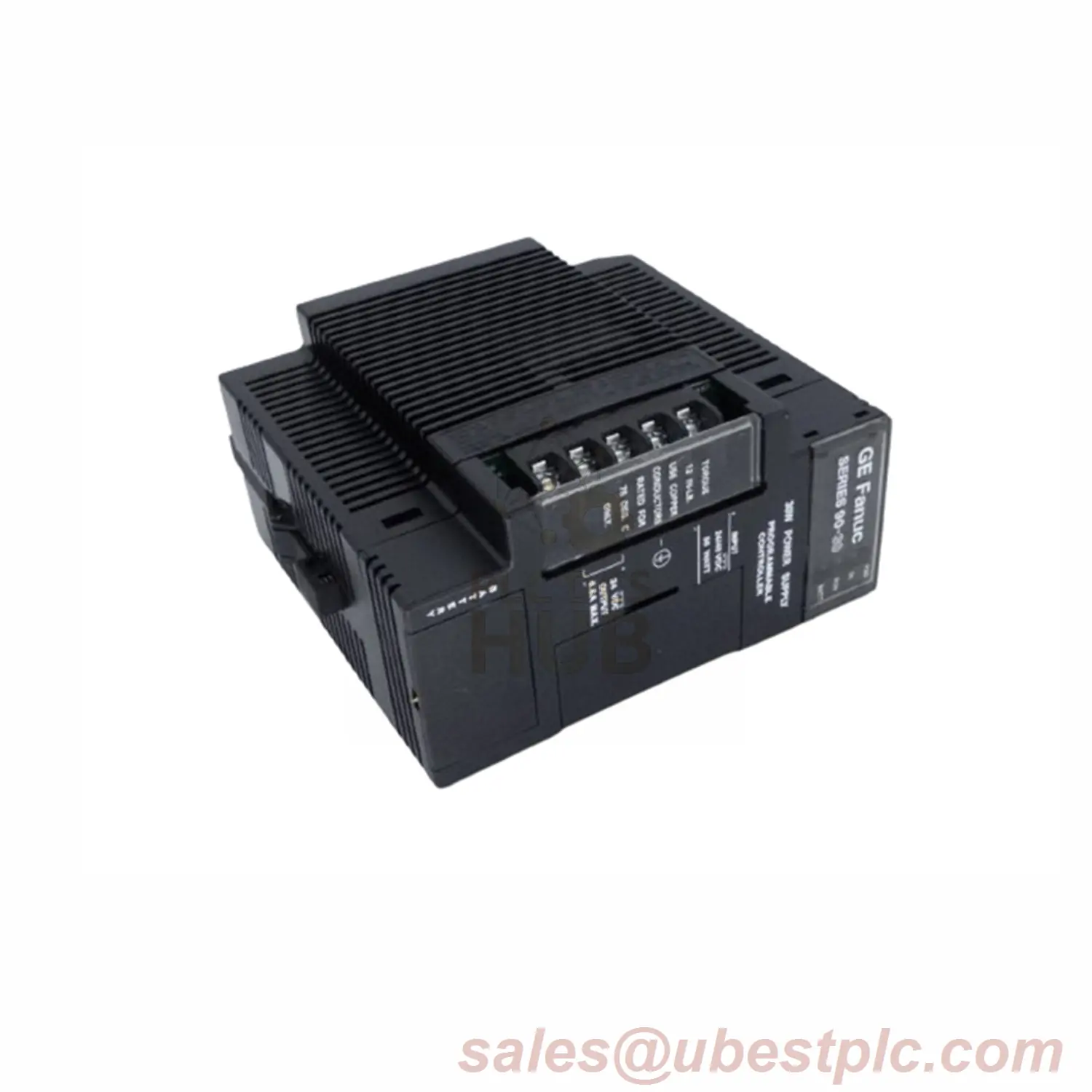

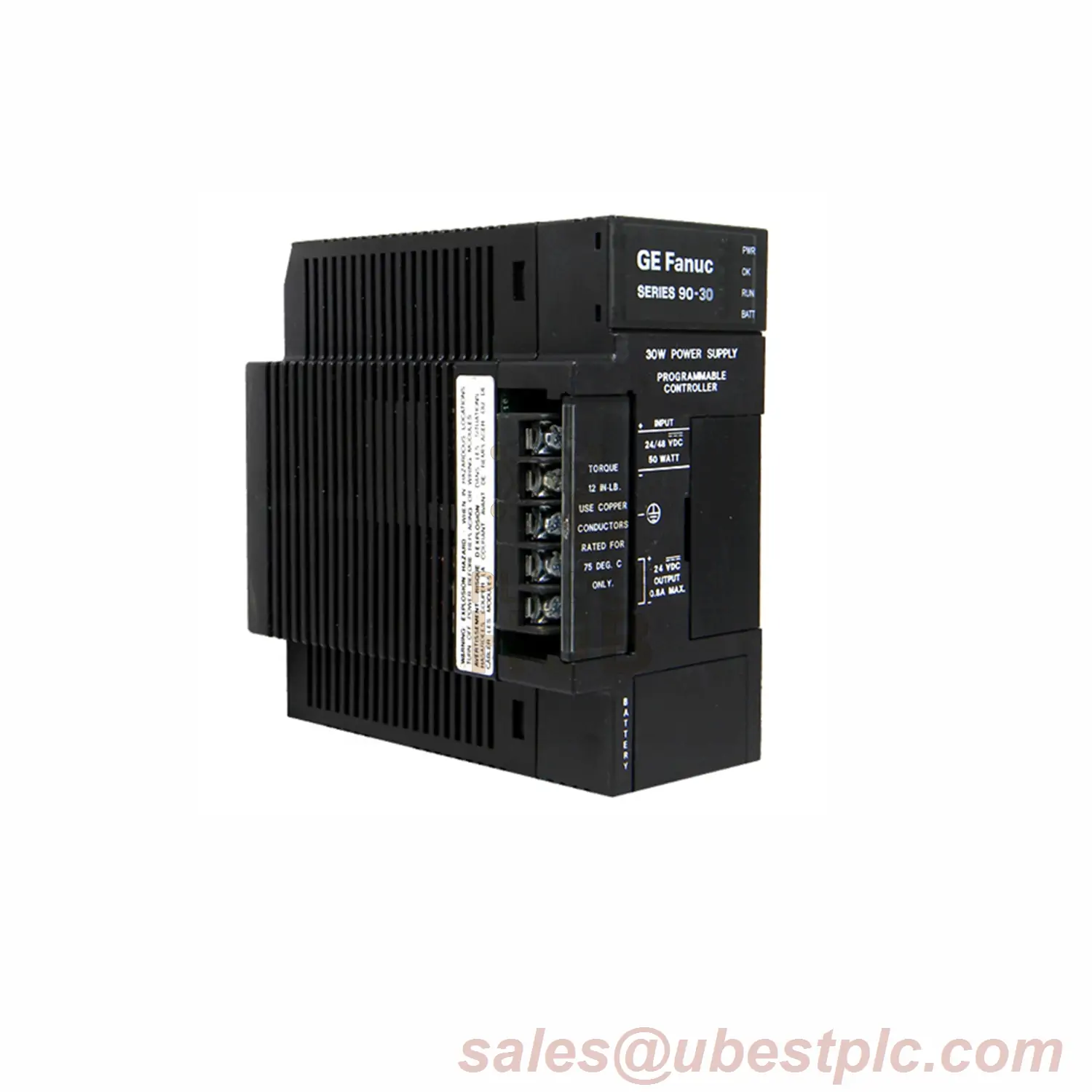

GE Fanuc IC693PWR330 High Capacity Power Supply
This industrial-grade power supply delivers 30W dedicated +5VDC power for demanding Series 90-30 PLC systems. Designed for applications needing higher current than standard models.
Technical Specifications
Brand: GE Fanuc
Model: IC693PWR330
Series: Series 90-30
Input Voltage: 85-264VAC / 100-300VDC
+5VDC Output: 30W maximum
+24VDC Outputs: 5W (Relay) + 20W (Isolated)
Total Output: ≤30W combined
Voltage Stability: 5.0-5.2VDC (+5V), 24-28VDC (Relay)
Protections: Overvoltage, Overcurrent
Holdup Time: >20ms
Installation Guide
- AC Connection: 200/240VAC → Top 3 terminals
- DC Connection: 125VDC ±/→ Top 2 terminals (non-polarized)
- Mount vertically in power supply slot
- Maintain 50mm clearance above/below unit
Diagnostics & Maintenance
- Check status LED: Green=operational, Red=fault
- Measure output voltages quarterly
- Clean ventilation slots annually
- Verify total load ≤30W during commissioning
Packaging & Shipping
- Includes: Power supply, manual
- Warranty: 12 months
- Carriers: FedEx, UPS, DHL
Industry Applications
- High-density I/O racks
- PLC systems with multiple expansion modules
- Manufacturing control cabinets
- Process automation systems
FAQ
Q: Can I use both AC and DC inputs simultaneously?
A: No – select either AC OR DC power source
Q: Is the +24V isolated output regulated?
A: Yes, maintains 24.5-28VDC under load
Q: What PLC racks support this?
A: Series 90-30 5-slot, 10-slot, and 16-slot bases
