Product Description

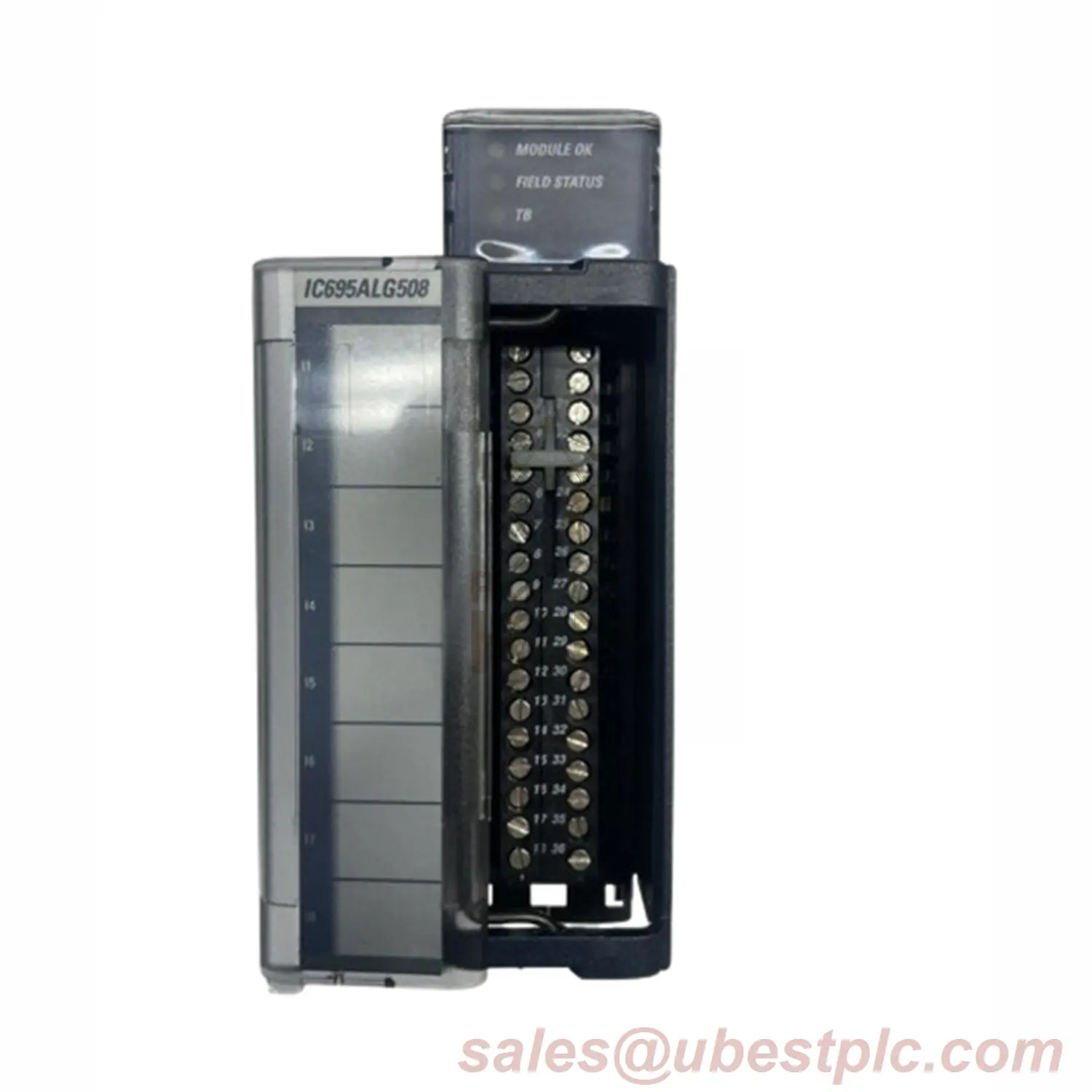

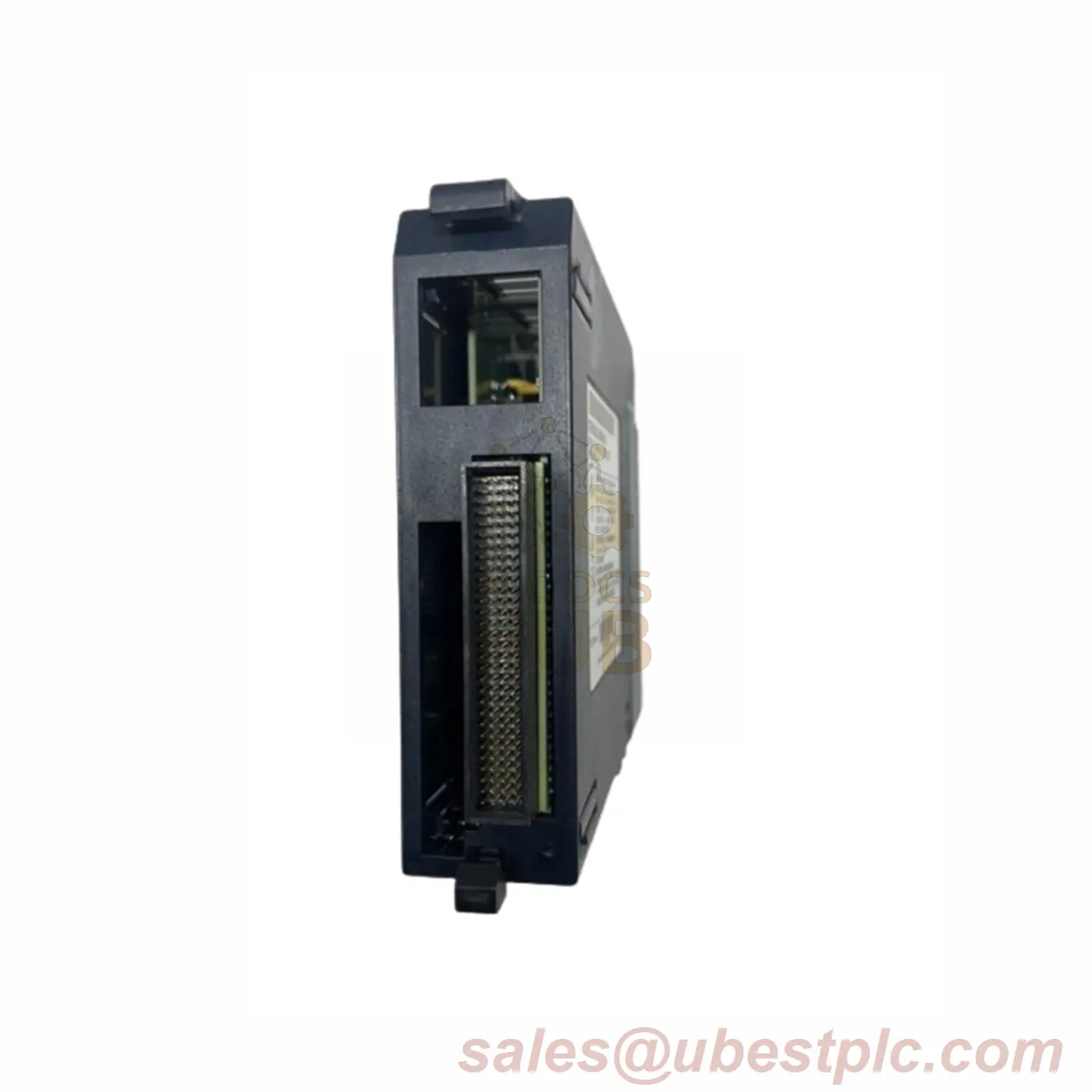

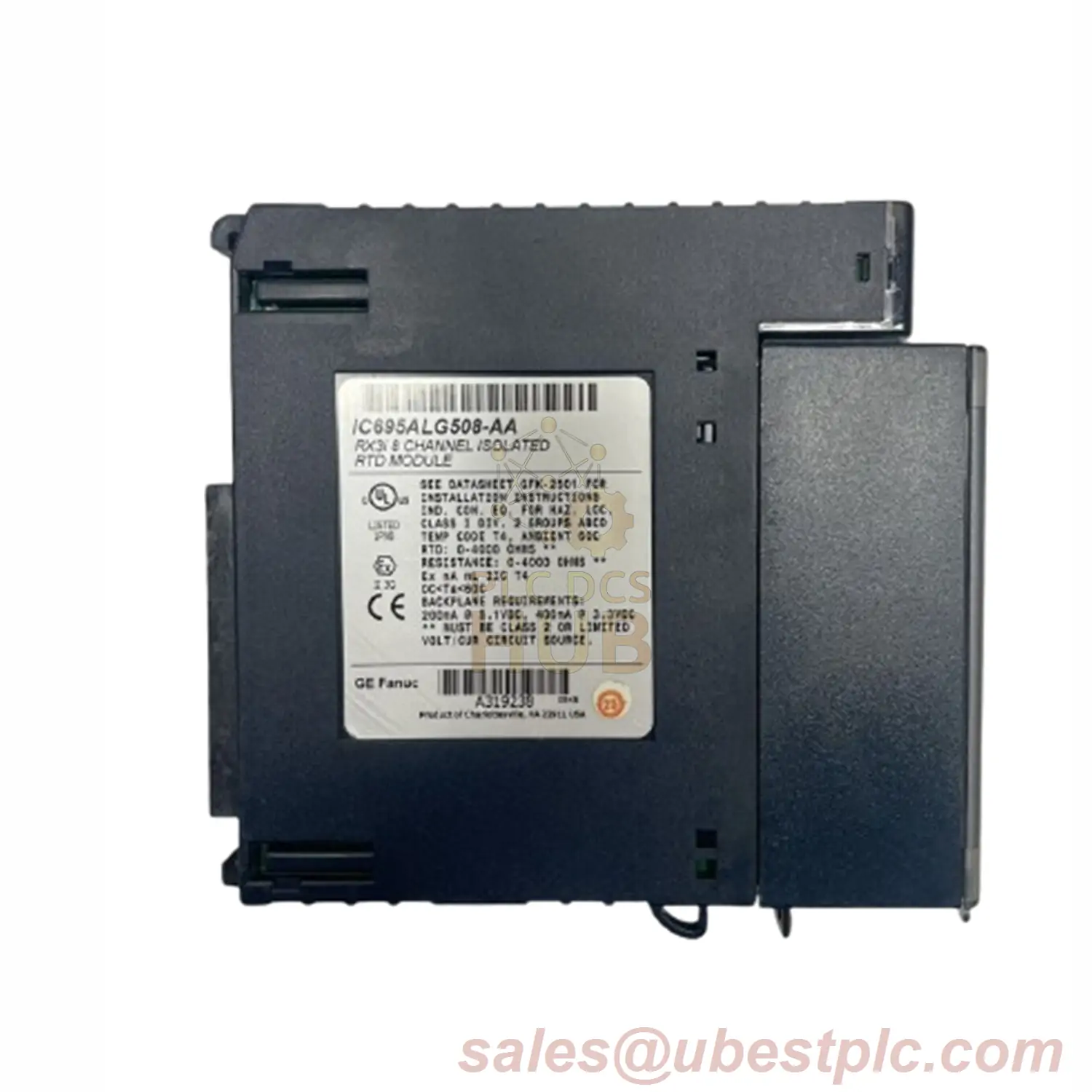

The IC695ALG508 by Emerson Automation (formerly GE Fanuc) delivers 8 isolated RTD input channels for the PACSystem RX3i. Ideal for industrial automation, it supports Platinum, Nickel, Copper, and Nickel-Iron RTDs, plus direct resistance inputs. Features 2/3/4-wire wiring and adjustable filters for reliable measurements.
Technical Data
- Brand: Emerson Automation
- Model: IC695ALG508 (Full suffix: IC695ALG508-XX)
- Channels: 8 isolated differential
- RTD Types: Platinum 385/391.6 (50–1000Ω), Nickel 618 (100–1000Ω), Copper 426 (10–100Ω)
- Input Range: 0–4200Ω (6 ranges)
- Accuracy: Complies with ITS-90
- Output Signal: 16-bit integer or 32-bit floating-point
- Operating Temp: 0°C to 60°C
Installation Guide
- Use IC694TBB032 (box-style) or IC694TBS132 (spring-style) terminal blocks.
- Shielded wiring recommended for noise reduction.
- Mount in PACSystem RX3i Universal Backplane.
Compatibility
- Works with RX3i PLC systems.
- Requires IC694TBB/IC694TBS terminal blocks.
Package Contents
- IC695ALG508 RTD Module
- Terminal blocks sold separately.
Warranty & Shipping
- 12-month warranty.
- Shipped via FedEx, UPS, or DHL.
Application Examples
- ???? Steel Mills: Monitor furnace temps with Platinum RTDs.
- ⚡ Power Grids: Track transformer resistance.
- ???? Labs: Precision measurements using Copper sensors.
