Description

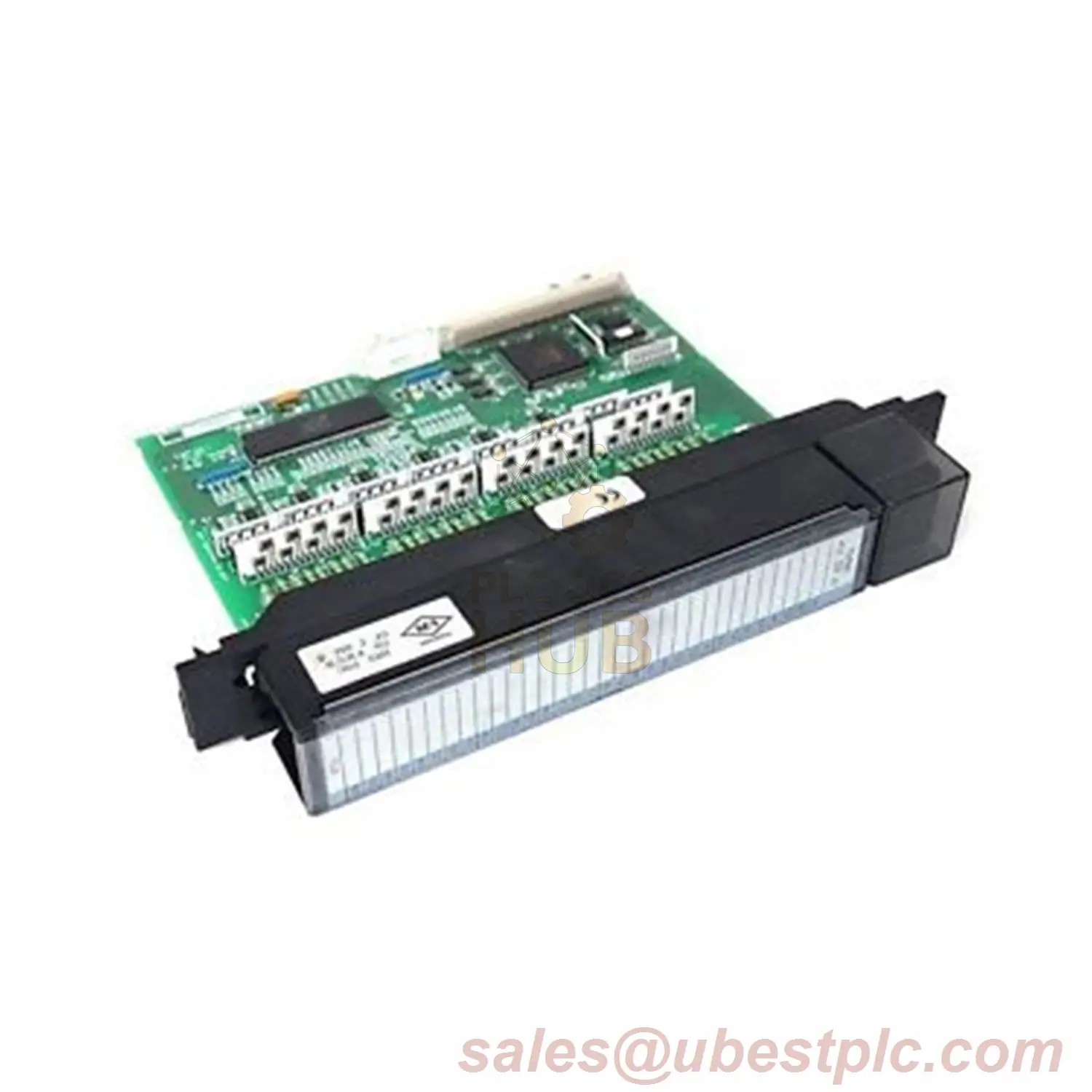

GE Fanuc Discrete Input Module
⚡ IC697MDL653 32-CHANNEL INDUSTRIAL INPUT | ±30VDC RANGE | POSITIVE/NEGATIVE LOGIC
Core Specifications
- Channels: 32 Isolated Inputs (4 Groups of 8)
- Voltage Range: -3VDC to +30VDC
- Current: 10mA per Channel @24VDC
- Logic: Positive/Negative Configurable
- Isolation: 1500V Input-to-Backplane
Key Features
- Selectable Filter Delay: 1ms or 10ms
- LED Status Indicators per Channel
- No DIP Switches/Jumpers Required
- VME C.1 Backplane Compatibility
- 500V Isolation Between Groups
Industrial Applications
- Factory Machine Safety Systems
- Power Plant Control Panels
- Packaging Line Sensors
- Water Treatment Valve Monitoring
- Conveyor Belt Limit Switches
Installation Guide
- Power Consumption: 300mA @5VDC
- Wiring: 24VDC Nominal (Supports -3V to +30V)
- On-State Threshold: 13.5VDC Minimum
- Group Commons for Flexible Wiring
Compatibility Note
- Optimized for GE Series 90-70 PLCs
- Limited Features with Non-GE Systems
- Requires Windows 95/ME Configuration Tools
Package Includes
- IC697MDL653 Input Module
- Installation Documentation
- 12-Month Warranty
Global Shipping
- FedEx | UPS | DHL
- Delivery: 3-5 Business Days
