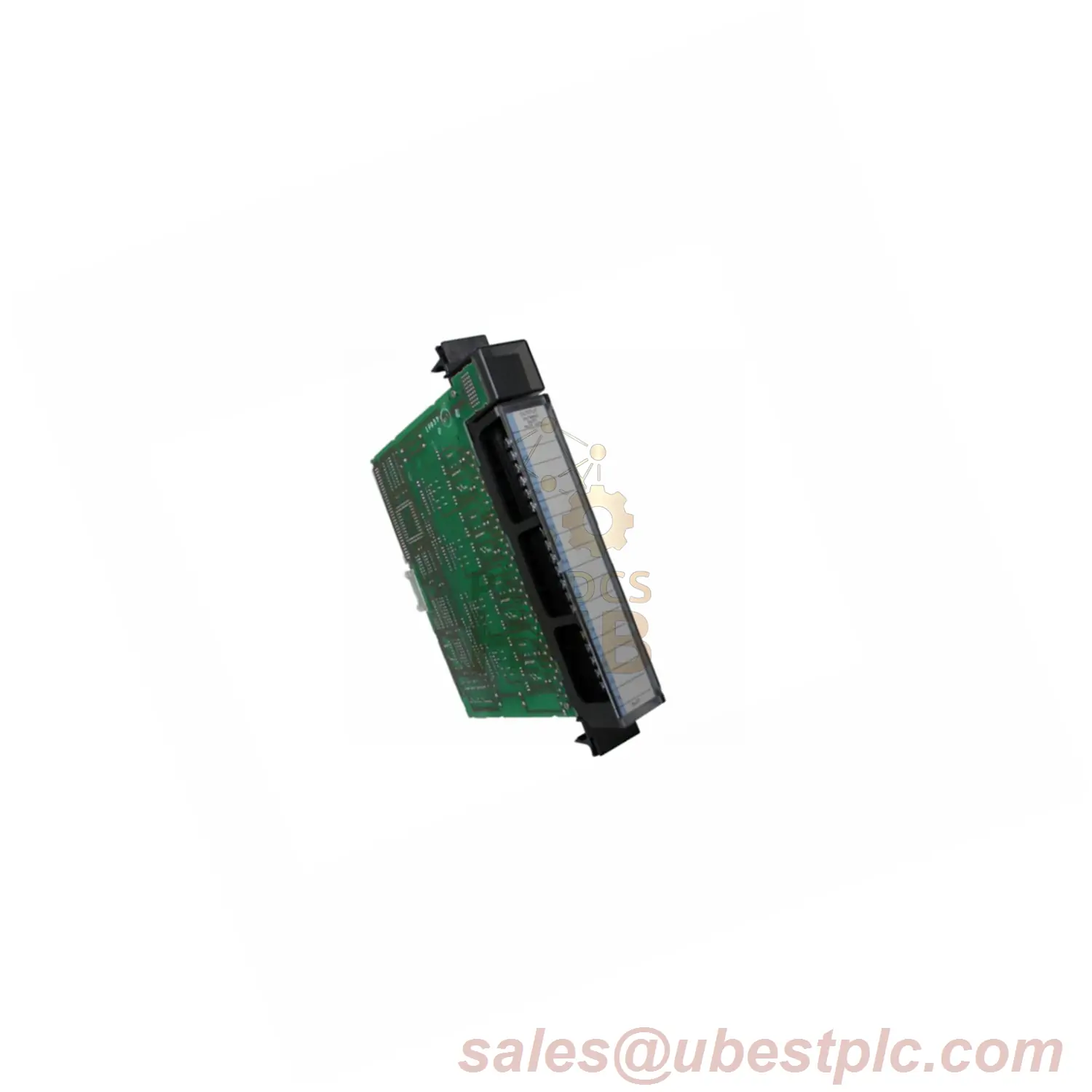

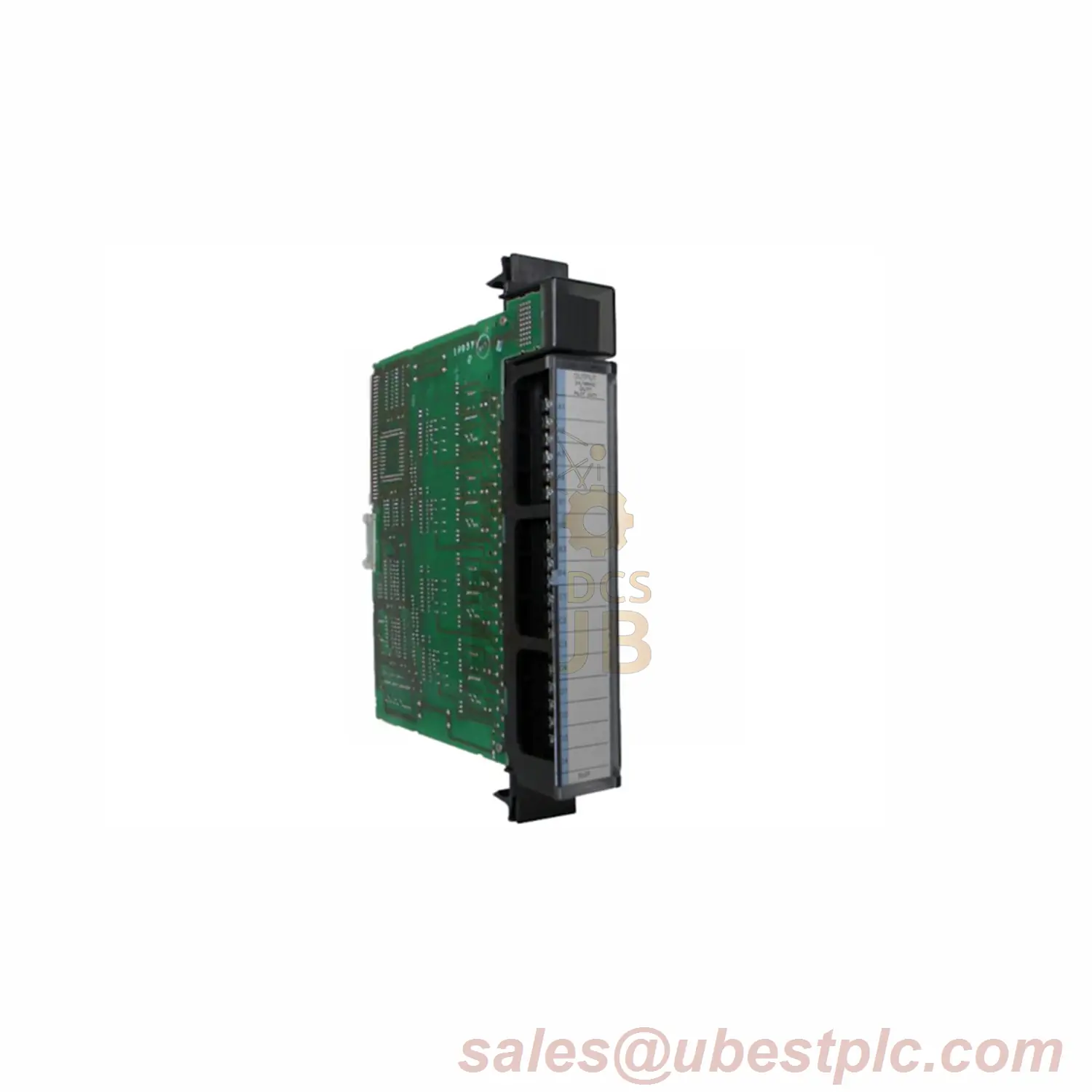

GE Fanuc IC697MDL740 Discrete Output Module Series 90-70

Description

GE Fanuc IC697MDL740 Discrete Output Module – High-Speed Power Control

⚡ Core Specifications

Brand: GE Fanuc
Model: IC697MDL740
Output: 16 channels (24-48VDC)
Current: 2A/point · 4A/group
Response: 2ms ON/OFF speed

???? Technical Highlights

• 1500V isolation voltage protection
• 20-60VDC operating range
• 20A inrush current (20ms burst)
• 0.8V max voltage drop
• Fuse status LED indicators

???? Industry Applications

Auto Manufacturing: Controls 50+ welding robots
Beverage Plants: Drives 10k cans/hour filling lines
HVAC Systems: Manages industrial chillers

???? Installation Guide

1. Install in Series 90-70 rack
2. Connect 24-48VDC power (±10%)
3. Wire outputs using 12AWG cables
4. Configure via Windows PC software
5. Check green status LEDs

⚠️ Safety Notes

• Max 60VDC input
• Maintain 40mm clearance
• Replace every 3-5 years
• Use conformal coating in damp areas
• Anti-mismount key prevents errors

???? Global Shipping

FedEx Priority: 3-5 business days
DHL Express: 2-4 business days
UPS Worldwide: 4-7 business days

???? Warranty & Support

12-month replacement warranty
24/7 technical support · CE/UL certified repairs
