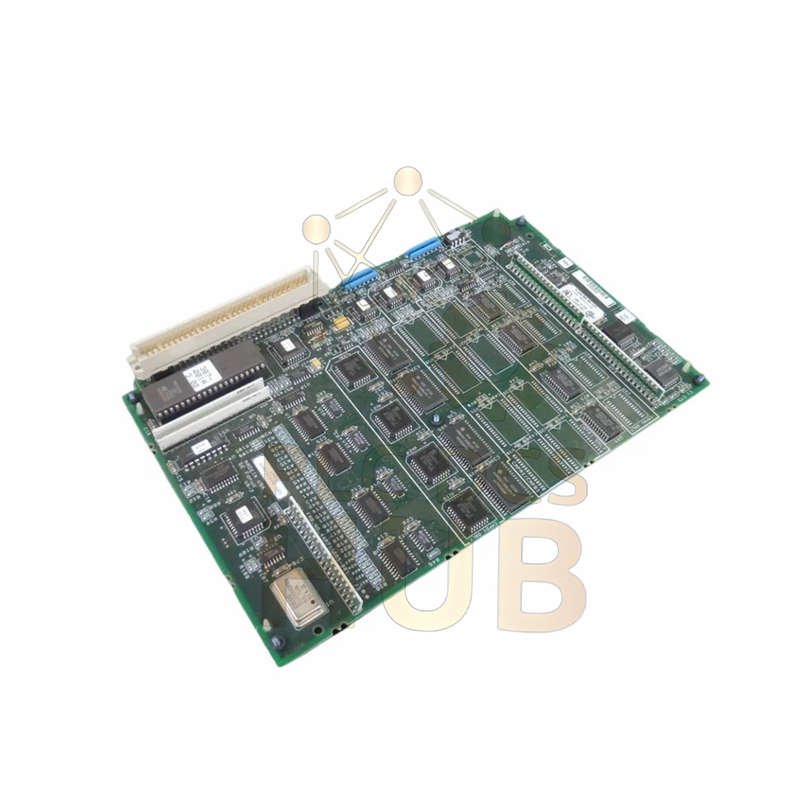

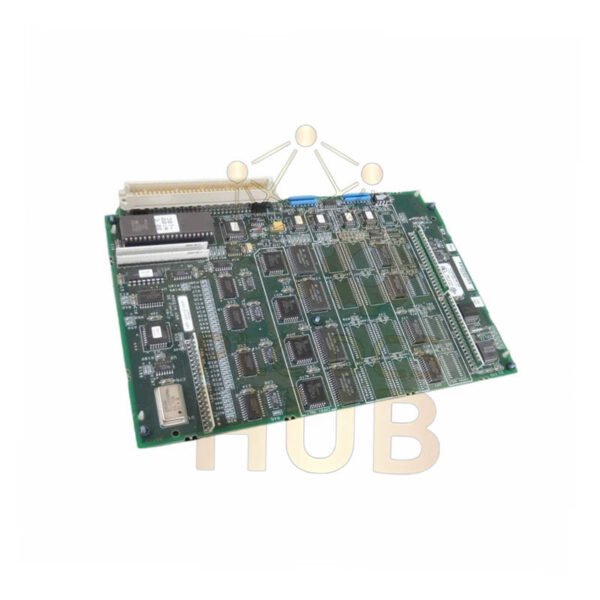

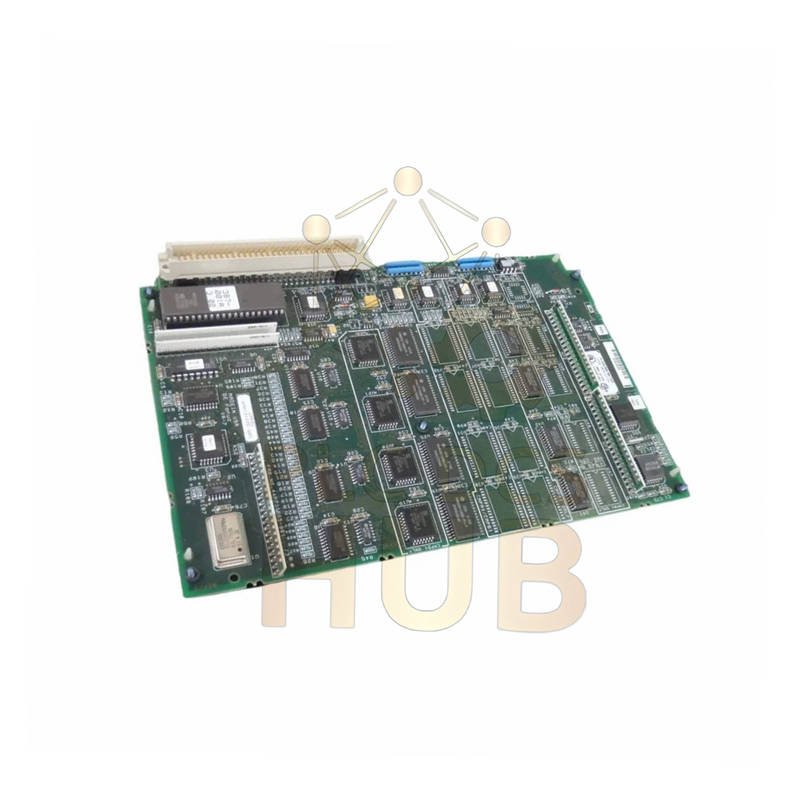

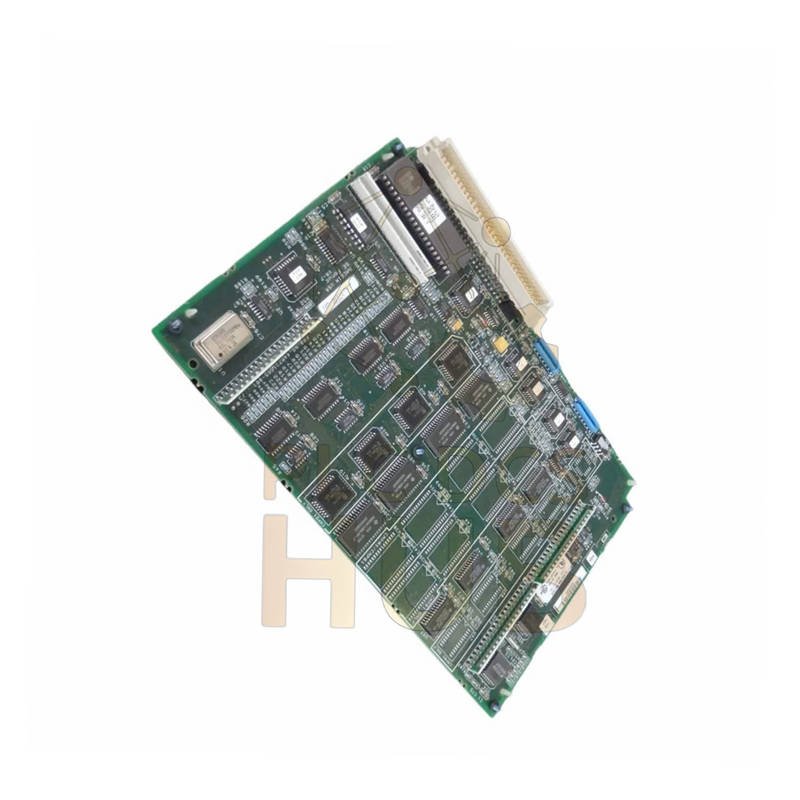

GE Fanuc IC697MEM732 PLC Memory Expansion Module
Expand your control system memory easily. The GE Fanuc IC697MEM732 module adds capacity to Series 90-70 PLCs. It fits directly onto your CPU. No extra rack slot is needed. This module keeps your data safe during power loss. It is a reliable upgrade for your industrial machines.
Core Benefits & Features
- Plug-in Memory Boost: Adds 128KB, 256KB, or 512KB to compatible CPUs.
- Saves Valuable Space: Installs as a daughterboard, using zero additional slots.
- Data Protection: Battery backup preserves memory for over 6 months without power.
- Proven Reliability: Designed for long-term use in industrial environments.
- Easy Integration: Works seamlessly with GE 780, 781, 782, 788, and 789 CPUs.
- Maintains System Uptime: Hot-swap capable (with proper procedure) to minimize downtime.
Complete Technical Specifications
- Manufacturer & Model: GE Fanuc (Emerson) IC697MEM732
- Product Series: Series 90-70 PLC Expansion Module
- Memory Type: Battery-backed RAM for program and data storage.
- Available Capacities: 128 Kilobytes (KB), 256 KB, 512 KB.
- Memory Retention: Minimum 6 months without external power (with good battery).
- Battery Type: Lithium battery (installed on the main CPU/baseboard).
- Compatible Processors: IC697CPU780, IC697CPU781, IC697CPU782, IC697CPU788, IC697CPU789.
- Physical Installation: Daughterboard module (mounts on CPU/PCM).
- Module Weight: 1.13 pounds (approximately 0.51 kilograms).
- Power Consumption: Part of CPU load; typical current rating 2.25A for assembly.
- Storage Shelf Life: 10 years at 20°C (68°F) in proper conditions.
- Typical Operating Temp: 0°C to 60°C (32°F to 140°F).
- Relative Humidity: 5% to 95% (non-condensing).
Package, Warranty & Support
- What You Receive: One GE Fanuc IC697MEM732 expansion memory module.
- Product Warranty: Backed by a full 12-month replacement warranty.
- Global Shipping: Reliably shipped worldwide via FedEx, UPS, or DHL.
- Expert Support: Access to technical documentation and compatibility guidance.
Frequently Asked Questions (FAQ)
1. How do I know if my Series 90-70 PLC needs this memory module?
If your PLC program is large or you need to store more data (like recipes or logs), and you see “memory full” errors in your programming software, this expansion module is the solution.
2. Can I install the module while the PLC is running?
This is called hot swapping. It is possible but carries risk. You must strictly follow the GE manual’s procedure. The safest method is to power down the entire PLC rack during installation.
3. The battery on my CPU is old. Will replacing it erase the memory on this expansion module?
Yes, it can. The memory module relies on the CPU’s battery. Always replace the CPU battery while the main system power is ON and stable. This keeps memory active during the swap.
4. We have a mix of program and data memory. Can this module be used for both?
Absolutely. The memory is unified. You configure how much is for the logic program and how much is for variable data storage within your Proficy Machine Edition (PME) project settings.
5. Is there a performance difference between the 128KB and 512KB version?
No. The access speed and performance are identical. The only difference is the storage capacity. Choose the size that fits your current and near-future application needs.
