Product Overview

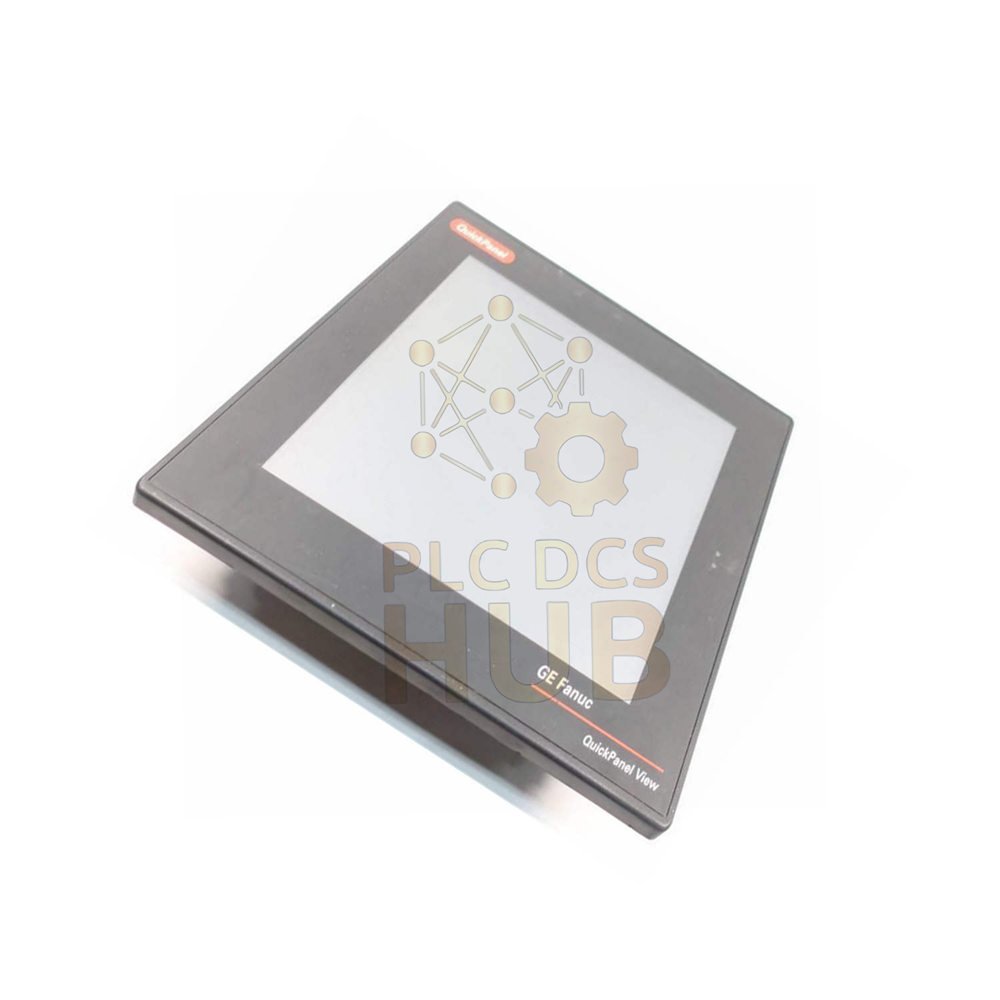

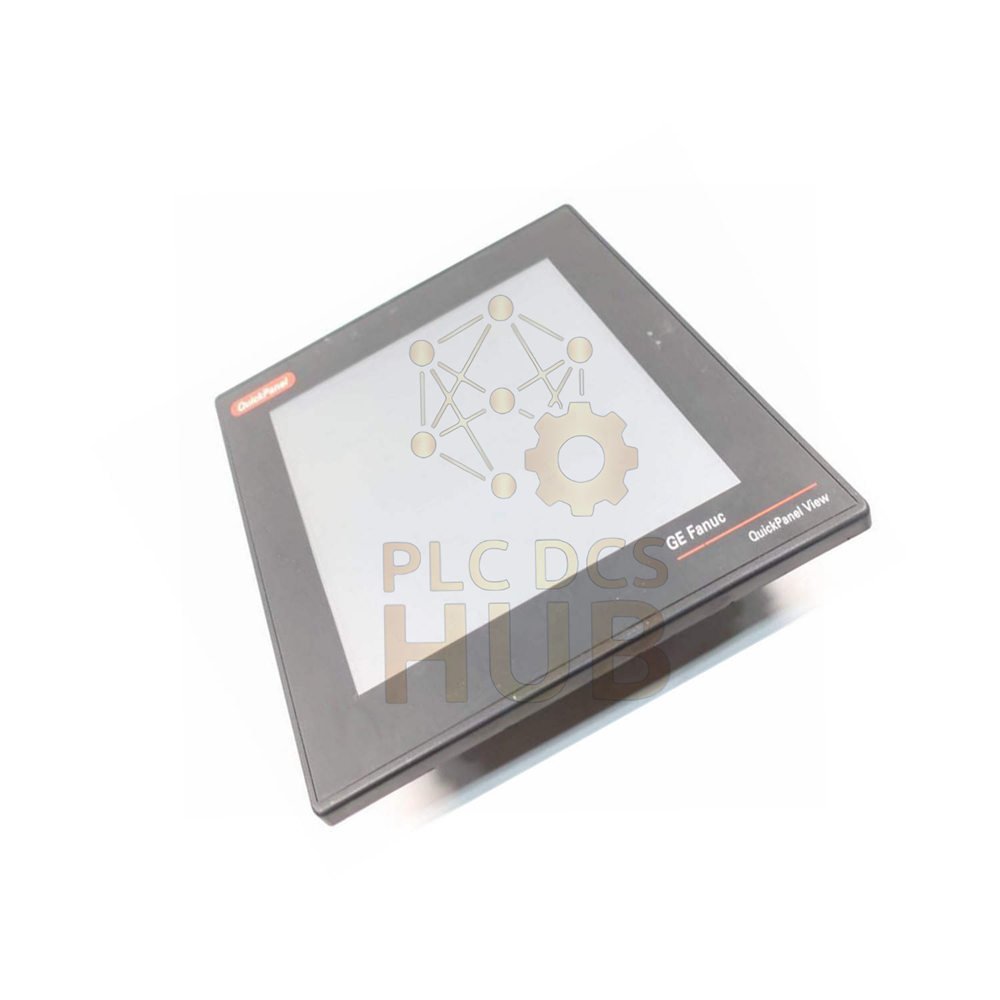

GE Fanuc IC754CKF12CTD is a robust 12-inch touchscreen HMI for industrial control.
- Delivers clear color display for fast operator response.
- Supports RS232 and RS485 for flexible integration.
- Runs on 12V or 24V DC power systems.
- Offers stable performance with 64 MB memory.
- Compact structure fits tight control panels.
Key Features
- 12-inch color touchscreen ensures easy navigation.
- Dual serial communication improves device connectivity.
- Lightweight design simplifies installation.
- Reliable hardware suits harsh environments.
- Optimized for industrial HMI applications.
Technical Data
- Brand: GE Fanuc
- Model: IC754CKF12CTD
- Display Size: 12-inch touchscreen
- Display Type: Color LCD
- Power Supply: 12V / 24V DC
- Memory: 64 MB
- Communication: RS232, RS485
- Resolution: High clarity operator interface
- Temperature Range: 0°C to 50°C typical
- Environmental Resistance: Industrial-grade design
- EMC Immunity: Strong anti-interference capability
- Weight: Approx. 10 lbs
- Dimensions: 16 x 14 x 8 inches
Installation Guide
- Mount panel using standard cutout dimensions.
- Connect DC power supply securely.
- Use proper grounding to reduce noise.
- Verify serial communication wiring.
Commissioning & Maintenance
- Quick startup with simple configuration tools.
- Stable firmware reduces downtime.
- Low maintenance design saves service cost.
- Easy access for updates and diagnostics.
Compatibility
- Works with PLC, DCS, and SCADA systems.
- Supports standard industrial protocols via serial ports.
- Compatible with HMI-CAB-C110 cable.
Certifications
- Designed to meet industrial safety standards.
- Complies with EMC and electrical regulations.
Applications & Use Cases
- Factory automation systems.
- Machine control interfaces.
- Process monitoring dashboards.
- Packaging and assembly lines.
Diagnostic Capability
- Real-time system status display.
- Quick fault identification.
- Supports efficient troubleshooting workflows.
PLCDCS HUB’s Insight
This HMI delivers stable performance for legacy and modern systems.
- Ideal for upgrades without full system replacement.
- Strong compatibility reduces integration risk.
- Reliable for continuous industrial operation.
Packing List
- 1 × HMI Panel
- 1 × User documentation
- 1 × Mounting accessories
Warranty & Shipping
- 12-month warranty provided.
- Fast delivery via FedEx, UPS, DHL.
- Secure packaging for global shipping.
FAQ
- What screen size does this unit have?
- It uses a 12-inch color touchscreen.
- Which communication ports are available?
- It supports RS232 and RS485.
- What power input is required?
- It operates on 12V or 24V DC.
- Is it suitable for system upgrades?
- Yes, it integrates with existing PLC systems.
- How to choose the right HMI?
- Check screen size, protocol, and memory needs.
- What is a common installation issue?
- Incorrect grounding may cause communication noise.
