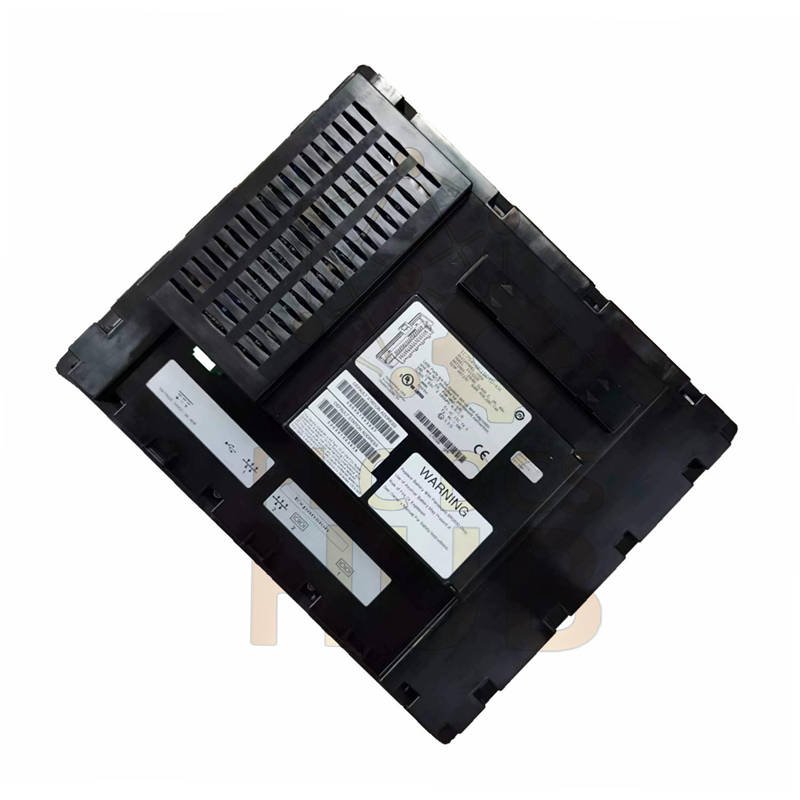

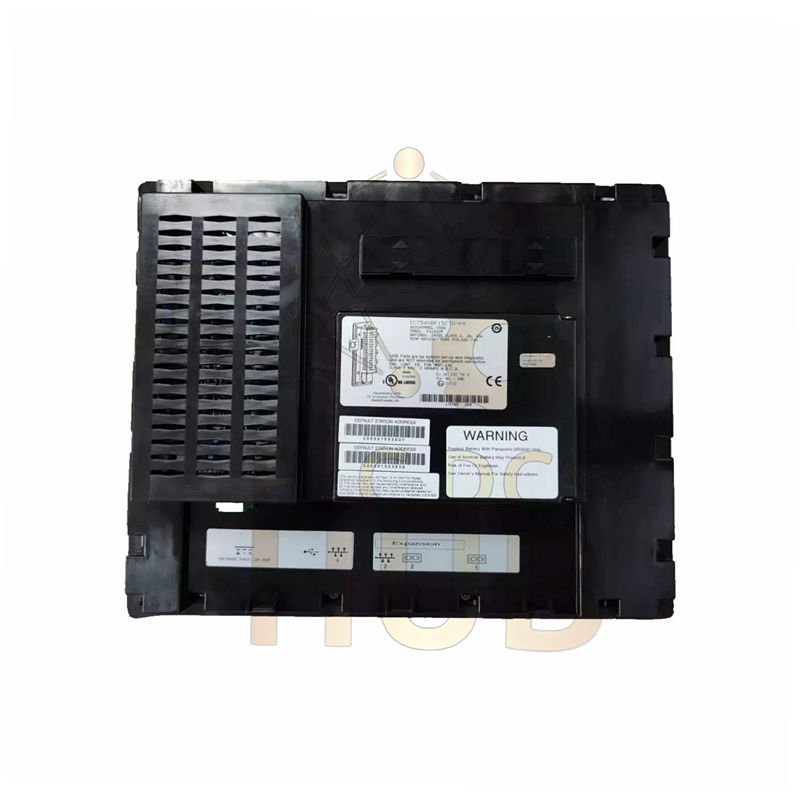

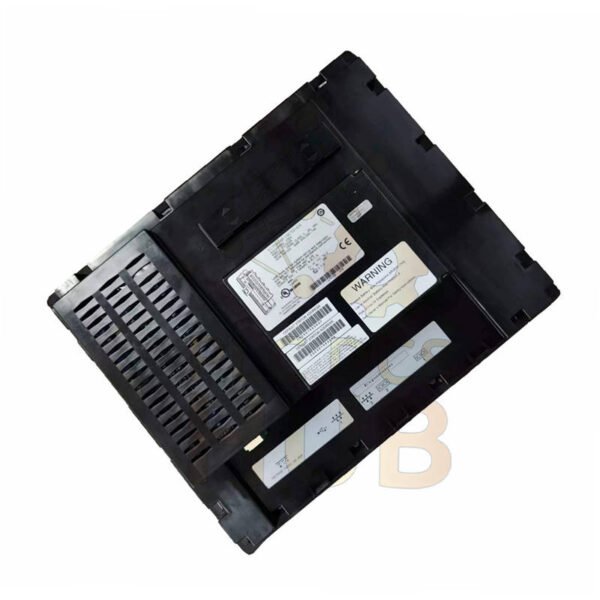

GE Fanuc IC754VBF15CTD QuickPanel Series Touchscreen HMI Industrial Panel

Description

GE Fanuc IC754VBF15CTD QuickPanel HMI Overview

• The IC754VBF15CTD is a 15 inch touchscreen HMI from the GE Fanuc QuickPanel series.
• This unit combines display, control, and computing in one compact device.
• The design suits harsh factory and process environments.

Core Product Highlights

• Large color TFT screen improves visibility on the shop floor.
• Touchscreen input allows fast and simple operator control.
• All in one structure reduces wiring and cabinet space.

Main Technical Specifications

• Brand: GE Fanuc Emerson
• Series: QuickPanel
• Model: IC754VBF15CTD
• Display Size: 15 inch TFT color screen
• Input Method: Resistive touchscreen
• Weight: 32.06 lbs (14.54 kg)

System and Memory Performance

• Internal memory provides 64 MB for runtime applications.
• Flash memory stores the operating system and project files.
• DRAM loads the system during startup for fast execution.

Operating System and Software

• The panel runs Windows Embedded Compact 7.
• The system uses a full 32 bit architecture.
• User changes save automatically to flash memory.

Communication and Connectivity

• Serial ports support RS232 and RS485 protocols.
• Ethernet port enables PLC network communication.
• Status LEDs show link speed and data activity.

Power and Environmental Design

• The unit accepts 12 VDC or 24 VDC input power.
• NEMA 4X and NEMA 12 ratings protect against dust and moisture.
• The enclosure supports long term industrial use.

Visual and Audio Status Indicators

• Tri color LED shows startup and system health.
• Amber light indicates system boot.
• Green light shows normal operation.
• Red blinking warns of backlight failure.
• Onboard buzzer provides audio alerts.

Typical Applications

• Machine control and monitoring panels.
• Manufacturing line operator stations.
• PLC visualization in industrial networks.

Warranty and Shipping

• The product includes a 12 month warranty.
• Global shipping available via FedEx, UPS, and DHL.

Professional FAQ

• Does this HMI support continuous operation?
• Yes, it is designed for nonstop industrial use.
• How does the unit store user changes?
• The system saves changes directly to flash memory.
• Is the screen readable in bright areas?
• The TFT display maintains good contrast in factory lighting.
• Can this panel connect to multiple PLC brands?
• Serial and Ethernet ports allow broad PLC compatibility.
• What happens during sudden power loss?
• Flash storage protects system data without batteries.
