Description
Overview

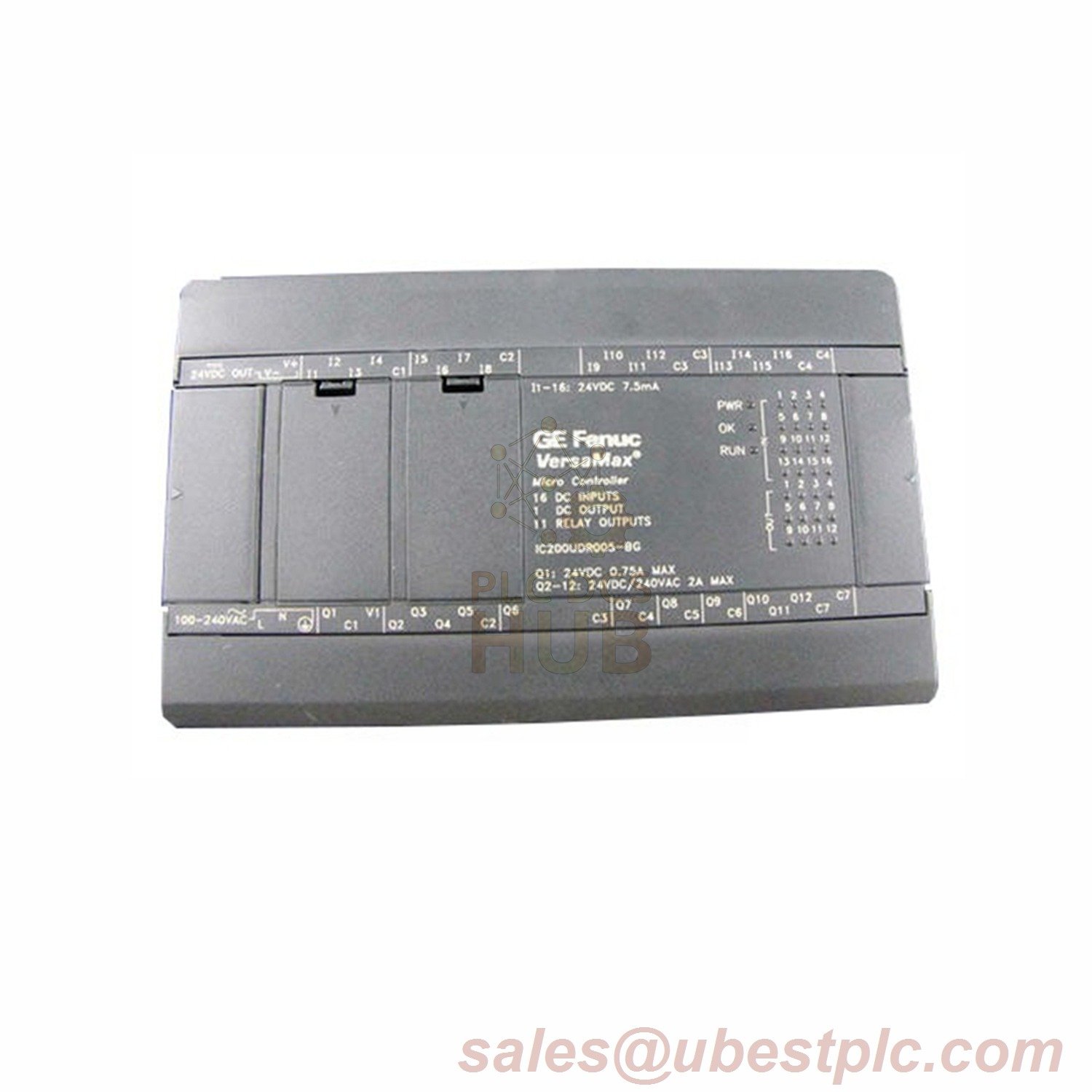

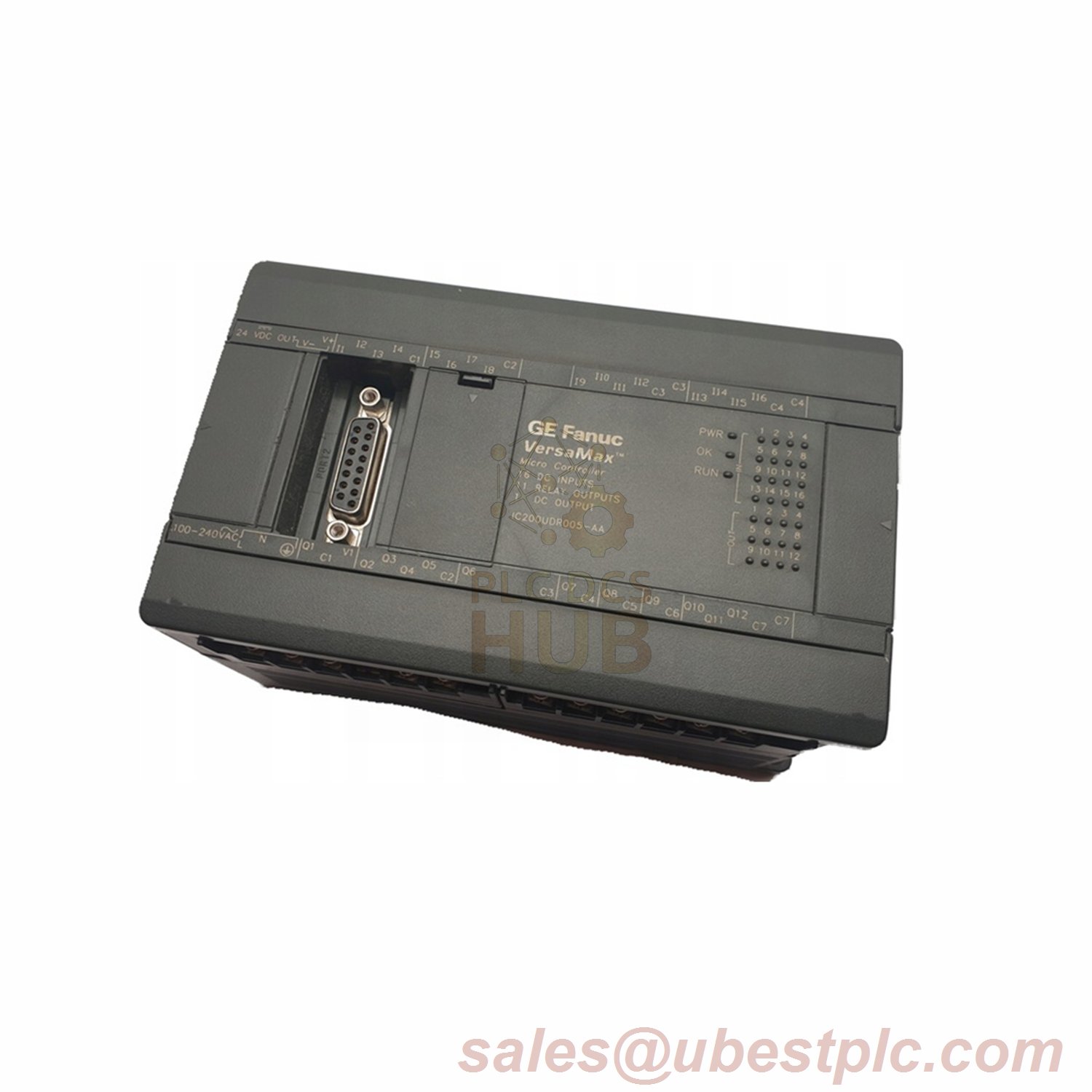

The IC200UDR005 is part of the VersaMax Micro series, offering a compact and versatile solution for industrial automation. Designed to handle a total of 28 I/O points, it features 16 digital inputs, 11 relay outputs, and 1 digital output, making it ideal for a wide range of control applications. With a power supply range of 120/240V AC, this module provides flexible connectivity and reliable performance across varying industrial environments.
Technical Data:
| Specification | Details |
|---|---|
| Brand | General Electric (GE) |
| Model | IC200UDR005 |
| Series | VersaMax Micro |
| I/O Points | 28 |
| Digital Inputs | 16 |
| Input Voltage | 24V DC |
| Relay Outputs | 11 |
| Output Type | Relay |
| Digital Output | 1 |
| Output Voltage | 24V DC |
| Power Supply Voltage | 120/240V AC |
| Input Voltage Range | 18-30V DC |
| Input Current | 7mA (typically at 24V DC) |
| Relay Contact Rating | 5A at 250V AC / 30V DC (resistive) |
| DC Output Rating | 0.5A at 24V DC |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95%, non-condensing |
