Description

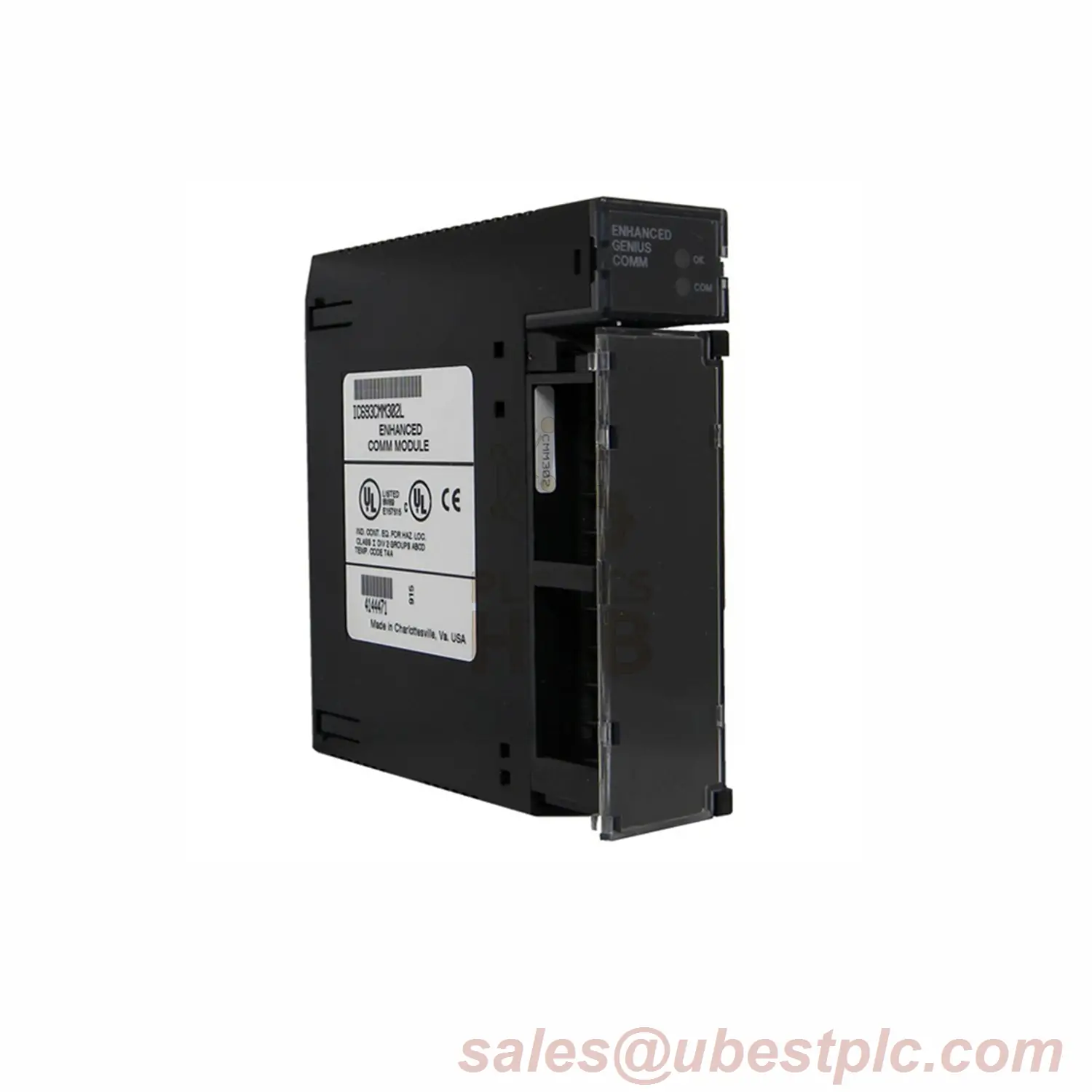

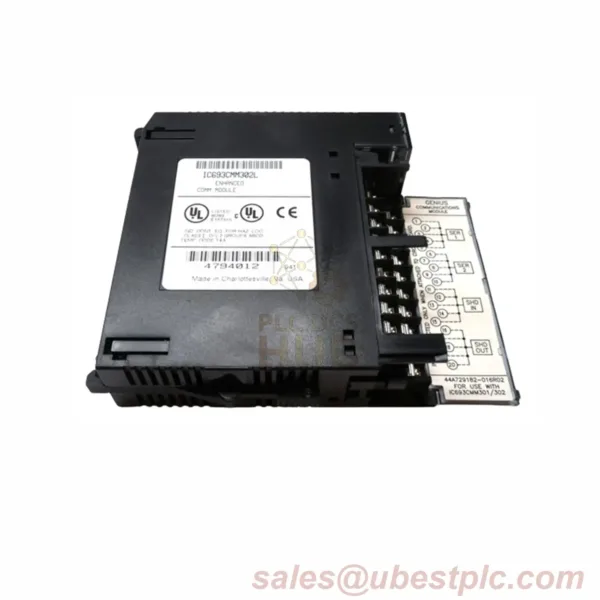

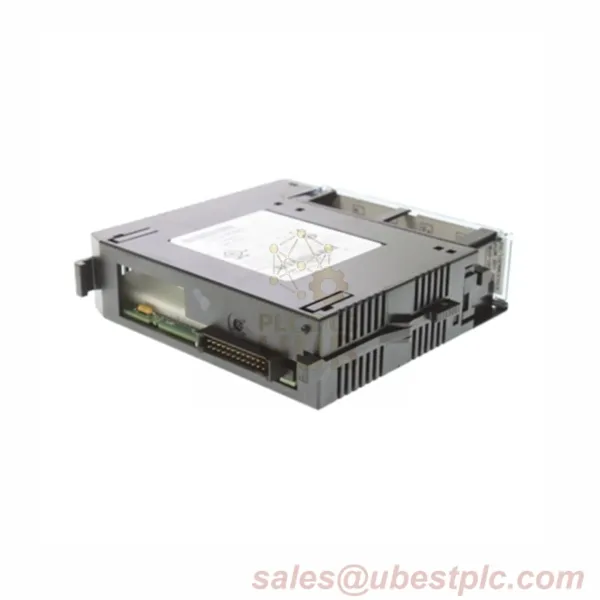

GE Fanuc IC693CMM302: Genius Network Master Module
Industrial-grade communication hub for Series 90-30 PLC systems. Links 31 devices with 128-byte data exchange. Perfect for real-time control networks.
???? Core Specifications
| Parameter | Value |
|---|---|
| Brand | GE Fanuc |
| Model | IC693CMM302 |
| Series | Series 90-30 PLC |
| Device Capacity | 31 devices |
| Data Exchange | 128 bytes TX/RX |
| Power Draw | <300mA @ 5VDC |
| LED Indicators | OK, COMM (2 total) |
| Operating Temp | 0°C to 60°C |
| Weight | 0.55 kg |
⚙️ Installation Guide
- Mount in Series 90-30 rack (single slot)
- Connect bus cable to GENIUS port
- Verify 5V power stability (±5%)
- Keep 50mm clearance around module
???? Diagnostics & Maintenance
- Monitor OK/COMM LEDs for status
- Check for condensation in humid environments
- Use PLC software for fault reporting
- Clean connectors annually with contact spray
???? Packing List
- IC693CMM302 Module (1 unit)
- Bus terminator plug
- Installation sheet
Note: 12-month warranty. No certificates included.
✈️ Shipping
Global delivery: FedEx, UPS, DHL. Tracking included.
❓ FAQ
Q: Maximum cable length?
A: 2000ft (610m) with shielded twisted pair
Q: Compatible with Series 90-70?
A: Yes – via fault reporting interface
Q: Supports Modbus protocol?
A: No – exclusive to Genius Bus protocol
