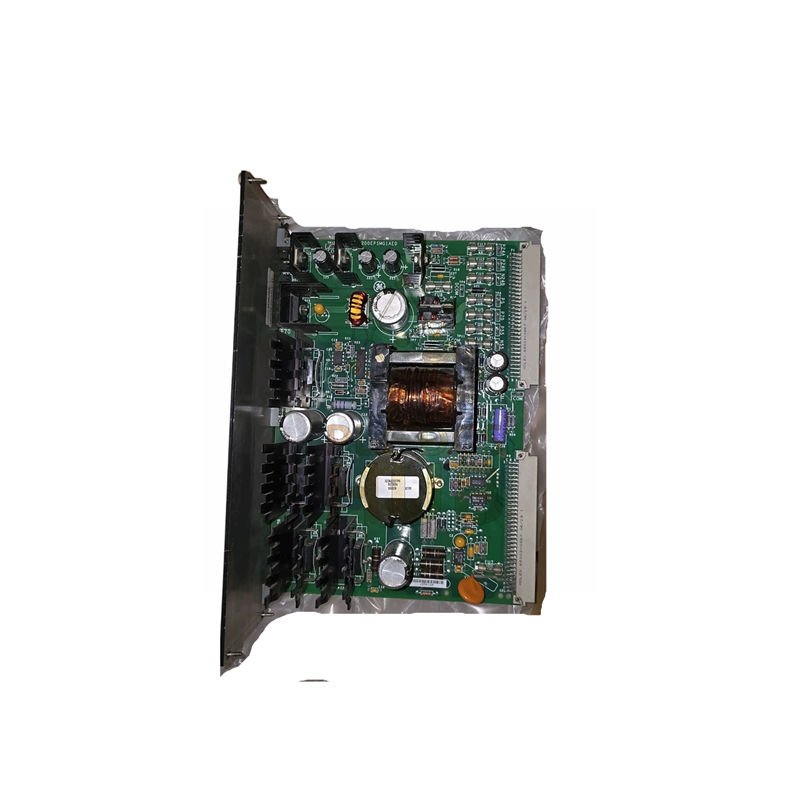

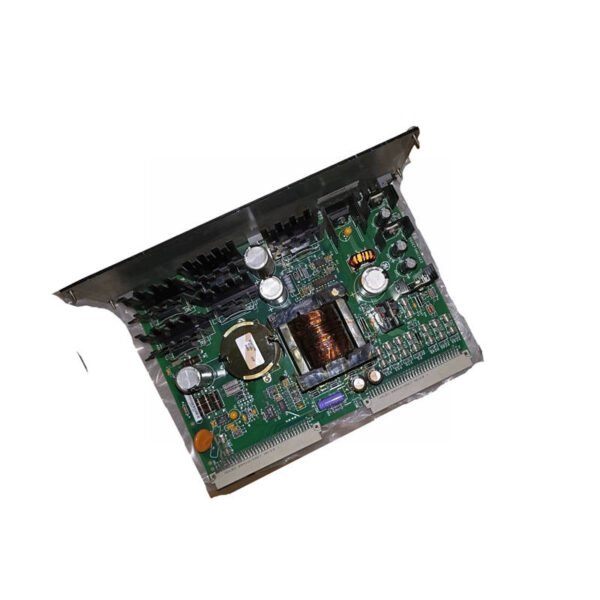

GE IS200EPSMG1A Exciter Power Supply Module
The IS200EPSMG1A delivers reliable power conversion for EX2100 excitation systems. This robust power supply module converts 125V DC input to multiple output voltages. It serves both excitation control and regulator applications. The module ensures stable operation in demanding turbine environments.
Technical Specifications
- Manufacturer: General Electric
- Model: IS200EPSMG1A
- Series: EX2100 Excitation Control
- Input Voltage: 125V DC nominal
- Output Voltages: +5V, ±15V, +24V, +70V DC
- Intermediate Voltage: 50V DC regulated
- Mounting: EPBP backplane slot
- Connectors: P1 and P2 for power distribution
- Weight: 1.5 pounds
- Isolation: High-voltage transformer isolated
- Country: United States
- Repair Service: 3-5 day turnaround available
Power Output Distribution
- +5V DC for logic circuits and controllers
- ±15V DC for analog circuitry and sensors
- +24V DC for fans and relay operations
- +70V DC for contact wetting applications
- 55V DC for ground detector circuits
- 20V AC for IGBT gate drive requirements
System Applications
- EX2100 Excitation Control Systems
- M1, M2, and C controller power supply
- EBKP backplane power distribution
- External module power including EDCF and EGDM
- Crowbar and de-excitation module support
- ECTB and EXTB terminal board wetting
Installation & Compatibility
- Fits standard EPBP exciter power backplane
- Connects via P1 and P2 power connectors
- Works with EPDM power distribution module
- Supports both simplex and redundant systems
- Compatible with Mark VI turbine controls
- Requires 125V DC input from PDM
Frequently Asked Questions
- What input voltage does the module require?
- The module operates with 125V DC input power.
- How many output voltages does it provide?
- It generates six different voltage levels for various needs.
- Where does this module install in the system?
- It mounts in the EPBP backplane beneath the control rack.
- What external devices does it power?
- It supplies fans, crowbar modules, and ground detectors.
- Is this compatible with redundant systems?
- Yes, it works in both simplex and redundant configurations.
