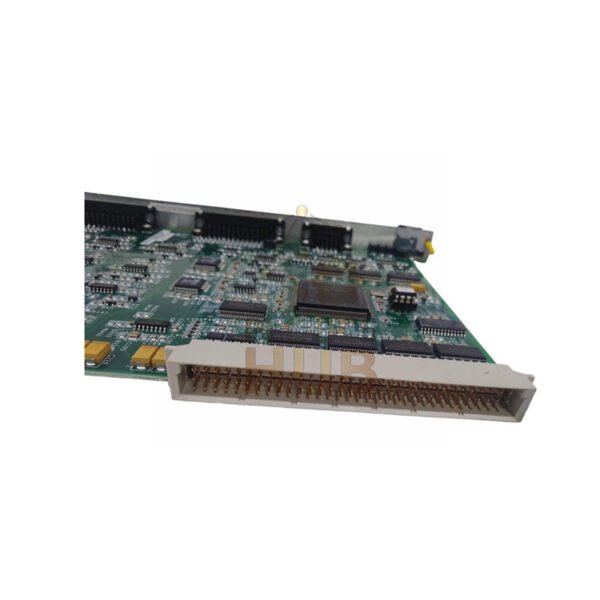

GE IS200ERIOH1A Exciter Regulator I/O Board
The IS200ERIOH1A serves as a crucial I/O interface in EX2100 and Mark VI systems. This versatile board handles both system and customer I/O signals in simplex and redundant configurations. With advanced FPGA technology and dual CPU capability, the IS200ERIOH1A ensures reliable performance in demanding industrial environments.
Why Choose This Board?
- Works with both simplex and redundant systems
- Features advanced FPGA for data control
- Includes dual CPU sockets for enhanced processing
- Compatible with EX2100 and Mark VI series
- Easy integration with existing GE systems
- Robust construction for industrial use
Technical Specifications
- Brand: General Electric
- Model: IS200ERIOH1A
- Series: EX2100 & Mark VI
- Function: Exciter Regulator I/O Board
- Board Type: Double Wide Faceplate
- Backplane Connectors: P1/P2
- CPU Sockets: 2 Available
- FPGA: Field Programmable Gate Array
- Interface: 25-pin Connectors
- Mounting: ERBP or ERRB Backplanes
- Components: Toggle Switch, Multiple ICs
System Configuration
Simplex Systems: One board in ERBP M1
Redundant Systems: Three boards required
Mounting Locations: ERBP M1, ERRB M2/C
Compatible Boards: EROC, ERDD, EPCT, ECTB
Shipping & Warranty
We ship worldwide via FedEx, UPS, DHL. All orders processed within 24 hours. Your purchase includes full 12-month warranty coverage.
Professional FAQ
- How many boards are needed for redundant systems?
- Three IS200ERIOH1A boards are required for full redundant configuration.
- What systems is this board compatible with?
- It works with EX2100 Excitation Regulator and Mark VI control systems.
- What does the FPGA controller do?
- The Field Programmable Gate Array manages data acquisition and storage in DPM memory.
- Where is the board mounted in simplex applications?
- In simplex systems, it mounts in the ERBP (Exciter Regulator Backplane).
- What interfaces does the board provide?
- It interfaces with ECTBG2, EPCT terminal boards and EROC, ERDD system cards.
