Description
Product Description

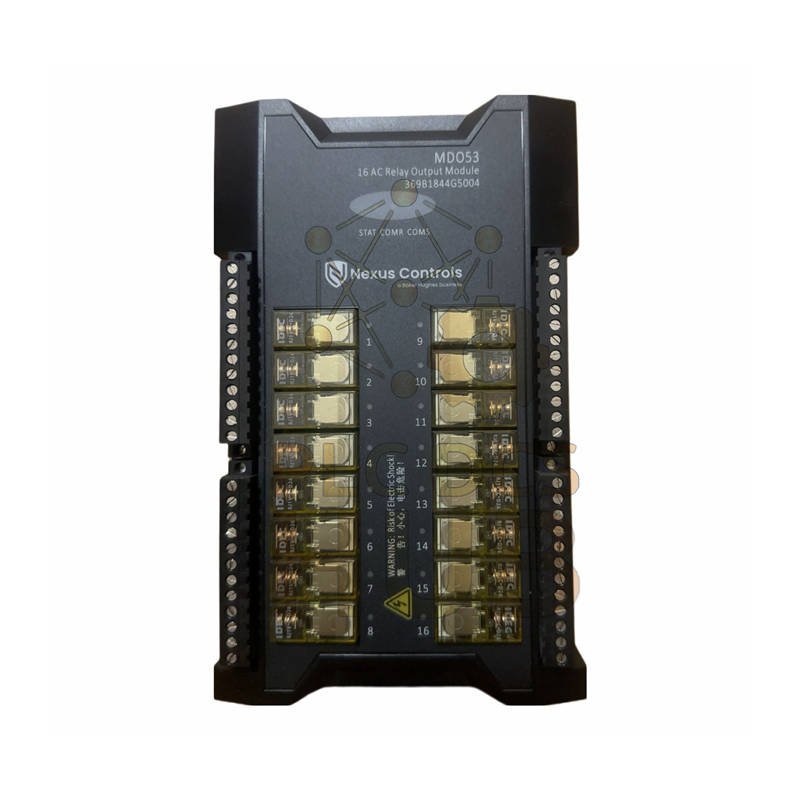

The GE Nexus MDO53 369B1844G5004 digital output module provides reliable relay control.
It offers 16 AC relay outputs and clear LED feedback.
It uses wide isolation to reduce noise and improve safety.
Its compact size saves cabinet space.
Low power keeps heat generation low.
Quick setup gets systems running fast.
Download the manual for full instructions.
- 16 AC relay outputs with channel LEDs
- High isolation between channels and ground
- Compact dimensions: 49 × 14 × 2.7 cm
- Light weight: 0.4 kg
- Easy field wiring and fast diagnostics
Technical Data
- Brand: GE
- Model: MDO53 369B1844G5004
- Series: Nexus
- Channels: 16 relay outputs
- Output type: 24 V DC / 100 mA
- Contact rating: 12 A @ 250 V AC resistive
- Contact rating: 12 A @ 30 V DC resistive
- Contact rating: 7.5 A @ 250 V AC inductive
- Contact rating: 6 A @ 30 V DC inductive
- Channel LED indicators for output state
- Module LEDs for run, comms and faults
- Isolation: 1000 VAC channel to channel
- Isolation: 2500 VAC channel to ground
- System isolation: 3000 VAC channel to system
- Power consumption: typical 1.3 W
- Power consumption: maximum 11 W
- Size: 49 × 14 × 2.7 cm
- Weight: 0.4 kg
- Certification: CE when installed with certified host
- Operating tolerance for industrial environments
- Enhanced immunity to electrical noise
Installation Guide
- Mount on a clean DIN rail inside the cabinet.
- Turn power off before wiring the module.
- Ensure solid ground bonding to the panel.
- Connect each load to the marked terminal.
- Keep AC and control wiring separate.
- Verify LED states after power up.
Commissioning and Maintenance
- Run an output test after installation.
- Inspect terminal screws for tightness.
- Listen for relay operation during tests.
- Clean dust with filtered dry air only.
- Log LED fault states in records.
Compatibility
- Integrates with GE Nexus protection systems.
- Supports standard relay output wiring.
- Works with common PLC and DCS schemes.
Certification
- CE compliance when used with certified host systems.
Package List and Warranty
- 1 × GE Nexus MDO53 369B1844G5004 module
- 1 × Quick guide
- 12 months limited warranty from delivery
Shipping
- FedEx available
- UPS available
- DHL available
Typical Applications
- Power plant relay logic panels
- Industrial motor control cabinets
- Process control output switching
- Grid protection and automation racks
- General automation output expansion
Diagnostic Ability
- Channel LEDs show live output state.
- Module LEDs show run, comms and alarm states.
- Visual checks allow rapid fault isolation.
FAQ
- Can I use inductive loads per channel?
Use inductive loads within the listed contact ratings.
If switching coils, install suppression devices. - How do I test relay outputs safely?
Power the module in a test bench.
Trigger outputs one by one and observe LEDs. - How often should I inspect the module?
Inspect during planned shutdowns.
Check LEDs and wiring every six months. - What reduces interference on long runs?
Use shielded cable and ground shields at one end.
Route power cables separately from signal wires. - How do I handle a stuck relay?
Remove power first.
Check wiring and relay contacts.
Replace module if fault persists.
