Product Summary: High-Precision Input Card

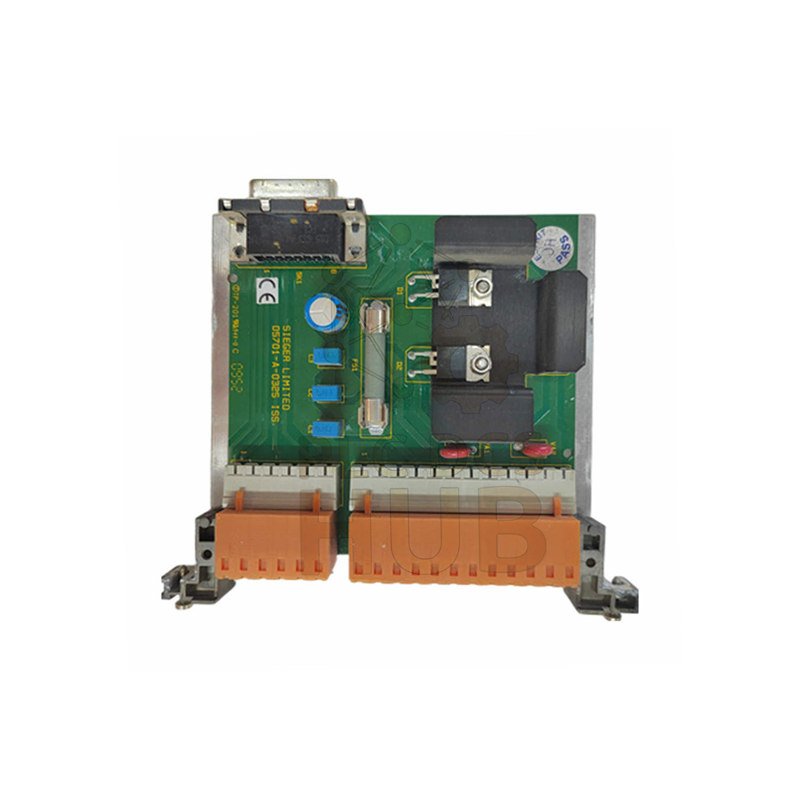

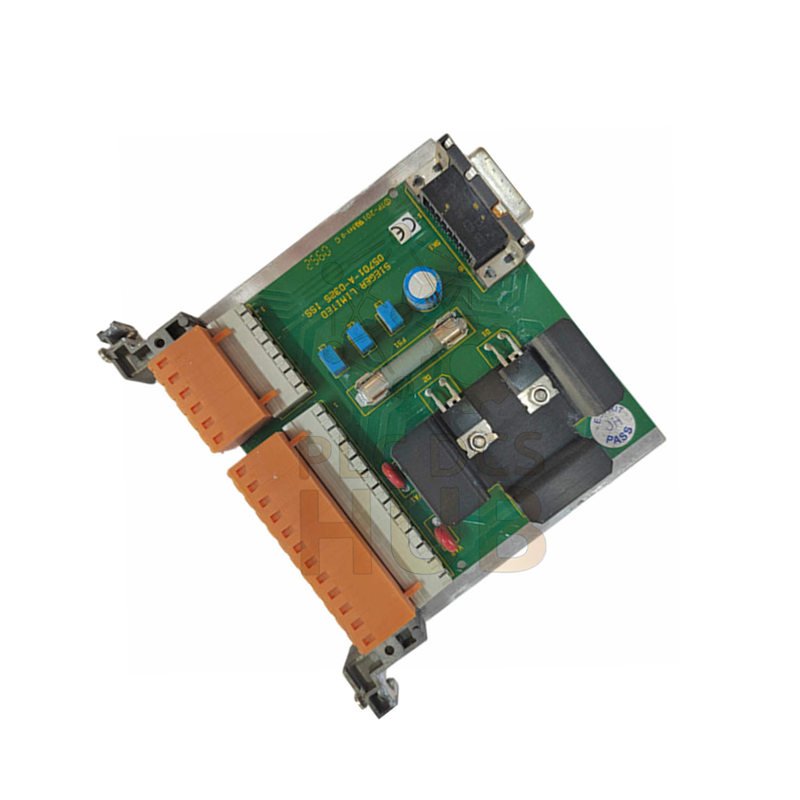

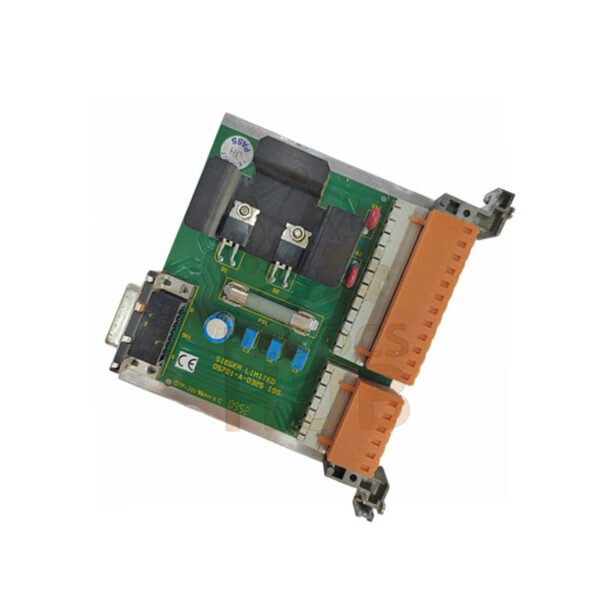

The Honeywell 05701-A-0325 is a DC input module. It connects sensors to control systems. This card offers 16 flexible channels. It reads both current and voltage signals. Achieve reliable process monitoring with high accuracy.
Detailed Technical Specifications
- Brand & Model: Honeywell 05701-A-0325
- Product Type: Digital Input Card.
- Number of Inputs: 16 independent channels.
- Compatible Signals: 0-20mA, 4-20mA, 0-10VDC, 0-5VDC.
- Input Impedance: 250Ω (current), 1 MΩ (voltage).
- Overall Accuracy: ±0.1% of full scale.
- Digital Resolution: 16-bit.
- Isolation Ratings: 1500 VDC (channel-to-channel), 2500 VDC (channel-to-ground).
- Power Requirements: 24 VDC or 125 VDC.
- Operating Temperature: 0°C to 60°C (32°F to 140°F).
- Update Speed: Fast scanning for real-time control.
- Noise Immunity: High common-mode noise rejection.
- Physical Size: 45 mm x 120 mm x 120 mm.
- Product Weight: 250 grams.
Main Advantages
- Multi-Signal Support: One card handles various industrial signals.
- Superior Accuracy: 16-bit resolution for exact measurements.
- Enhanced Safety: High voltage isolation protects equipment.
- Dual Power Input: Offers flexibility for different panel designs.
- Compact Design: Saves space in control cabinets.
Support & Delivery
This product is backed by a full 12-month warranty. We deliver globally using FedEx, UPS, and DHL express services.
Frequently Asked Questions
Can I use this card with 4-20mA transmitters?
Yes. The 05701-A-0325 is perfect for 4-20mA loops, a very common industrial standard.
How do I configure each input channel?
Configuration is done via the system’s software. You select the signal type for each channel individually.
What is a good practice for maintenance?
Periodically check terminal connections for tightness. Loose wires are a common source of signal problems.
Is special wiring needed for the 125VDC power option?
Yes. Use wiring rated for higher voltage when using the 125VDC power input for safety.
Why pick this Honeywell 05701-A-0325 card?
Choose it for its versatility and precision. It is ideal for upgrading or building a robust data acquisition system.
Simple Buying Advice
Select the Honeywell 05701-A-0325 card for accurate multi-point monitoring. It is a reliable choice for new installations or spares. Verify compatibility with your existing Honeywell chassis.
