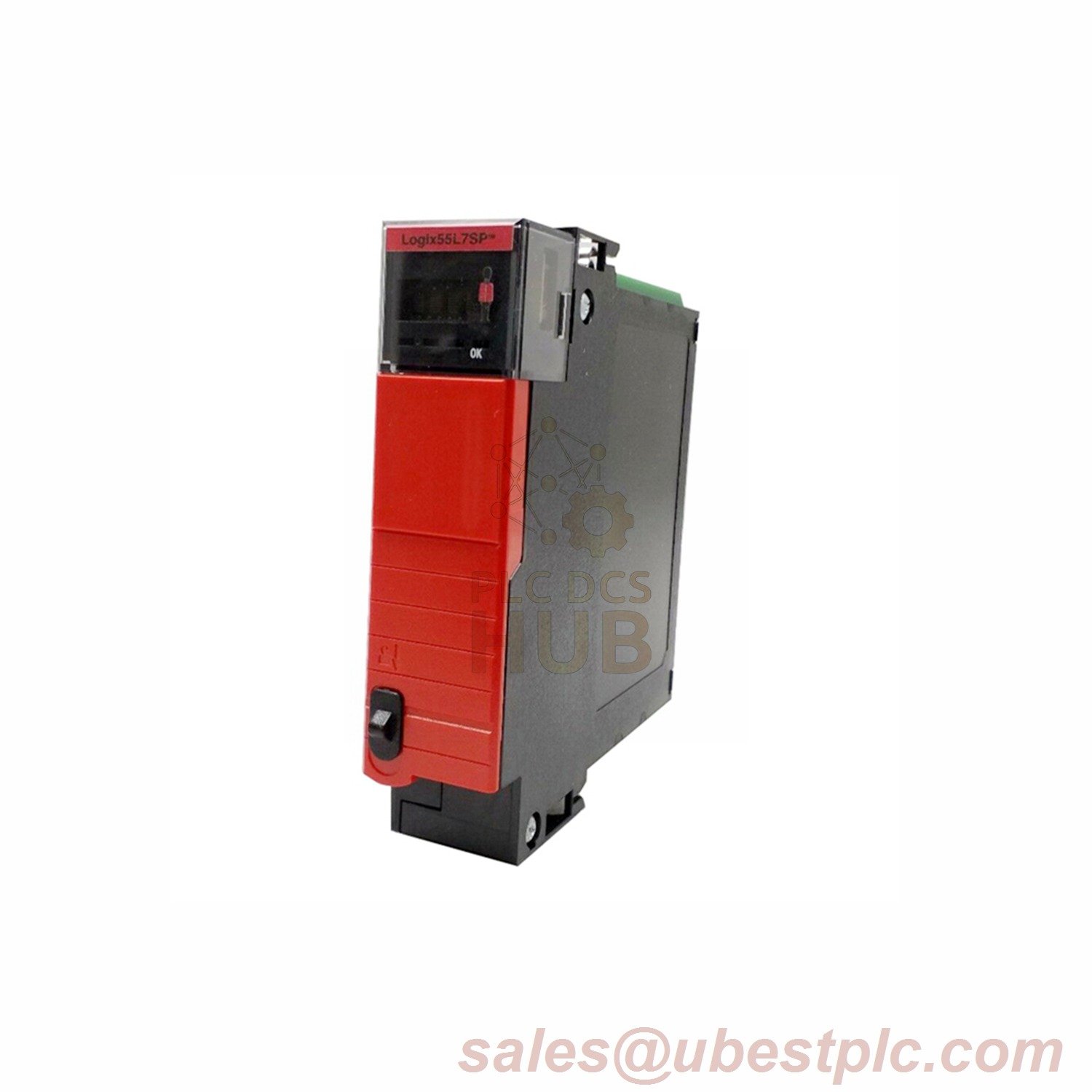

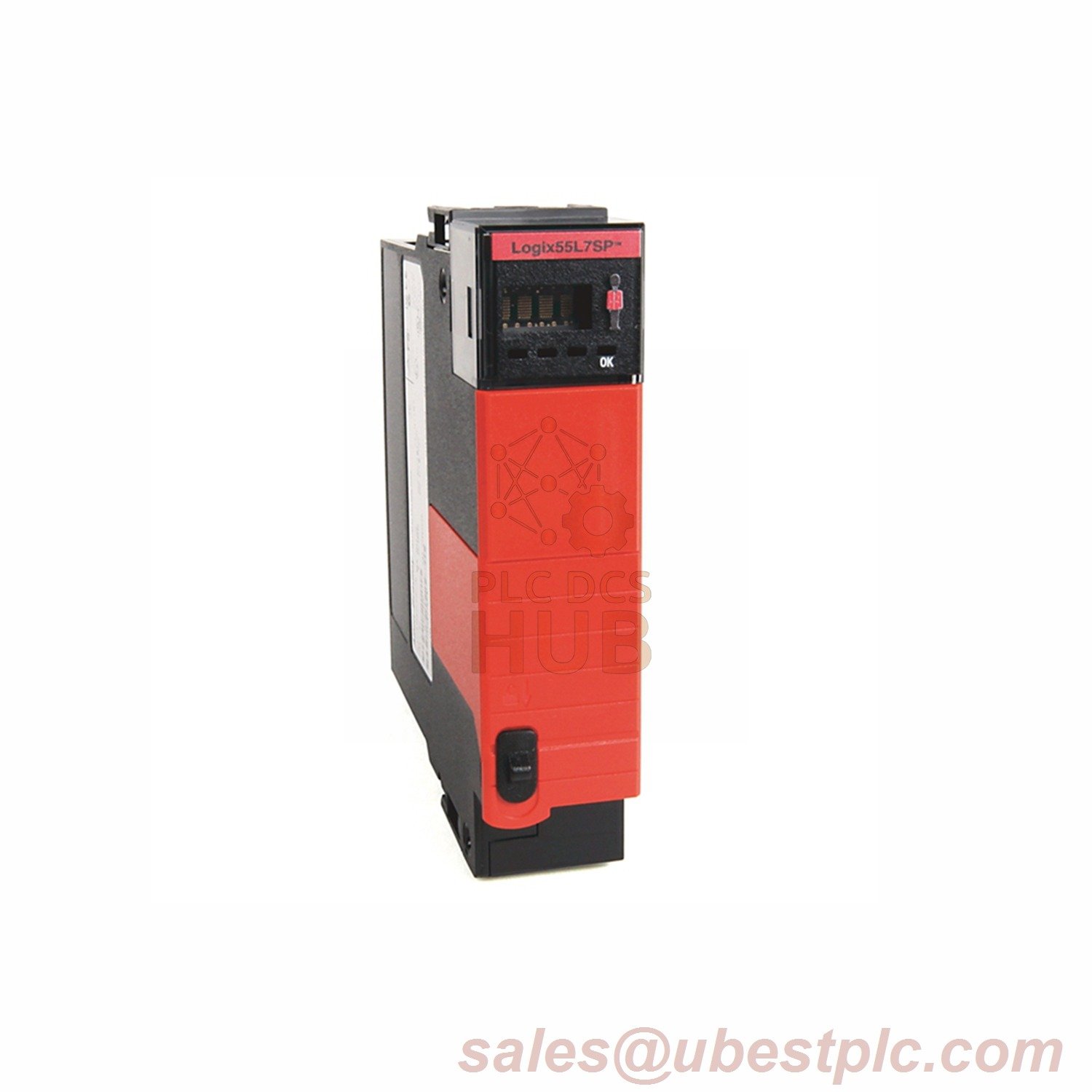

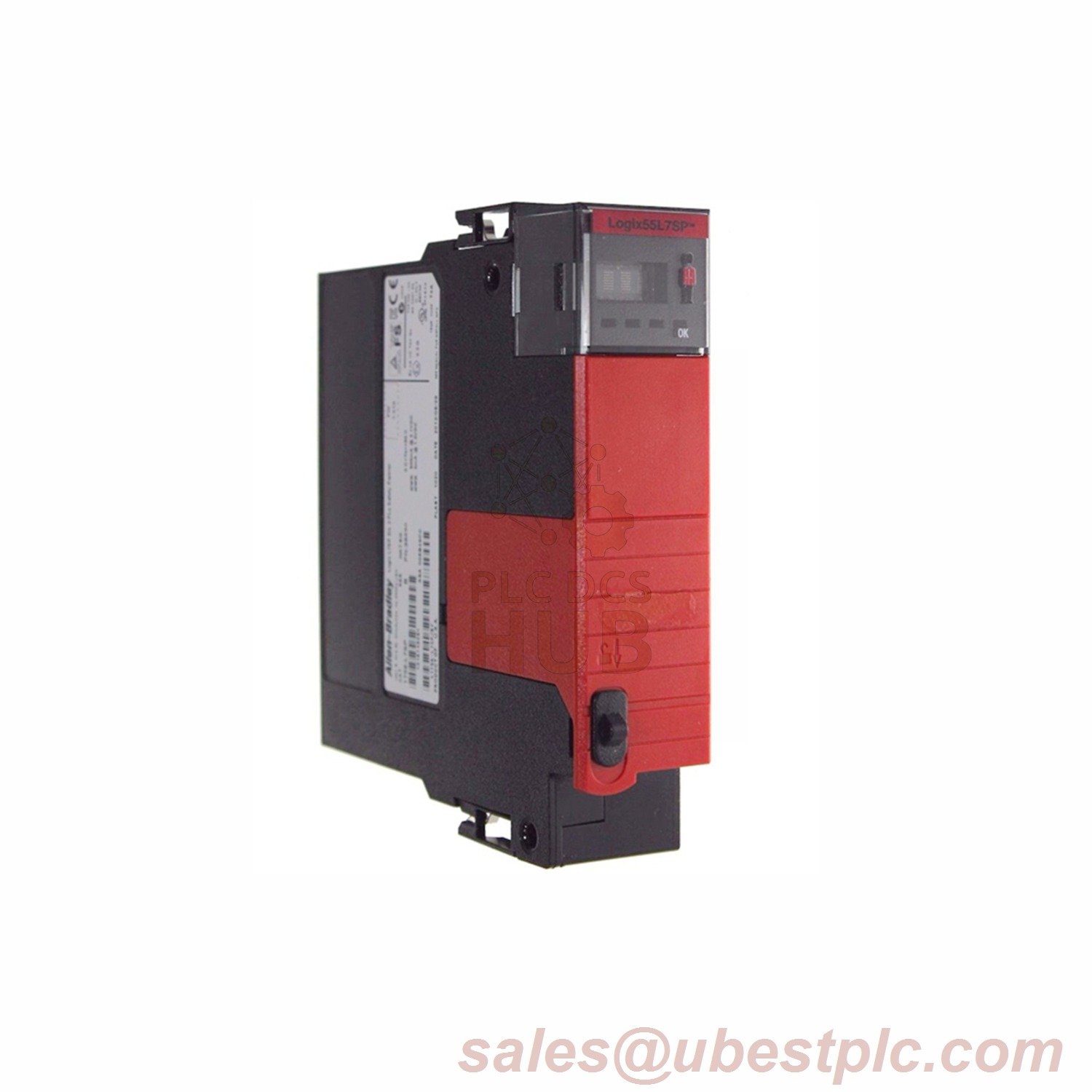

Allen-Bradley 1756-L7SP GuardLogix Safety Partner Controller
Maximum safety for critical operations. The 1756-L7SP is a specialized safety partner controller. It works with primary GuardLogix controllers to create a redundant safety system. This 1756-L7SP module helps achieve the highest safety ratings for your machinery.
Detailed Technical Specifications
- Brand: Allen-Bradley
- Model: 1756-L7SP
- Series: GuardLogix
- Module Type: Safety Partner Controller
- Slot Width: 2 slots
- Power Consumption: 2.5 Watts
- Heat Output: 8.5 BTU/hour
- Isolation Voltage: 30V continuous
- Voltage Test: 980V AC for 60 seconds
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Relative Humidity: 5% to 95% non-condensing
- Vibration Resistance: 2G (10-500 Hz)
- Shock Resistance: 30G operating
- Current Draw: 800mA @ 5.1V DC, 5mA @ 1.2V DC
Compatible Equipment
Primary Controllers: 1756-L71S, L71SK, L72S, L72SK, L73S, L73SK
Chassis Options: 1756-A4, A4K, A7, A7K, A10, A10K, A13, A13K, A17, A17K
Power Supplies: 1756-PA50, PA72, PA72K, PA75, PA75K, PB50, PB72, PB72K, PB75, PB75K
Installation Requirements
The 1756-L7SP safety partner must install immediately to the right of the primary controller. It occupies two slot positions in the chassis. Proper installation is critical for safety system operation.
Package & Protection
Your order includes: One (1) Allen-Bradley 1756-L7SP safety partner controller. This product includes our 12-month warranty for complete peace of mind.
Global Shipping
We ship internationally using FedEx, UPS, and DHL services. All shipments include tracking and insurance coverage.
Download Safety Manual
Access vital safety information:
- Complete installation guidelines
- Safety system configuration
- Wiring diagrams
- Certification details
- Troubleshooting guide
- Download Safety Manual Here (PDF)
