Hazardous Area Certified Probe 330707-00-20-90-01-05 | Bently Nevada 11mm

Description

Certified Long-Reach Sensor for Hazardous Areas

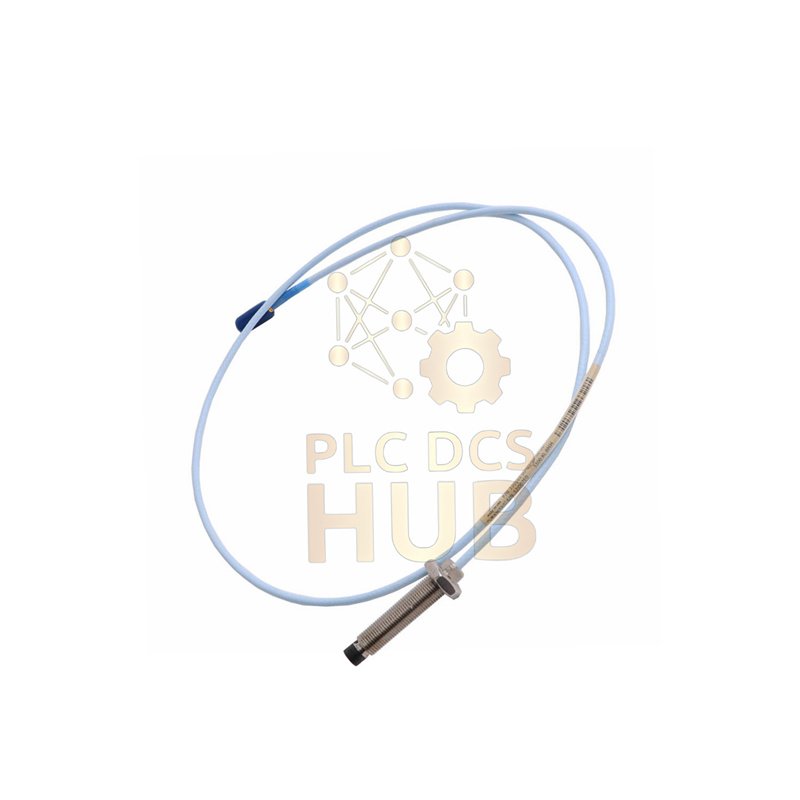

Meet the Bently Nevada 3300 XL 11 mm Proximity Probes built for safety. Model 330707-00-20-90-01-05 is a 9-meter vibration probe certified for hazardous locations. It features multiple international approvals, making it the trusted choice for oil & gas, chemical, and other demanding industries where safety is paramount.

Core Benefits & Features

• Hazardous Area Certified: Carries multiple international safety approvals (Option -05).
• Extended Monitoring Range: 9.0-meter integrated cable for distant installations.
• Connector Protection: Includes a connector protector to safeguard the connection point.
• Industrial Standard Build: 2.0-inch case with 5/8-18 UNF thread for robust mounting.
• Reliable Performance: Operates across a wide -51°C to +177°C temperature range.

Model Configuration: 330707-00-20-90-01-05

• Base Product Identifier: 330707 (11mm Probe, 5/8-18 UNF, No Armor)
• Detailed Option Map:
  • Option A [00]: Unthreaded Body Length
    • Specifies: 0 inches. The probe case is fully threaded.
  • Option B [20]: Case Physical Length
    • Specifies: 2.0 inches. Standard length for common applications.
  • Option C [90]: Attached Cable Length
    • Specifies: 9.0 meters. Maximum standard cable length for long runs.
  • Option D [01]: Connector & Cable Type
    • Specifies: Miniature Coaxial ClickLoc with connector protector. Standard cable (non-FluidLoc).
  • Option E [05]: Safety Certification Level
    • Specifies: Multiple Agency Approvals. Certified for use in designated hazardous areas.

Technical Data Summary

• Electrical Specifications:
  • Probe DC Resistance (9m): 8.5 Ω ± 1.1 Ω
  • Cable: 75 Ω Triaxial, FEP Insulated
• Mechanical & Installation Data:
  • Mounting Thread: 5/8-18 UNF
  • Max Thread Engagement: 0.938 inch
  • Recommended Installation Torque: 15.2 N•m
  • Connector Torque: Hand-tight only (max 0.565 N•m)
  • Cable Bend Radius: Minimum 25.4 mm
• Material Construction:
  • Probe Body: AISI 304 Stainless Steel
  • Tip Material: PPS (Polyphenylene Sulfide)
  • Internal Seal: Viton O-ring

Order Information & Support

• Package Contents: One 9-meter probe with ClickLoc connector and protector.
• Warranty Coverage: Backed by a 12-month manufacturer’s warranty.
• Shipping Methods: Express delivery available via FedEx, UPS, and DHL.
• Contact for Support: WhatsApp: +86 158 8020 0923

Frequently Asked Questions

About Safety Certifications

• Q: What does “Multiple Approvals” mean for the 330707-00-20-90-01-05 probe?
• A: It signifies the probe has been tested and certified by multiple international bodies (like ATEX, IECEx) for use in potentially explosive atmospheres. This is essential for compliance in oil, gas, and chemical plants.

Usage & Specifications

• Q: Does the connector protector come installed?
• A> Yes, model 330707-00-20-90-01-05 includes a connector protector. It helps prevent damage to the sensitive electrical connector during handling and installation before the system cable is attached.
• Q: Can I use this 9-meter probe in a standard Zone 2 / Division 2 area?
• A: Yes, its multiple approvals (option -05) typically include certifications for such areas. Always verify the specific approval certificates against your plant’s area classification requirements before installation.

Purchasing & Service

• Q: Why choose this model over a standard probe for a hazardous area?
• A: Using a non-certified probe in a hazardous area is a safety violation and risk. The 330707-00-20-90-01-05 provides the necessary documentation and intrinsic safety design for legal and safe operation.
• Q: How quickly can you ship a certified probe like this?
• A> We keep critical safety components available. Upon order confirmation, we process swiftly and ship via premium couriers (DHL, FedEx, UPS) to ensure timely delivery, all covered by our 12-month warranty.

Buyer’s Decision Guide

• Step 1: Confirm your location is classified as a hazardous area requiring certified equipment.
• Step 2: Verify you need an 11mm probe with a 5/8-18 UNF mounting thread.
• Step 3: Select 330707-00-20-90-01-05 for a 9-meter cable and critical hazardous area certifications.
• Step 4: For wet environments, note this has a standard cable. Consider if conduit or additional sealing is needed.
• Step 5: Order with confidence for compliant, safe, and reliable operation.
• Certification Questions? Our experts can clarify: +86 158 8020 0923.
