Description

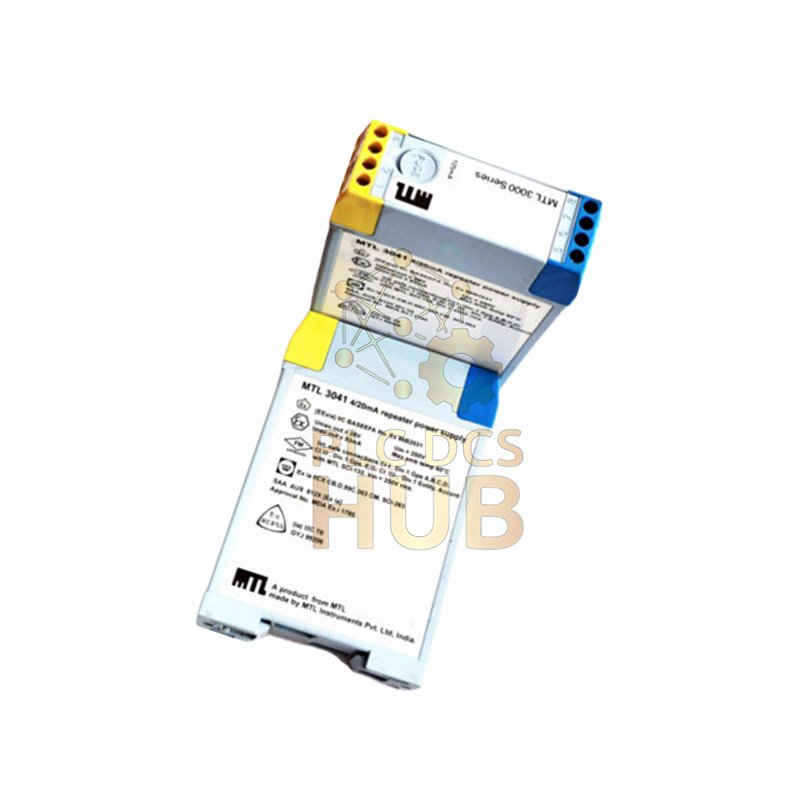

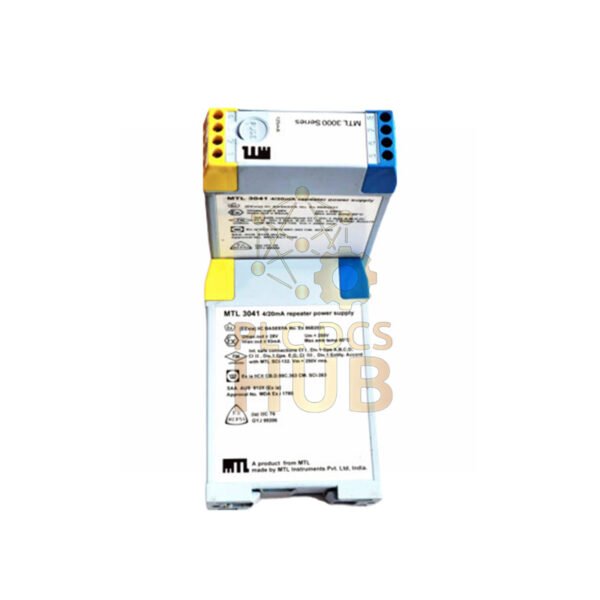

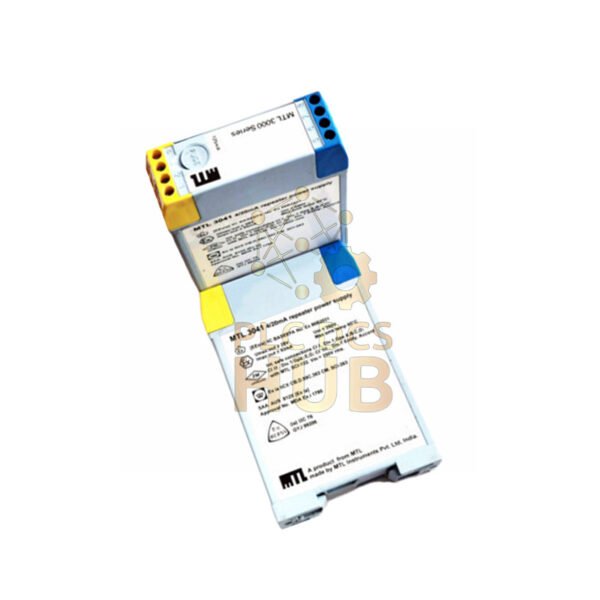

MTL3041: Safe and Accurate 4-20mA Isolator for Hazardous Areas

The MTL3041 provides a floating DC power supply for 2-wire 4-20mA transmitters in hazardous locations. It accurately repeats the signal to a safe-area load. With 17.5V output at 20mA, it powers most transmitters. Its floating design allows field cable earthing. It offers excellent isolation to prevent measurement errors.

Technical Specifications

Brand: MTL
Model: 3041
Input Signal: 4-20mA (0-20mA full range)
Output Signal: 4-20mA
Transmitter Supply: 17.5V min at 20mA (28V max open circuit)
Line Resistance: [(17.5V – transmitter need) x 50] Ω
Load Resistance: 0 to 800Ω
Output Resistance: >1MΩ
Accuracy: Better than 20μA at 20°C
Temperature Drift: <1μA/°C
Ripple: <10μA peak-to-peak
Response Time: 60ms to within 10%
Supply Voltage: 20-35V DC
Current Consumption: 100mA typical at 24V
Power Dissipation: 2.0W typical at 24V
Hazardous Rating: Zone 0, IIC, T4-T6 / Div 1, Group A
Safety Parameters: Um=250V, Voc=28V, Isc=93mA
Weight: 160g

What You Get

1 x MTL3041 signal isolator unit. Shipped fast via FedEx, UPS, or DHL.

Your Guarantee

12-month warranty for peace of mind. We guarantee your satisfaction.

Common Questions

• What is the maximum loop resistance?
  It depends on your transmitter’s voltage need. Use the formula: (17.5V – transmitter voltage) x 50.
• Can it measure 0-20mA signals?
  Yes, the MTL3041 works with both 4-20mA and 0-20mA signal ranges.
• How does it handle ground loops?
  The floating design and high isolation prevent ground loop errors.
• Is external power needed?
  Yes, it requires a 20-35V DC power supply for operation.
• What is the typical response time?
  It takes about 60ms to settle within 10% of the final value after a signal change.
