HIMA F 8621A Coprocessor Module | PES H51q Safety System Upgrade

Description

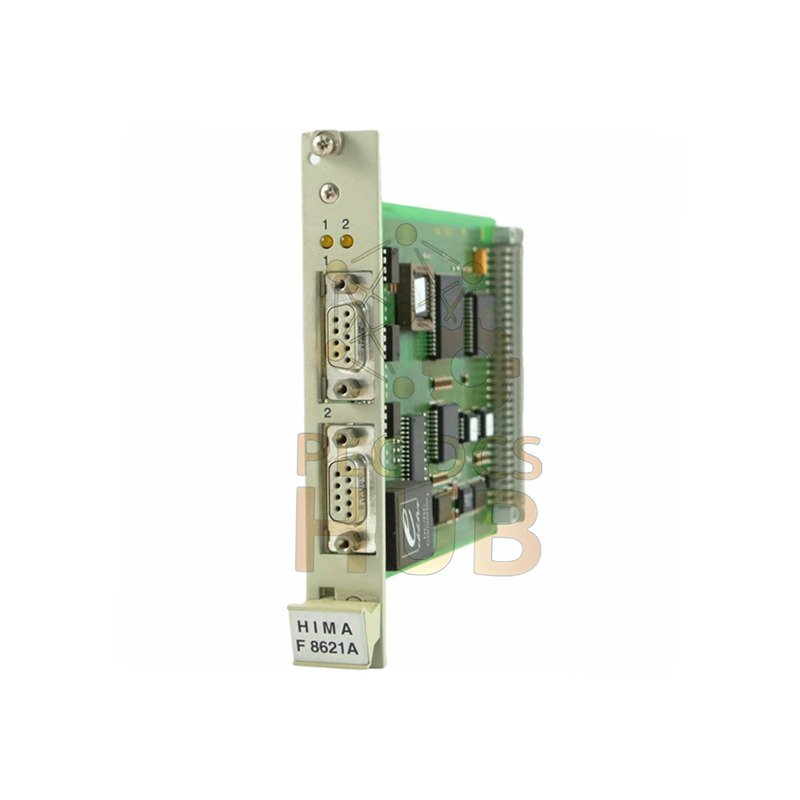

HIMA F 8621A Coprocessor Module for PES H51q

F 8621A High-speed safety system processor. Adds processing power to your safety controller. Ensures reliable operation.

Core Features

• Dedicated HD 64180 microprocessor
• Large 384 KB static memory
• Dual isolated RS485 ports
• Fast data sharing via Dual Port RAM
• Battery-backed memory retention

Technical Specifications

• Brand: HIMA
• Model: F 8621A
• System: PES H51q Safety PLC
• Processor: HD 64180 @ 10 MHz
• Memory: 384 KB CMOS-RAM/EPROM
• Interfaces: 2x RS485 (isolated)
• Baud Rates: 300 to 57,600 bps
• Power: 5V DC, 360 mA
• Size: 4 TE (approx. 84mm)
• Mounting: DIN rail or panel
• Temp Range: 0-60°C operating
• Humidity: Up to 95% non-condensing

Why Choose This Module?

• Enhanced safety with backup processor
• Easy integration with existing HIMA systems
• Flexible communication configurable by DIP switch
• Reliable data with battery memory backup
• Compact design saves control cabinet space

Interface Details

• Pin 3: A/A RxD/TxD-A (Data Line A)
• Pin 4: CNTR-A (Control A)
• Pin 5: C/C DGND (Data Ground)
• Pin 6: VP 5V (Power +)
• Pin 8: B/B RxD/TxD-B (Data Line B)
• Pin 9: CNTR-B (Control B)

Warranty & Shipping

• Full 12-month warranty
• FedEx International Priority
• UPS Worldwide Express
• DHL Global Mail
• Fast dispatch from stock

Configuration Switches

• S1: Sets baud rate for Interface 1
• S2: Sets baud rate for Interface 2
• S3: Configures data format
• S4: Sets network address

Expert Questions Answered

• Can this module work alone?
• No, it needs a main CPU module in the H51q rack.
• How to backup memory data?
• Use the F 7131 power monitoring module.
• What cable type is best?
• Use shielded twisted pair for RS485 connections.
• How to check module health?
• Monitor LED indicators on the main CPU.
• Is special software needed?
• Yes, use HIMA’s programming tools for setup.
