Description
Product Description

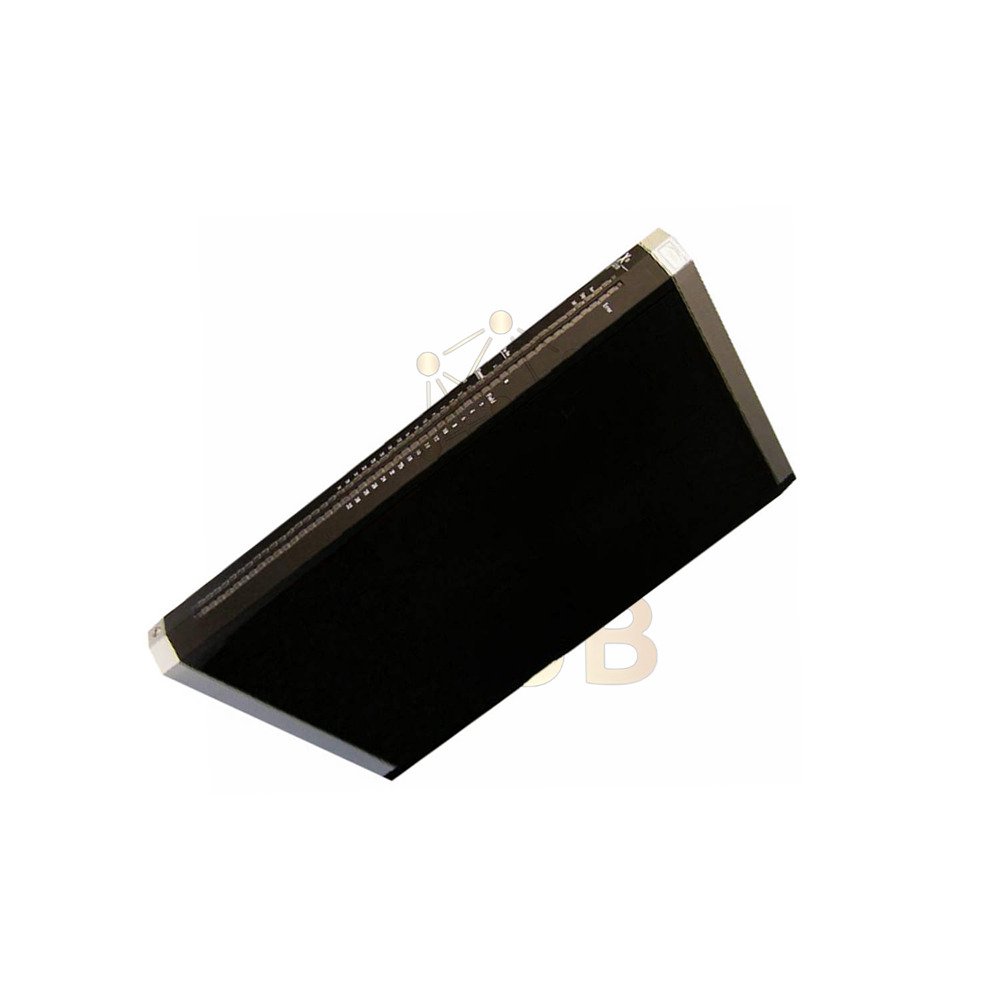

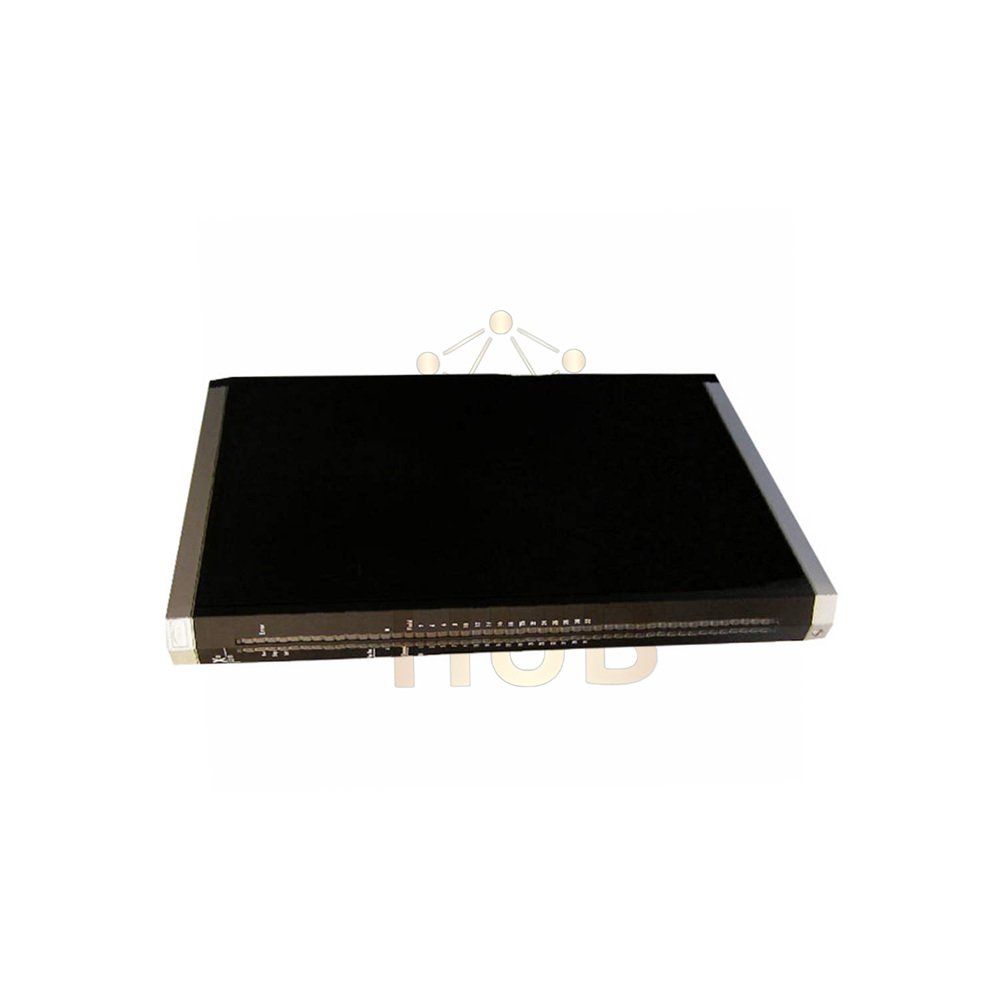

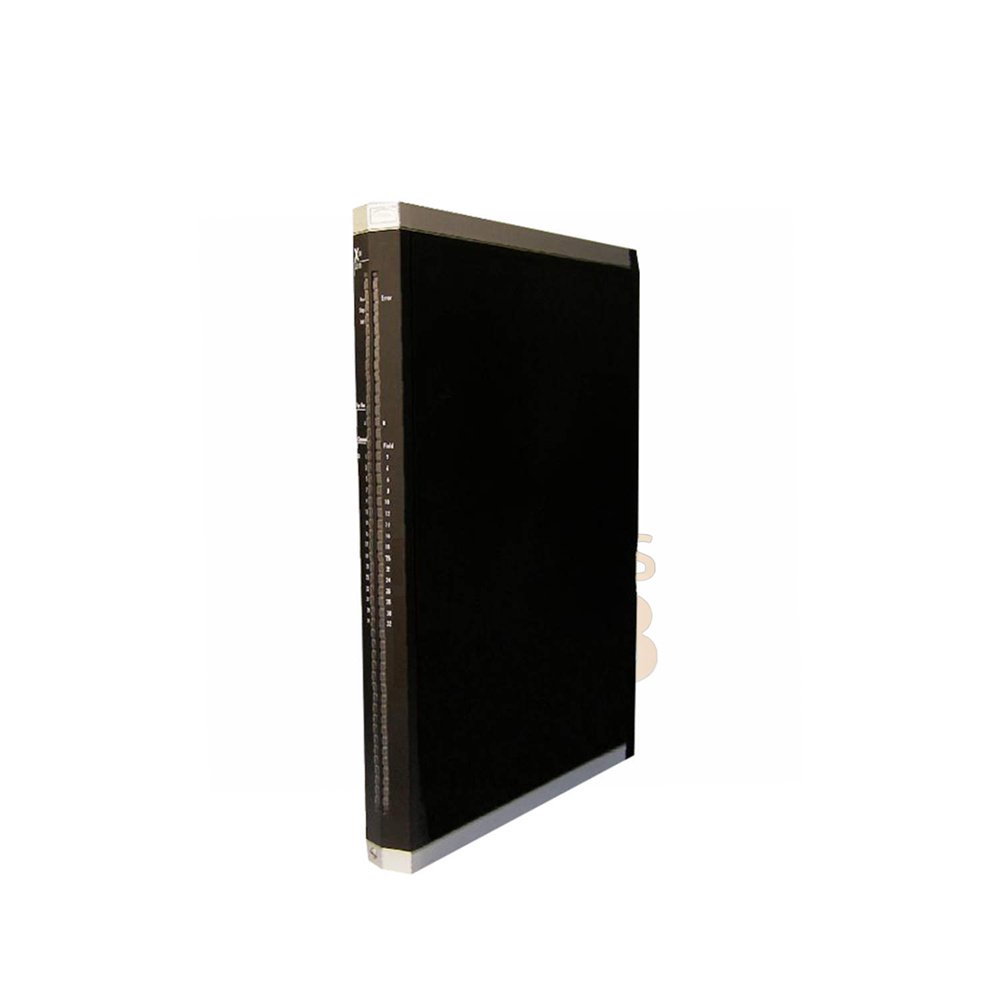

The HIMA X-COM01 is a communication module for the HIMax system. It provides 4 RJ-45 ports and 1 D-Sub connector (9-pole). The module supports up to 6 different protocols. It runs safeethernet and standard fieldbus protocols. Each fieldbus interface uses a pluggable submodule (order separately). This module fits safety-critical industrial communication tasks. Each unit ships with a 12-month warranty.
Model & Brand Information
- Brand: HIMA
- Model: X-COM01
- Product type: HIMax communication module
- Ports total: 4 x RJ-45 + 1 x 9-pole D-Sub
Electrical Specifications
- Supply voltage: 24 V DC (-15% to +20%, SELV or PELV)
- Current input: 0.25 A (min) to 0.46 A (max)
- Protection class: Class III (IEC/EN 61131-2)
- Power supply type: SELV or PELV only
Ethernet Ports (4 x RJ-45)
- Transfer standard: 10BASE-T / 100BASE-Tx
- Duplex modes: Half duplex and full duplex
- Auto negotiation: Yes (automatic speed/duplex detection)
- Auto crossover: Yes (no crossover cable needed)
- IP address: Freely configurable
- Subnet mask: Freely configurable
- Supported protocols: safeethernet
Fieldbus Interfaces (2 x D-Sub 9-pole)
- Number of interfaces: 2
- Connector type: D-Sub socket, 9 poles
- Transfer standard: Depends on fieldbus submodule installed
- Supported protocols: Standard protocols (see HIMA Communication Manual HI 801 101 E)
- Fieldbus submodules: Must specify when ordering (one protocol per interface)
Environmental Requirements
- Operating temperature: 0°C to +60°C
- Storage temperature: -40°C to +85°C
- Relative humidity: 95% max (non-condensing)
- Pollution degree: Degree II (IEC/EN 61131-2)
- Altitude: Below 2000 meters
- Type of protection: IP20 (front panel)
- Housing standard: IP20
Mechanical Specifications
- Dimensions (H x W x D): 310 x 29.2 x 230 mm
- Weight: Approximately 1.3 kg
- Narrow width (29.2mm) fits HIMax rack slots
Installation Guide
- Insert module into HIMax rack slot
- Connect 24V DC supply (SELV or PELV certified)
- Order and install fieldbus submodules before use
- Connect Ethernet cables to RJ-45 ports
- Connect fieldbus cables to D-Sub 9-pole ports
- Configure IP addresses and subnet masks via software
Ordering Information (Critical!)
- Fieldbus submodules are NOT included
- You must specify submodules when ordering X-COM01
- Each fieldbus interface runs only ONE protocol
- Choose submodules based on your fieldbus type (Profibus, Modbus, etc.)
- Contact us for fieldbus submodule options and pricing
Configuration & Diagnostics
- Configure IP addresses freely via HIMax engineering tools
- Auto negotiation and auto crossover simplify setup
- LED indicators on module show communication status
- Diagnostics available through HIMax system software
- Monitor link status on each RJ-45 port
Compatibility
- Designed for HIMax safety system only
- Fits standard HIMax rack slots (310mm height)
- Works with HIMax CPU and I/O modules
- Supports safeethernet for safety communication
- Supports standard protocols via fieldbus submodules
Typical Applications
- Safety controller communication in process plants
- HIMax system integration with ethernet networks
- Fieldbus connection to third-party devices
- Safety-related data exchange between HIMax racks
- Oil, gas, and chemical plant safety systems
Warranty & Shipping
- Warranty: 12 months from shipment date
- Condition: New & original factory packing
- FedEx – Priority shipping available
- UPS – Express worldwide
- DHL – International freight
Package Contents
- 1 x X-COM01 communication module (bare module)
- No fieldbus submodules included (order separately)
- No cables included
- Manual and documentation from HIMA
Professional FAQ
- Do I need fieldbus submodules for the X-COM01 to work? Yes. The X-COM01 has no fieldbus protocol built-in. You must order submodules separately. One submodule per fieldbus interface.
- Can I run multiple protocols on the same fieldbus interface? No. Each fieldbus interface supports only one protocol. If you need two protocols, use both D-Sub ports with different submodules.
- What is safeethernet on the RJ-45 ports? safeethernet is HIMA’s safety communication protocol over standard Ethernet. It allows safety data exchange between HIMax controllers.
- Why is the operating temperature only 0°C to +60°C? The X-COM01 is designed for indoor control rooms. For colder environments, keep the cabinet heated above 0°C.
- Can I use standard CAT5 Ethernet cables with this module? Yes. Use CAT5 or better for 100BASE-Tx. Auto crossover works so straight or crossover cables both work fine.
Buying Guide – Selection Advice
- Confirm you have a HIMax system (not other HIMA series)
- List all fieldbus protocols you need for your application
- Order correct fieldbus submodules for each protocol
- Calculate total slots in your HIMax rack before ordering
- Check ambient temperature: Must stay within 0°C to +60°C
- Use SELV or PELV 24V DC power supply only
- Order spare X-COM01 for critical safety networks
- Verify IP address range and subnet plan before configuration
- Keep cabinet below 2000m altitude (standard conditions)
- Contact us for fieldbus submodule part numbers and pricing
