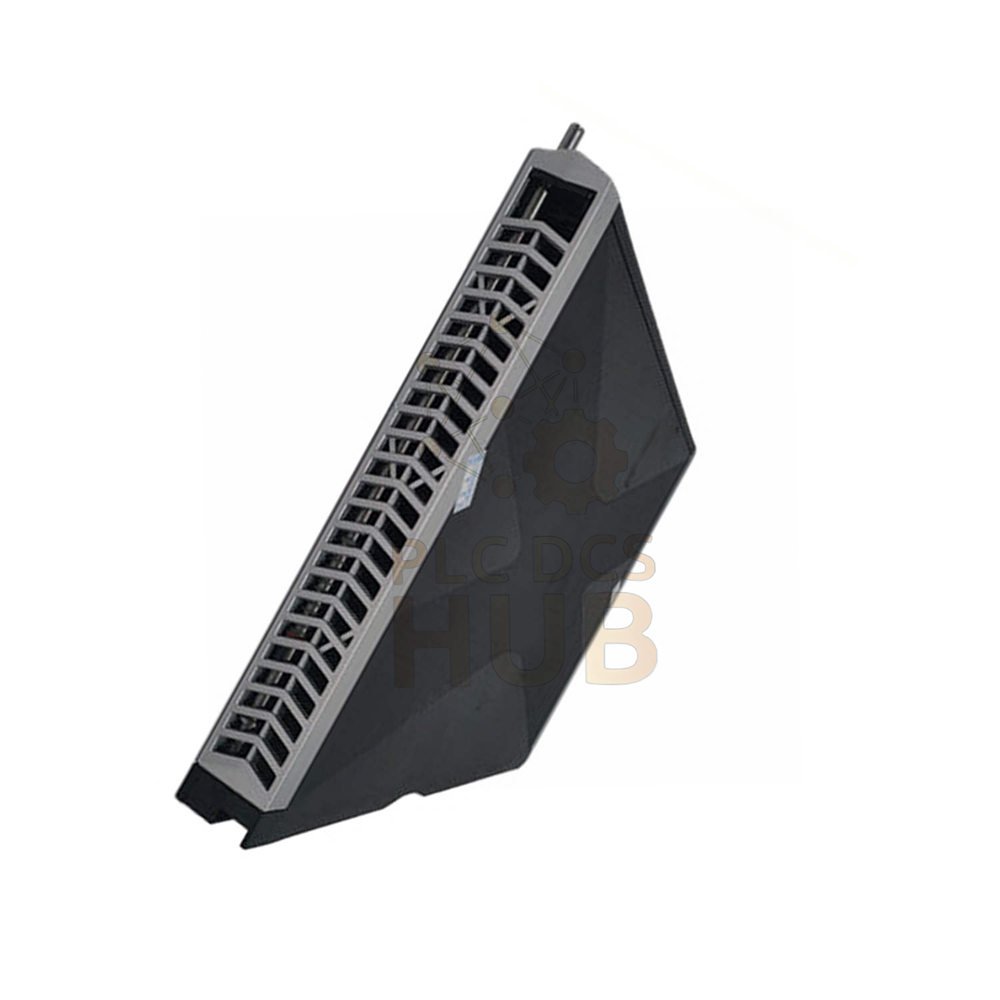

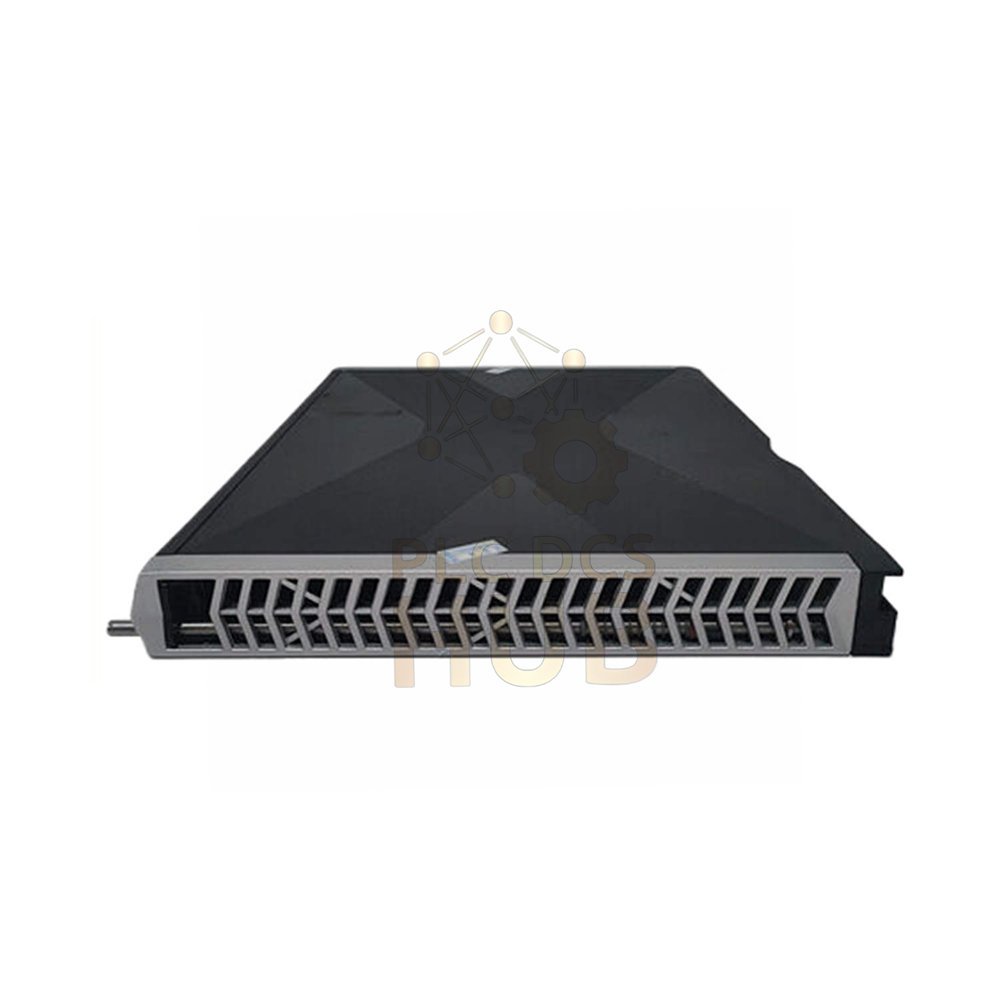

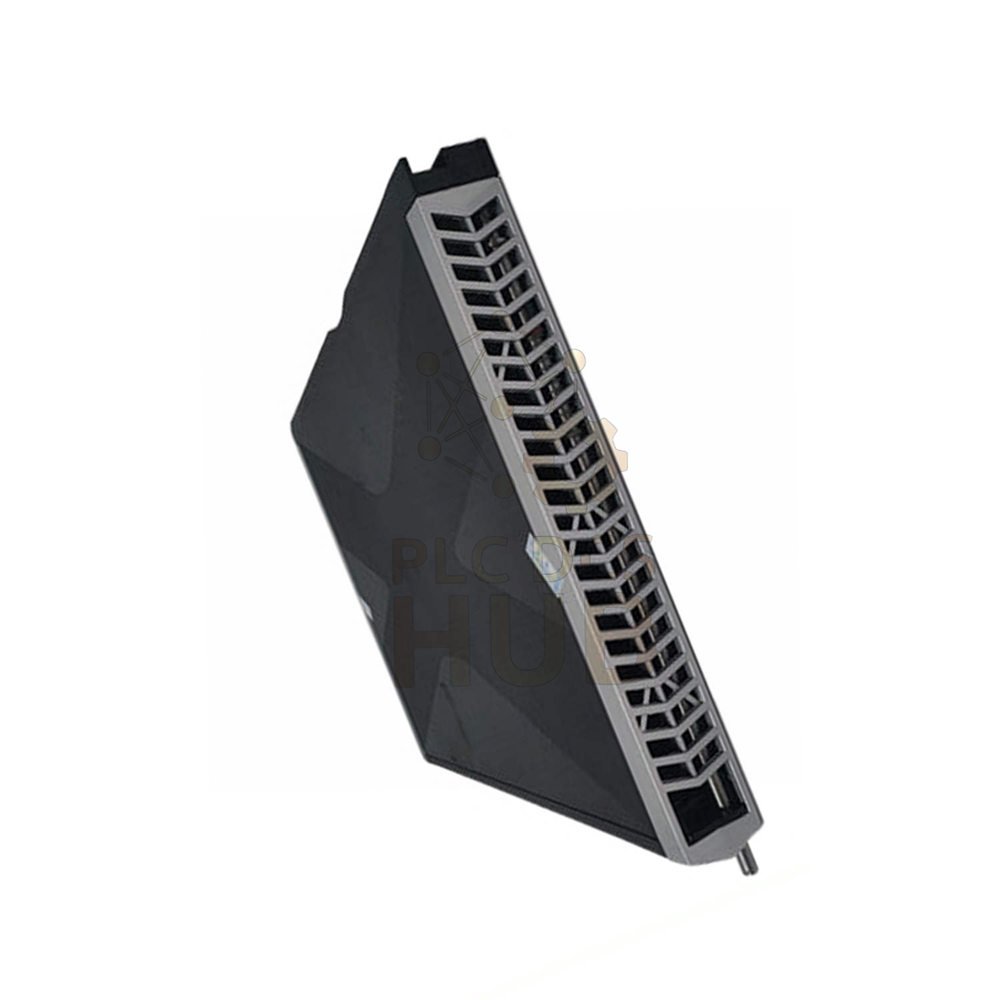

HIMA X-DI3201 | 32-Channel Analog Input Module SIL3

Description

Product Overview

• Brand: HIMA
• Model: X-DI3201 (X-DI 32 01)
• Analog input module for HIMax programmable electronic system (PES).
• Evaluates 32 analog input signals with common ground AI-.
• TÜV-certified for SIL 3 (IEC 61508, IEC 61511, IEC 62061).
• Meets Cat. 4 and PL e (EN ISO 13849-1).
• Insert into any base plate slot except system bus slots.
• Galvanic isolation from system bus and 24V DC supply.

Technical Specifications

• Supply voltage: 24V DC (-15% / +20%), SELV, PELV, ripple ≤5%.
• Current input (module): 500 mA min, 1.5 A max (with shorted transmitter supplies).
• Current per channel: 0 mA min (no transmitter supply), 30 mA min (with transmitter supply).
• Nominal input range: 0/4…20 mA.
• Operating range: 0…22.5 mA.
• Digital resolution: 12-bit.
• Shunt for current measurement: 200 Ω.
• Max permitted current via shunt: 50 mA.
• Withstand voltage: ≤10V DC at input.
• Interference suppression: >60 dB (common mode 50/60 Hz).
• Sampling time: 2 ms.
• Measured value renewal: equals user program cycle time.
• Settling time to 99%: 15 ms.
• Accuracy over -10°C…70°C: ±0.15% of final value.
• Transmitter supply per channel: 26.5V DC (+0/-15%), max 30 mA.
• Transmitter monitoring thresholds: undervoltage 22.5V DC, overvoltage 30V DC.
• Max short-circuited transmitter supplies simultaneously: 12.
• If >12 supplies shorted >3 seconds, all transmitter supplies shut off.
• Auto-restart after overload disappears within 30 seconds.
• Max load (transmitter + line): ≤750 Ω at 22.5 mA.
• Operating temperature: 0…+60 °C.
• Storage temperature: -40…+85 °C.
• Humidity: ≤95% non-condensing.
• Protection rating: IP20.
• Dimensions (H x W x D): 310 x 29.2 x 230 mm.
• Weight: approx. 1.4 kg.

Installation & Wiring

• Use 8 cable plugs with 12 poles each for field connection.
• Wire cross-section: 0.2…1.5 mm² (solid, stranded, or with ferrule).
• Stripping length: 6 mm.
• Screwdriver: Slotted 0.4 x 2.5 mm.
• Tightening torque: 0.2…0.25 Nm.
• Refer to System Manual (HI 801 001 E) for slot reservation details.

Diagnostic Capabilities

• Monitors transmitter supply undervoltage and overvoltage.
• Detects short circuits on up to 12 channels simultaneously.
• Automatic shutdown and restart protect the module.
• User program receives updated measured values each cycle.

Certifications & Compatibility

• TÜV-certified for SIL 3 per IEC 61508, IEC 61511, IEC 62061.
• EN ISO 13849-1: Cat. 4 and PL e.
• Designed for HIMax PES (except system bus slots).
• Galvanic separation from system bus and 24V DC supply.
• Common ground AI- for all 32 channels.

Typical Applications

• Safety instrumented systems (SIS) up to SIL 3.
• Process automation with 0/4-20 mA transmitters.
• Emergency shutdown (ESD) and burner management.
• Oil, gas, chemical, and power generation industries.
• Works with 3300 XL 11 mm Proximity Probes for position monitoring.

Package Contents

• HIMA X-DI3201 analog input module – 1 unit.
• No cable plugs or transmitter supplies included.
• System manual available separately (HI 801 001 E).

Warranty & Shipping

• 12-month warranty from date of shipment.
• Covers manufacturing defects under normal use.
• Shipping partners: FedEx, UPS, DHL.
• Express delivery with tracking number provided.

FAQ – Frequently Asked Questions

• What is the maximum number of shorted transmitter supplies allowed?
• Up to 12 supplies can be shorted simultaneously for less than 3 seconds.
• What happens if I short more than 12 supplies?
• All transmitter supplies turn off after 3 seconds. They restart automatically if the overload clears within 30 seconds.
• Can I use this module with a 2-wire transmitter?
• Yes. Each channel provides a 26.5V DC transmitter supply, max 30 mA.
• Is the module hot-swappable?
• No. Refer to the HIMax system manual for replacement procedures.
• What is the settling time for a changing input signal?
• 15 ms to reach 99% of the final process value.
• Does the module work with active (loop-powered) sensors?
• Yes, as long as the total loop load stays ≤750 Ω at 22.5 mA.

Expert Tips & Selection Guide

• Choose this module if you need 32 channels with individual transmitter supplies.
• Use for SIL 3 safety loops where common ground AI- is acceptable.
• For isolated channels, consider HIMA X-AI modules with per-channel isolation.
• Do not exceed 12 shorted transmitter supplies to avoid global shutdown.
• Pair with 11 mm Proximity Probes for vibration or position monitoring.
• If your transmitter draws >30 mA, use an external power supply.
• Verify total wire resistance keeps load ≤750 Ω at 22.5 mA.
