Description
Product Introduction

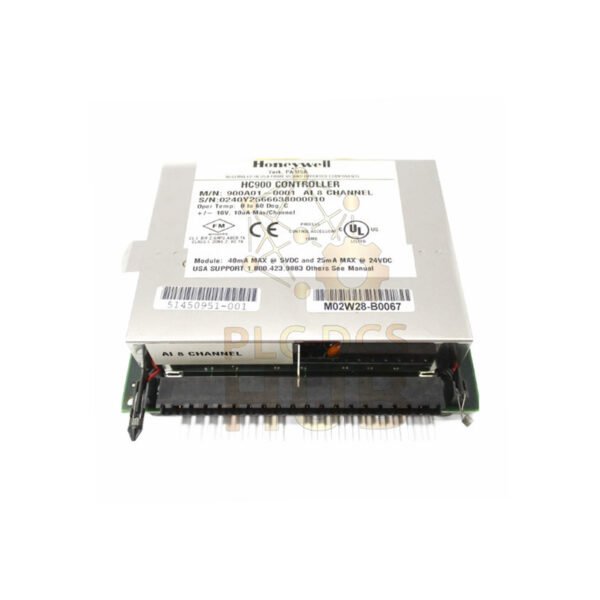

- Honeywell 900A01-0001 is part of the HC900 controller family.
- Built for accurate industrial process control.
- Handles analog signals with high stability.
- Supports modern and legacy networks.
- Designed for long service life.
Main Advantages
- Fast response improves control accuracy.
- Wide signal support reduces extra hardware.
- Strong noise resistance protects data quality.
- Compact size saves panel space.
- Trusted Honeywell industrial design.
Electrical & Signal Performance
- Voltage inputs support 0-10V and 1-5V.
- Current inputs support 4-20mA and 0-20mA.
- Extended measurement range reaches ±10V.
- Current range reaches ±20mA.
- 12-bit resolution ensures smooth signal reading.
Speed & Accuracy
- Sampling speed up to 100 ms per channel.
- Stable readings during load changes.
- Low drift over temperature range.
- High repeatability in continuous operation.
Power & Environmental Limits
- Powered by 24V DC with ±10% tolerance.
- Low power demand supports dense cabinets.
- Operates from -20°C to 60°C.
- Handles 5% to 95% humidity.
- Designed for non-condensing environments.
Communication Capability
- Modbus RTU enables simple serial control.
- Ethernet/IP supports plant-wide networking.
- Easy integration with PLC and DCS systems.
- Supports fast data exchange.
Mechanical Details
- Size: 12.5 x 8.5 x 4.5 inches.
- Metric size: 318 x 216 x 114 mm.
- Weight: 0.77 lbs.
- Light structure eases installation.
Typical Application Areas
- Process automation lines.
- Energy and utility systems.
- Chemical production plants.
- Oil and gas monitoring.
- OEM control panels.
Installation & Service
- DIN rail or panel mounting supported.
- Clear terminals reduce wiring mistakes.
- No special tools required.
- Easy replacement shortens downtime.
Warranty & Logistics
- 12-month warranty included.
- Quality checked before shipment.
- Worldwide delivery via FedEx.
- UPS and DHL shipping available.
Professional FAQ
- Is this controller good for mixed signal systems?
- Yes. It handles voltage and current inputs together.
- Can it work in high humidity plants?
- Yes. It supports up to 95% non-condensing humidity.
- Is Ethernet required for operation?
- No. Serial communication works independently.
- How do I choose between this and smaller controllers?
- Choose this for higher accuracy and network needs.
- Does it suit long-term continuous operation?
- Yes. It is built for 24/7 industrial use.
Buying Tips
- Confirm input signal types before ordering.
- Check network protocol requirements.
- Plan spare units for critical systems.
- Select original Honeywell products only.
