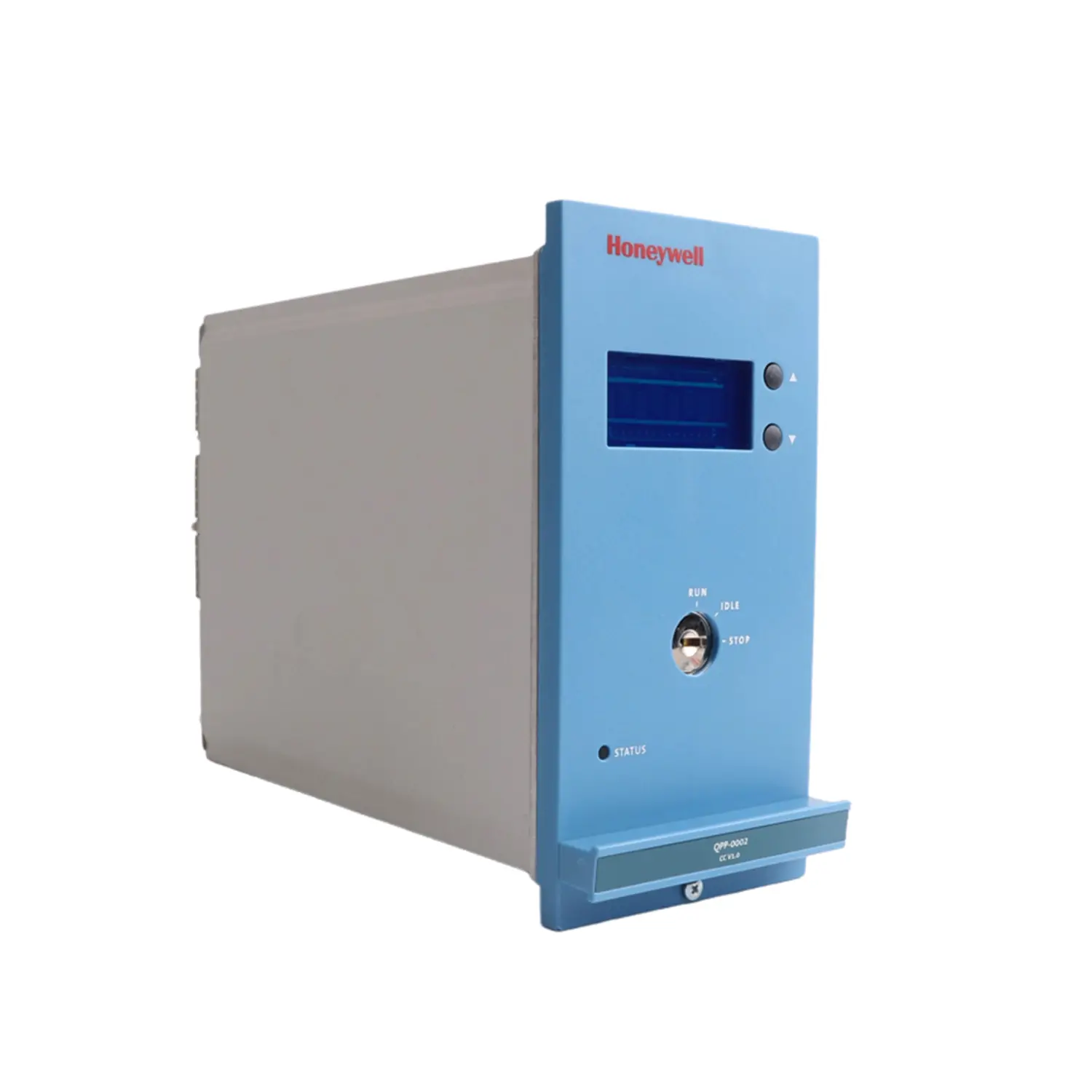

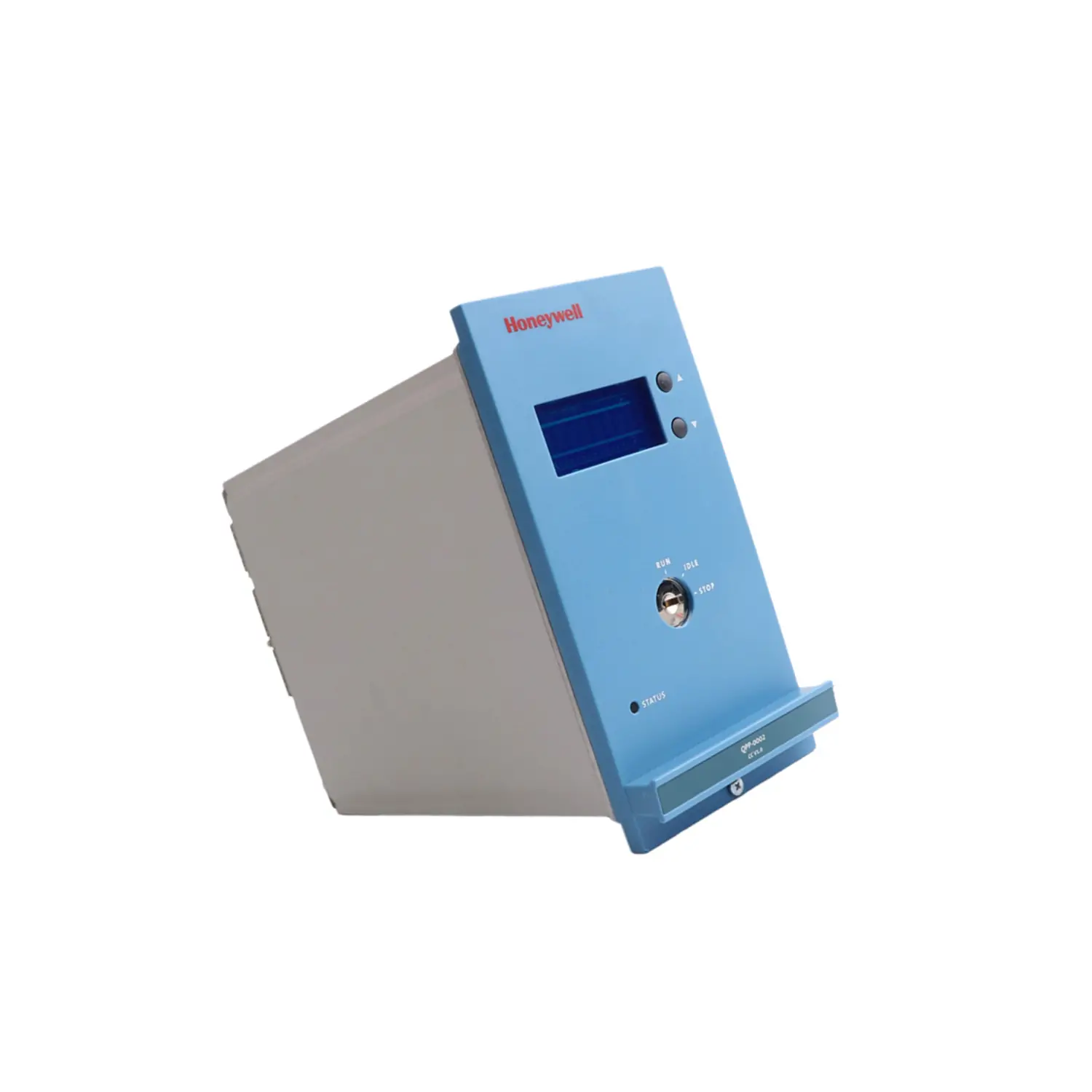

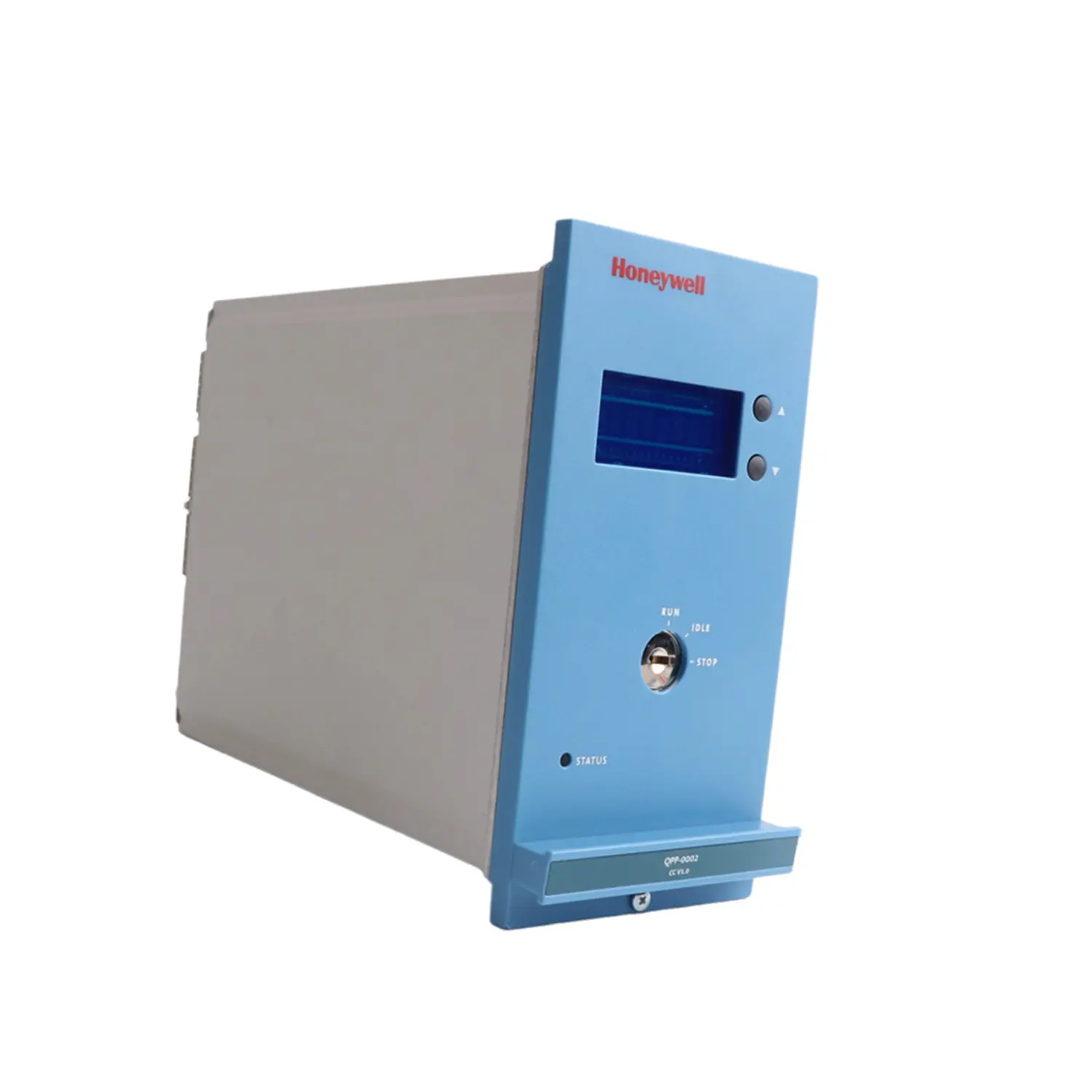

Honeywell Safety Manager Quad Processor FC-QPP-0002

Description

Honeywell FC-QPP-0002 QPP-0002 Quad Processor – Redundant Control for Critical Systems

Core Capabilities

• ⚡ Dual Sync Processors: Parallel task execution for zero lag
• ⚡ 1oo2D Redundancy: Fail-safe operation in power plants/oil rigs
• ⚡ Flash + Battery RAM: No data loss during outages (BKM-0001 backup)
• ⚡ Watchdog Monitoring: Detects errors in <10ms

Technical Specs

• Model: QPP-0002 (FC-QPP-0002)
• Temp Range: -5°C to +70°C (operation)
• Power: 24V DC (±15-30%), 25mA max | 5V DC (±5%), 1.2A max
• I/O: 2 outputs (redundant/non-redundant), 750mA per channel
• Certifications: CE, UL, CSA, TUV, FM
• Size: 176×88.5x212mm | Weight: 1.3kg

Industrial Applications

• ✅ Oil & Gas: Emergency shutdown (ESD) systems
• ✅ Power Generation: Turbine control redundancy
• ✅ Chemical Plants: High-speed batch processing

Safety First!

WARNING: Replace ONLY when key switch is in STOP position.

Package & Support

• ???? Includes: QPP-0002 module, installation guide
• ???? 12-month warranty
• ???? Ships via FedEx/DHL/UPS – 3-5 days globally

FAQs

Q: Compatible with Experion PKS?
A: Yes – seamless integration.

Q: Battery backup duration?
A: 72+ hours (with BKM-0001 module).
