Description
Precision Analog Signal Master

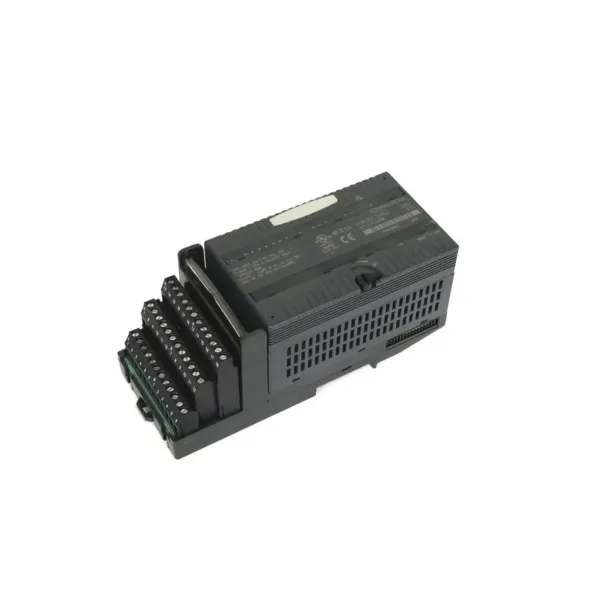

The GE Fanuc IC200ALG230 is a 4-channel analog input module for VersaMax systems. Handles ±10V DC and 4-20mA signals with 12-bit accuracy – ideal for precise industrial measurements.
Core Specifications
- ⚡ Inputs: 4 channels (voltage/current)
- ???? Voltage Range: ±10V DC (bipolar) / 0-10V DC (unipolar)
- ???? Resolution: 12-bit (2.5mV/4μA per count)
- ⏱️ Speed: 0.4ms update rate + 5ms filter
Smart Configuration
- ???? Mode Jumpers: Voltage/Current + Unipolar/Bipolar
- ????️ Isolation: 250V AC continuous
- ???? Error Handling: Hold last value or preset safety state
Industrial Applications
- ???? Chemical process pressure/temp monitoring
- ???? Water treatment pH/flow rate sensing
- ⚡ Power plant voltage/current analysis
Installation Notes
- ⚠️ Grounding: Shield cables at source/module
- ???? Power: 5VDC @125mA (backplane only)
- ???? Terminals: Use IC200TBM/CHS series carriers
Package & Support
- ???? IC200ALG230 module + configuration guide
- ???? 12-month performance warranty
- ???? Shipping: FedEx/UPS/DHL – global delivery
