Description

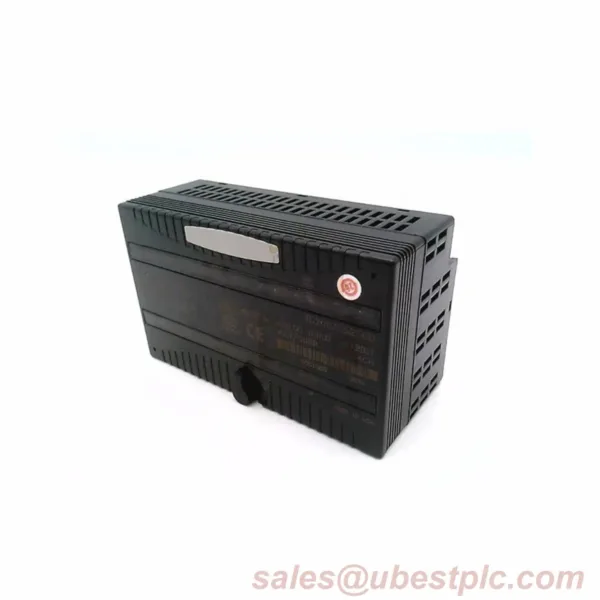

GE Fanuc IC200ALG322 Analog Output Module
4-channel 12-bit precision module for Versamax PLC systems. Industrial-grade performance with advanced diagnostics.
Technical Specifications
| Brand | GE Fanuc |
| Model | IC200ALG322 |
| Series | Versamax |
| Voltage Range | ±10.24V DC |
| Power Consumption | 160mA (backplane) 210mA @12V |
| Isolation Rating | 250VAC continuous 1500VAC (1 min) |
Installation Guide
- Check serial number before mounting
- Use external power supply for outputs
- Ensure ≥5000Ω resistive load
- Maintain ambient temp <60°C
- Avoid high RF emission areas
Diagnostics & Maintenance
- Continuous power loss monitoring
- Dual LED status indicators
- Monthly accuracy calibration check
- Annual isolation resistance test
Shipping Information
???? Global Delivery: FedEx | UPS | DHL
Processing: 24-48 hours
Tracking: Provided for all orders
FAQ
Q: Does it need external power?
A: Outputs require external power; backplane powers control
Q: Temperature limits?
A: 0-60°C operational range (25-60°C for peak accuracy)
Q: Compatible with other PLCs?
A: Designed for Versamax systems only
Q: RF interference protection?
A: 70dB channel isolation – avoid high emission areas
