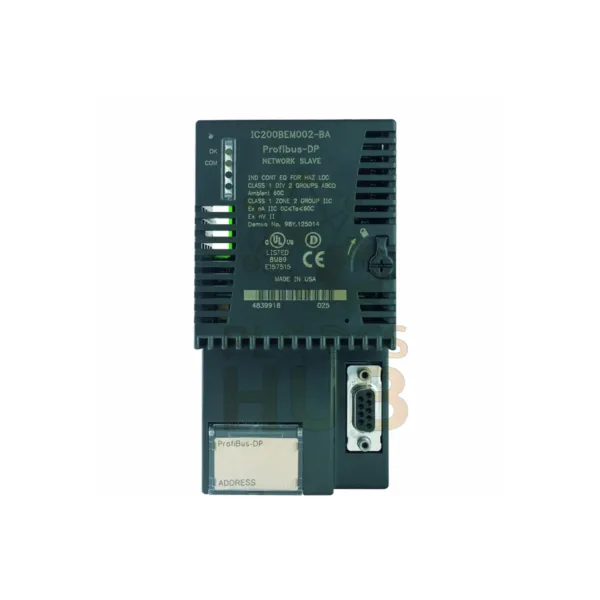

IC200BEM002 | GE Fanuc VersaMax Network Communications Module

Description

IC200BEM002 Network Communication Module: Reliable Industrial Connectivity

The IC200BEM002 is a network communication module by GE Fanuc, part of the trusted Versamax series. It provides fast and stable data transfer for industrial systems, using Profibus DP cables. Easy to install on DIN rails, it features LED indicators for quick status checks. Ideal for factory automation, it handles high-volume data with flash-upgradable firmware via PC. Indoor use only—keep away from heat.

Technical Data: Core Specifications

• Brand: GE Fanuc
• Model: IC200BEM002
• Series: Versamax
• Data Rate Range: 9.6 Kbaud to 12 Mbaud
• Supported Stations: Up to 32 (no repeater) or 125 (with repeater)
• I/O Data Capacity: 384 bytes total
• Output Signal: Profibus DP protocol
• Processing Power: 244 bytes input/output at once
• Electrical Characteristics: 460 mA current from 5V bus
• Input Impedance Accuracy: 135-165 ohms
• Connector Type: 9-Pin D-sub
• Wire Gauge: Over 0.64 mm
• Firmware: Ver 1.00, upgradable via PC serial port
• Environmental Conditions: Indoor use only; avoid heat sources
• Enclosure: Open design

Installation Guide

• Mount the module on a DIN rail.
• Ensure it is unlocked before starting.
• Align the 9-pin D-sub connector and click it into place.
• Connect using Profibus DP cable.

Diagnostics & Maintenance

• Use the front LEDs for quick checks: Power LED shows module power, and COM LED indicates communication status.
• For firmware issues, upgrade via PC serial port.
• Regular cleaning keeps performance high.

Packaging List

• IC200BEM002 module (1 unit)
• No certificates or warranty documents included
