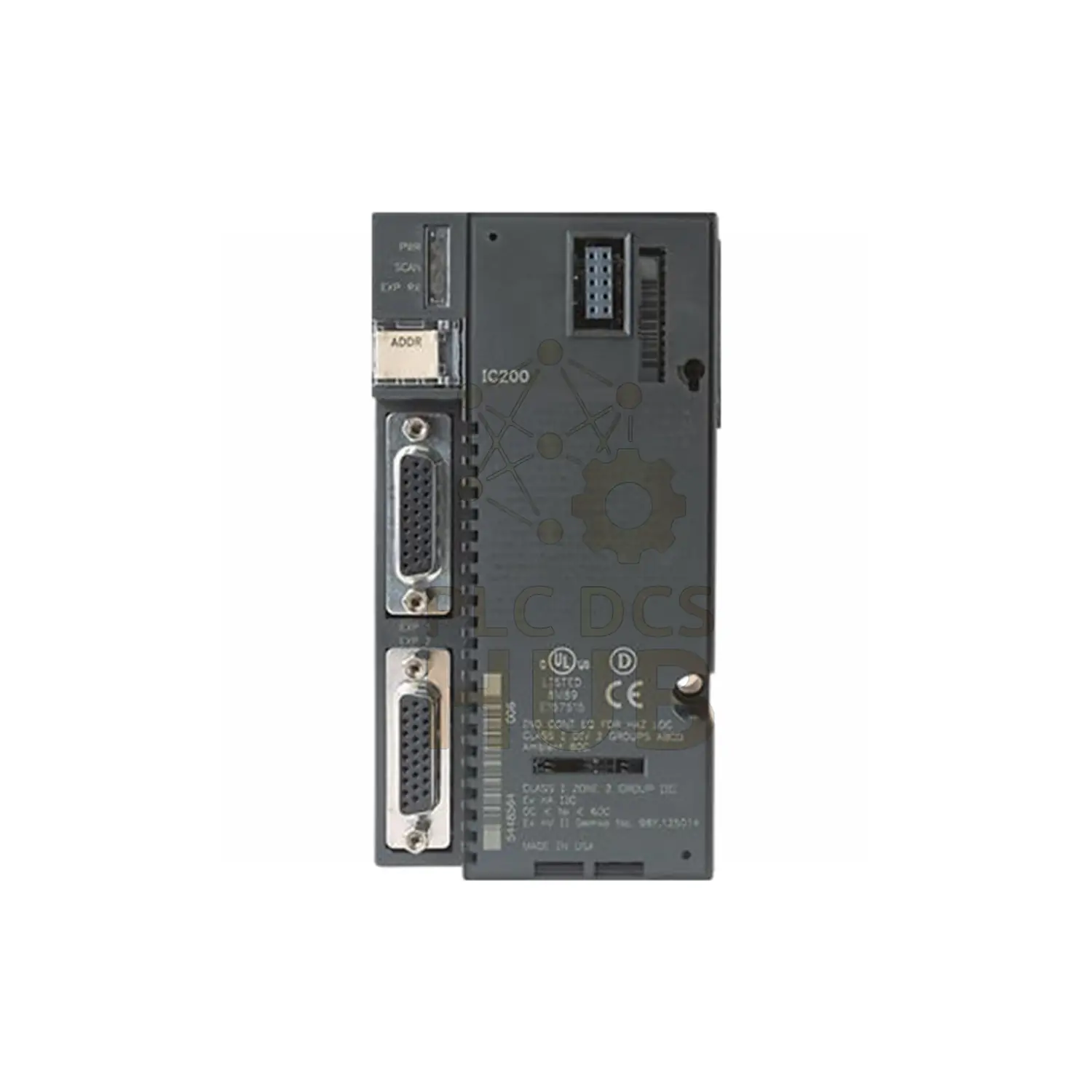

IC200ETM001 Versamax Expansion Connector: Expand Your PLC System Capacity
Product Overview
This expansion connector module from GE Fanuc’s Versamax series enables PLC system expansion. It connects to the CPU’s left side via DIN rail mounting, supporting up to 7 additional racks (56 I/O modules). Features include diagnostic LEDs and firmware update capability.
Key Specifications
- Brand: GE Fanuc / GE Intelligent Platforms
- Model: IC200ETM001 (Bulletin IC200)
- Type: Expansion Connector
- Connection: 26-pin female + 16-pin male serial
- Max Racks: 7 receiver modules
- Data Rate: 250 bits/sec
- Isolated Cable: 15 meters max
- Non-Isolated Cable: 750 meters max
- Operating Temp: 0°C to 60°C
Installation Guide
Mount vertically/horizontally on DIN rail. Attach directly to left side of VersaMax CPU. Ensure proper alignment with receiver modules. Use included mounting hardware.
Compatibility
Works with Versamax systems including:
- Bus Receiver Modules: IC200ERM001 (isolated), IC200ERM002 (non-isolated)
- VersaMax CPUs and Network Interface Units (NIUs)
- All Versamax power supply units
LED Indicators
- Power LED: Steady on = 5V DC power active
- EXP TX LED: Blinking = communication active with receiver modules
Packaging & Warranty
- Contents: 1x IC200ETM001 module, mounting hardware
- Warranty: 12-month manufacturer guarantee
- Shipping: FedEx, UPS, DHL express options
Industrial Applications
- Assembly line control expansions
- Manufacturing cell extensions
- Distributed I/O systems
- Process control upgrades
Frequently Asked Questions
Q: What’s the maximum distance between modules?
A: Up to 750 meters with non-isolated receivers
Q: Can I mix isolated/non-isolated modules?
A: Yes, but cable length limited to isolated specs (15m)
Q: How many I/O points per rack?
A: Each rack supports up to 8 I/O modules
