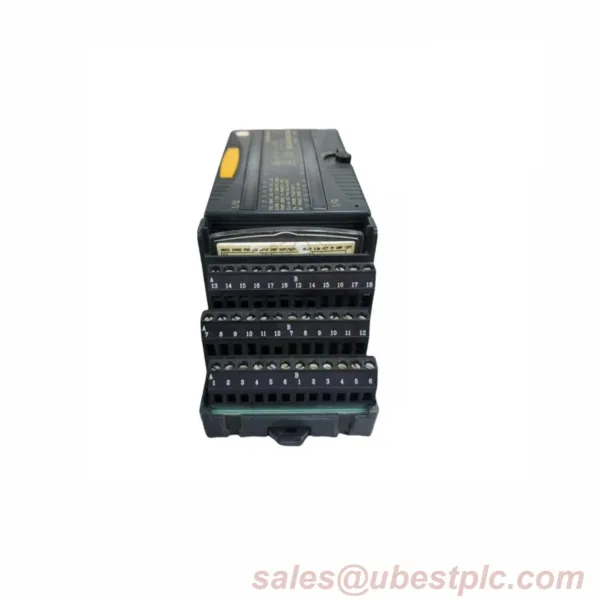

IC200MDD842 Versamax I/O Module: Power Your Machine Control
Compact Control Solution
This 32-point mixed I/O module combines inputs and outputs in one device. Made by GE Fanuc for Versamax systems. Perfect for controlling machines in tight spaces. Handles up to 16 inputs and 16 outputs simultaneously.
Key Features
- Instant fault detection with LED indicators
- Ultra-fast 0.5ms response time
- Built-in protection against shorts/overloads
- Works with both positive/negative logic
Technical Specifications
- Brand: GE Intelligent Platforms/GE Fanuc
- Model: IC200MDD842 (Bulletin IC200)
- Type: Discrete Mixed I/O Module
- Voltage: 24V DC
- Current: 0.5A per point @30V DC
- I/O Groups: 3 (16 outputs + 8 inputs + 8 inputs)
- Upgrade Version: IC200MDD842B
- Response Time: 0.5 milliseconds
Easy Installation
Mounts directly on Versamax DIN rail carriers. No special tools needed. Connect wiring to labeled terminals. Green LEDs confirm proper operation.
Works With
- All Versamax CPUs and power supplies
- Network Interface Units (NIUs)
- Versamax expansion racks
Protection & Safety
- Electronic short-circuit protection
- Overcurrent shutdown
- Free-wheeling diodes
- CE certified for industrial use
What’s Included
- 1x IC200MDD842 module
- Terminal labeling stickers
- Warranty: 12-month guarantee
- Shipping: FedEx, UPS, DHL options
Common Questions
Q: What do the LED colors mean?
A: Green = active input/output, Amber = fault condition
Q: Can I use this without upgrading?
A: Basic functions work, but upgrade to IC200MDD842B for full features
Q: How many machines can one module control?
A: Controls multiple devices simultaneously through its 32 points
