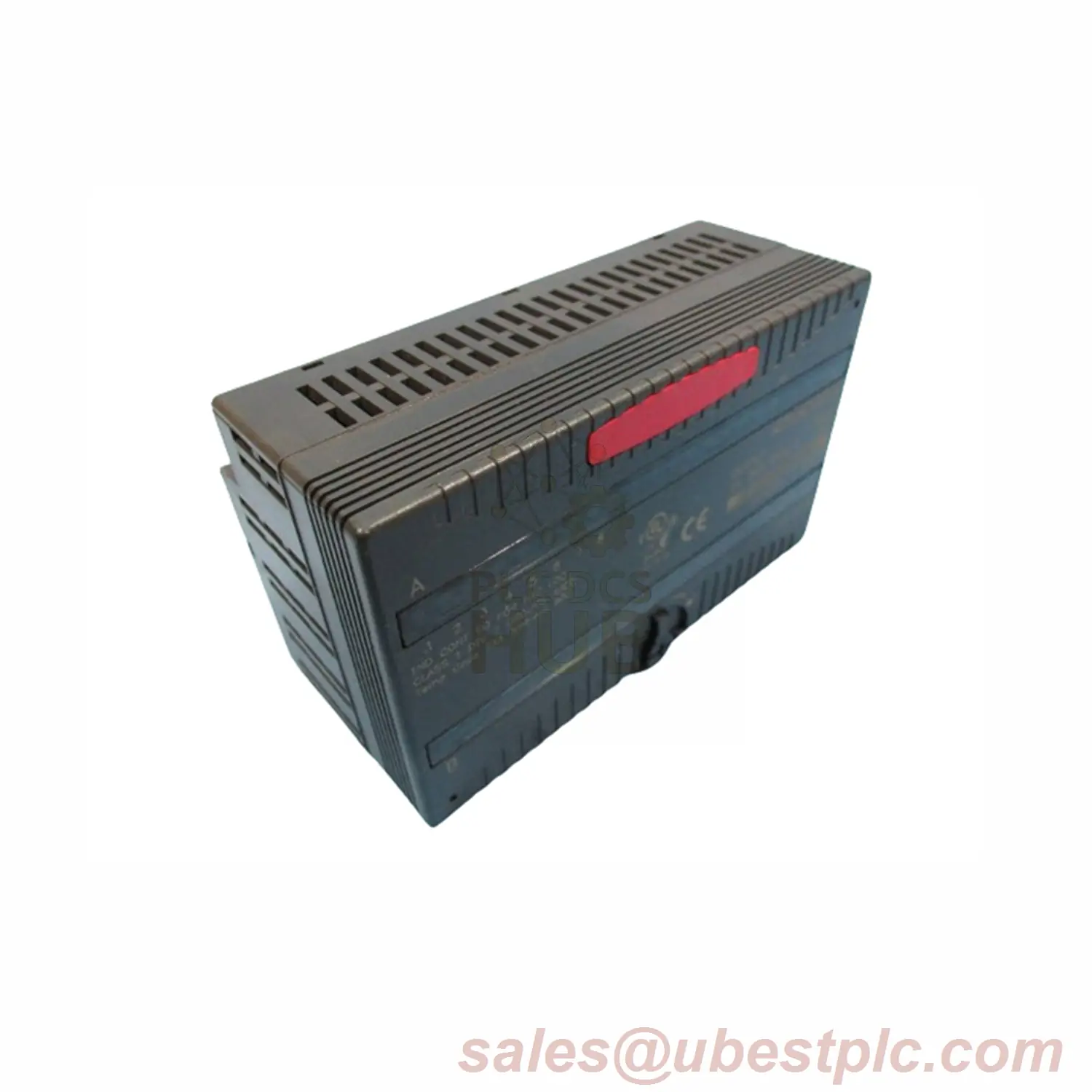

IC200MDL143 120V AC Input Module
DESCRIPTION
GE Fanuc’s IC200MDL143 offers 8-point isolated AC input for Versamax systems. Features individual channel isolation and hot-swap capability. Compact design (110×66.8x50mm) with LED diagnostics. Backplane-powered – no external supply needed.
TECHNICAL DATA
| Brand | GE Fanuc |
| Model | IC200MDL143 |
| Series | Versamax |
| Input Points | 8 isolated |
| Voltage | 120V AC |
| Isolation Rating | 1500V AC |
| Backplane Power | 50mA @5V DC |
INSTALLATION GUIDE
- Snap into Versamax I/O carriers
- No external power required
- Supports hot-swap replacement
- Wire sensors/switches directly
- Max voltage: 132V AC
DIAGNOSTICS & MAINTENANCE
- Monitor via 9 status LEDs (8 inputs + backplane)
- Check isolation annually: 1500V AC
- Verify response time: ≤1 cycle
- Clean terminals during shutdowns
PACKAGING LIST
- IC200MDL143 Input Module
- Mounting accessories
- Installation guide
SHIPPING METHODS
Global express delivery via FedEx, UPS, DHL
FAQ
Q: Are inputs electrically isolated?
A: Yes! 8 individually isolated channels.
Q: Can I replace without shutdown?
A: Yes. Supports hot-swap replacement.
Q: What’s the isolation rating?
A: 1500V AC between points and ground.
