Description
Overview

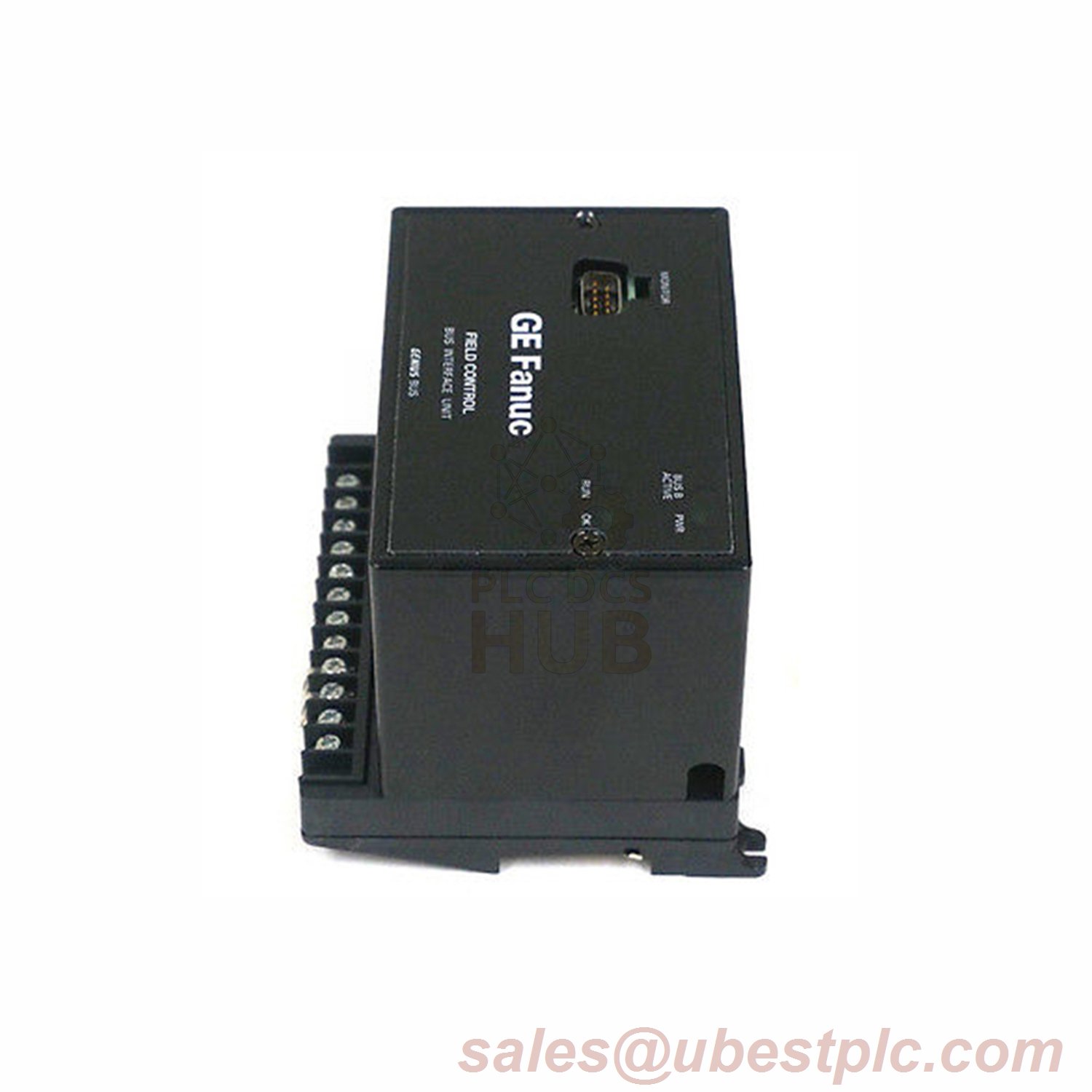

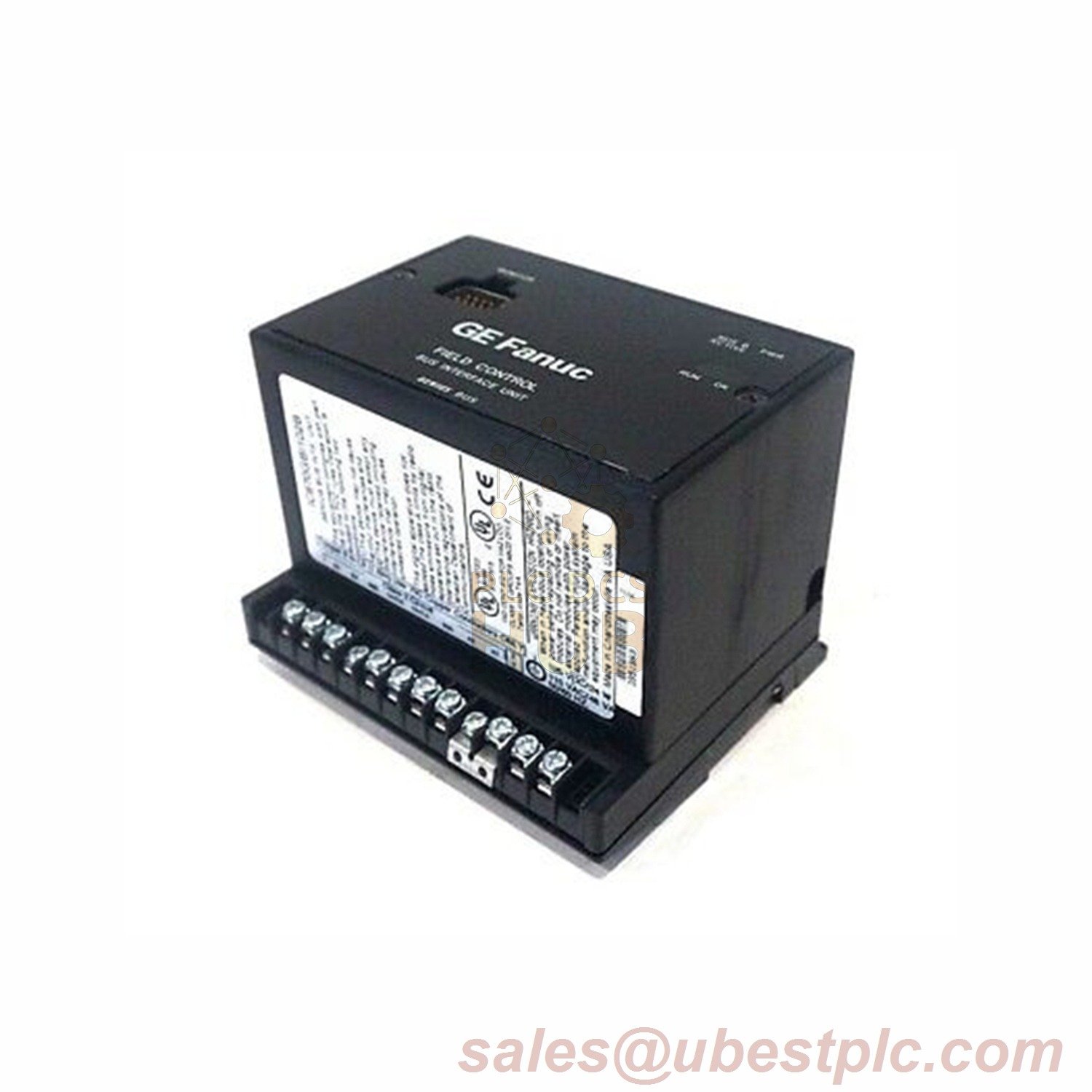

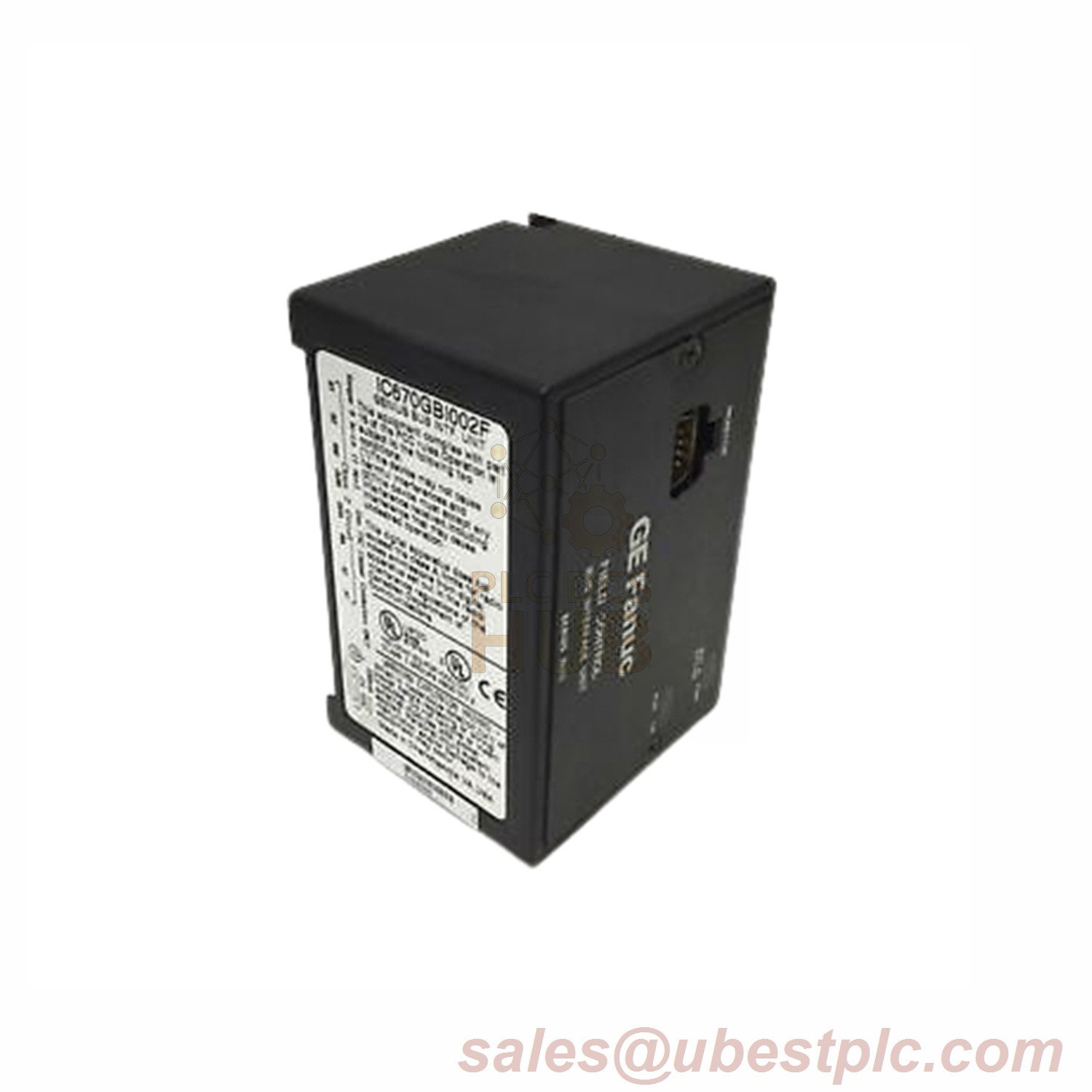

The IC670GBI002 is a Bus Interface Unit (BUI) manufactured by GE Fanuc, part of the Field I/O Control series. It is designed for compatibility with the IC670G and IC670GBI series, offering seamless integration into automation systems. This BUI is ideal for applications requiring reliable data transfer between controllers and I/O modules, supporting the Genius Bus protocol for efficient communication.
Technical Data
| Specification | Details |
|---|---|
| Manufacturer | GE Fanuc |
| Part Number | IC670GBI002 |
| Series | Field I/O Control |
| Component Type | Bus Interface Unit (BUI) |
| Compatibility | IC670G and IC670GBI series |
| Nominal Rated Voltage | 115 Volts AC, 125 Volts DC |
| Supply Voltage Range | 18-30 VDC |
| Nominal Supply Voltage | 24 VDC |
| Voltage Range | 90-135 Volts AC, 105-150 Volts DC |
| Frequency | 47 to 63 Hertz |
| Power Consumption | 16.8 Watts |
| Power at 115 Volts AC | Max 48 Volt-Amps at full load |
| Power at 125 Volts AC | Max 24 Watts at full load |
| Inrush Current | 15-50 Amps peak for 3 ms maximum |
| Power Supply Output | 6.5 VDC ±5% |
| Current Output to Modules | 1.4 A |
| Holdup Time | Maximum 20 milliseconds |
| Supported Protocols | Genius Bus |
| MTBF (Mean Time Between Failures) | Over 183,000 hours |
| Product Lifecycle Status | Discontinued/Obsolete |
| CPU Redundancy | Supported |
| Hot Insertion and Removal | Supported |
