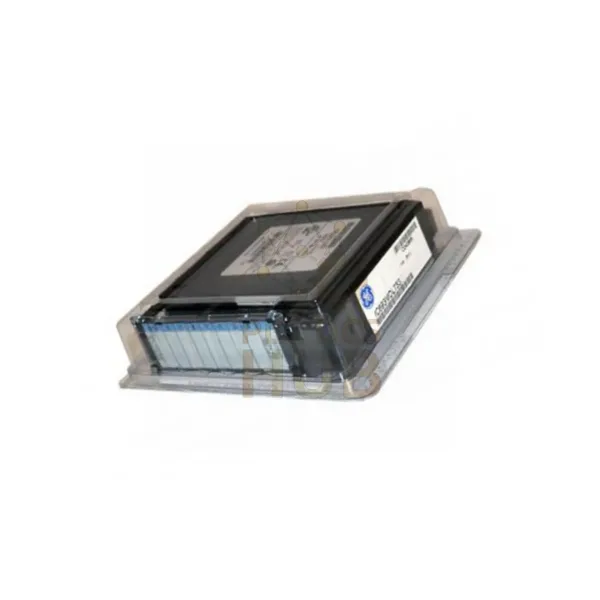

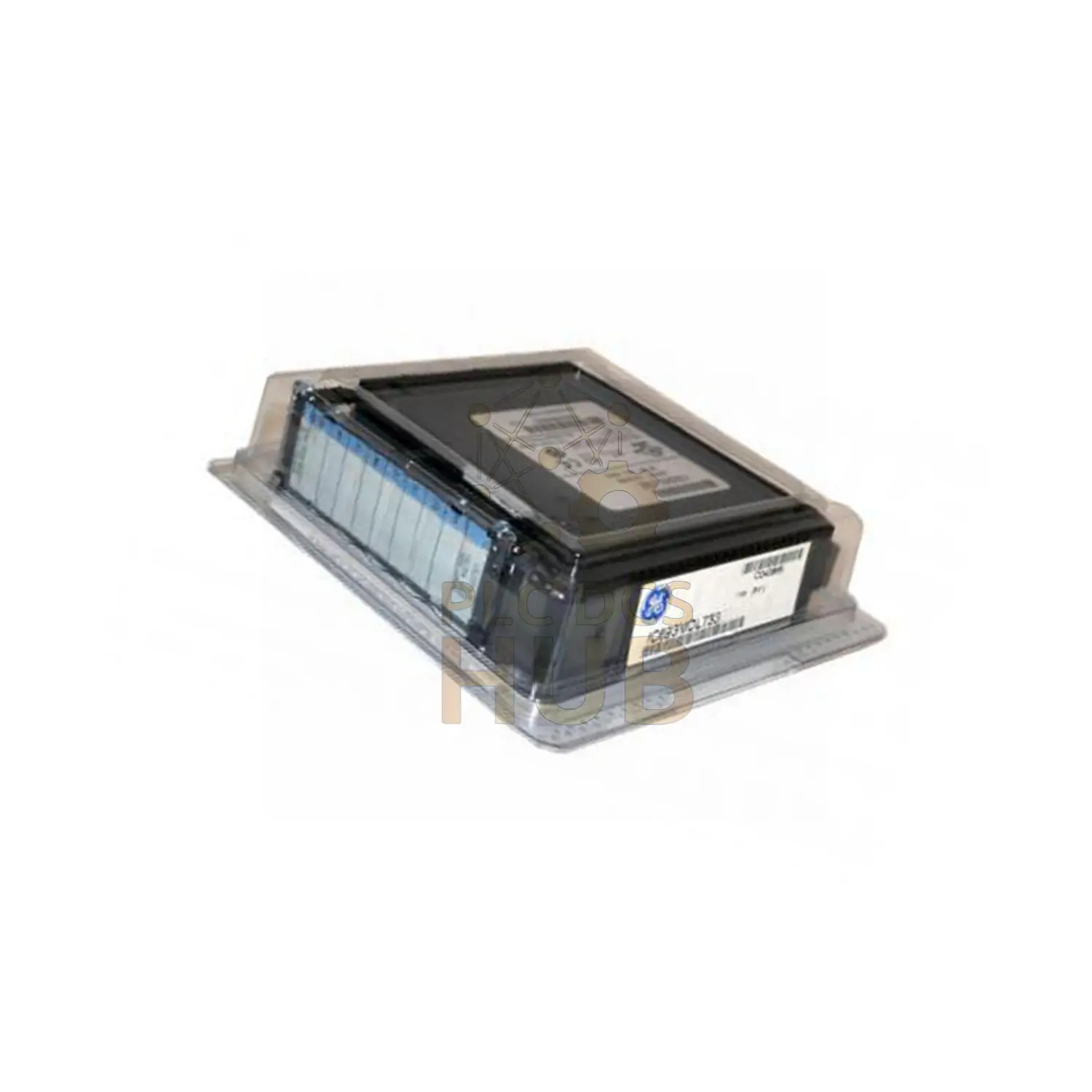

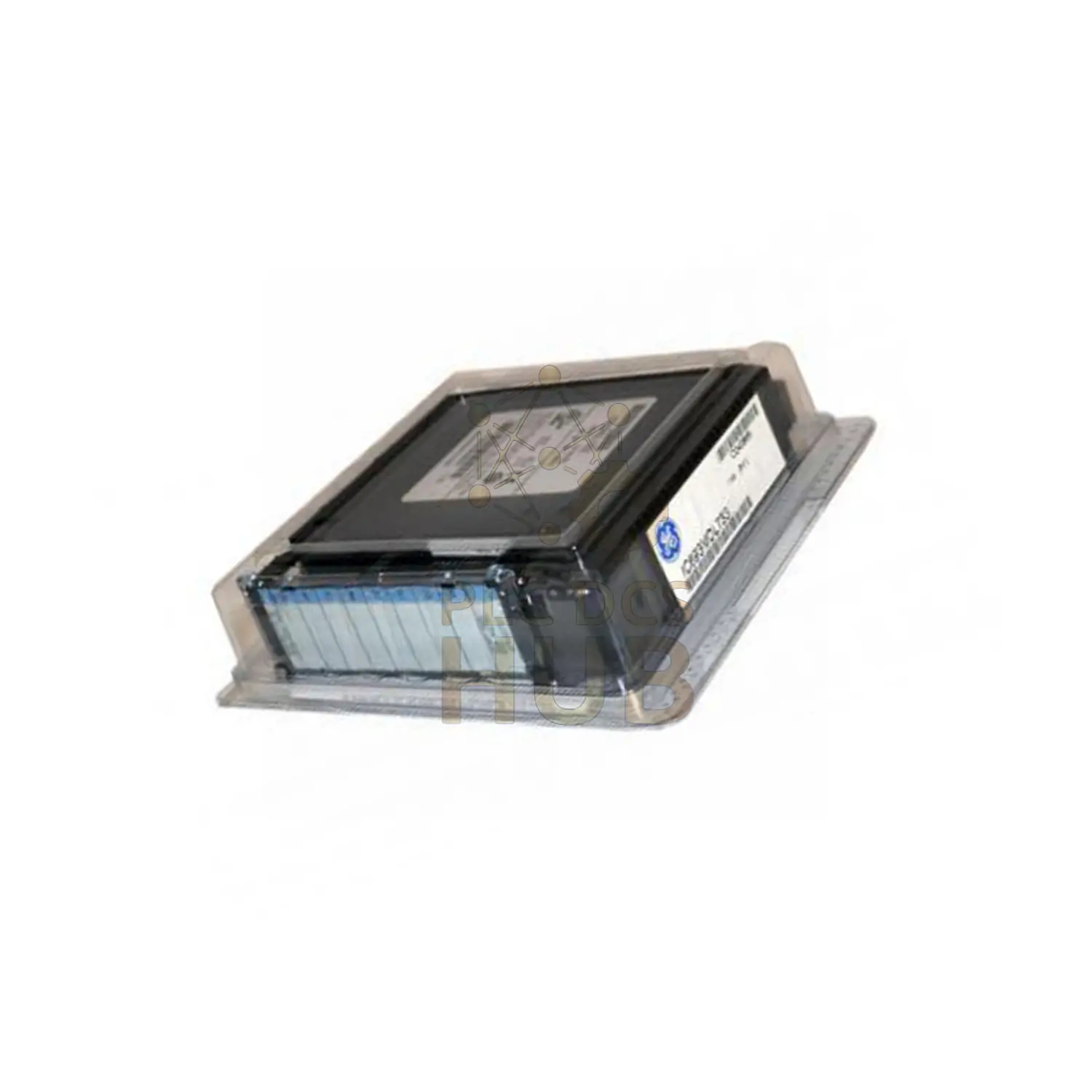

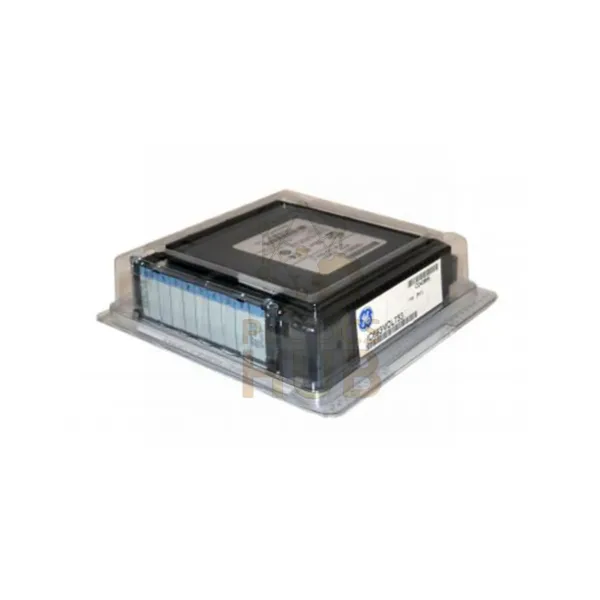

IC693MDL730: High-Current PLC Output Module
Core Functionality
Drive heavy industrial loads with this 8-channel output module. Designed for Series 90-30 PLCs. Each channel handles 2A at 24VDC with 2ms switching speed.
Technical Specifications
| Brand | GE Fanuc/Emerson |
| Model | IC693MDL730 |
| Output Type | Transistor Sourcing |
| Channels | 8 (single group) |
| Voltage Range | 12-24VDC ±20% |
| Current Capacity | 2A per point |
| Fuse Rating | 2A @60°C 4A @50°C |
| Response Time | 2ms on/off |
Electrical Performance
- Inrush current: 9.4A for 10ms
- Voltage drop: 1.2V max
- Off-state leakage: 1mA max
- Power consumption: 55mA @5VDC
Installation Guide
- Fits any slot in 90-30 baseplates
- 20-screw terminal block included
- External power supply required
- Removable terminal board for maintenance
Package Contents
- 1x IC693MDL730 module
- Terminal block with 20 screws
- Installation guide
Warranty & Shipping
- 12-month reliability guarantee
- FedEx, UPS, DHL worldwide delivery
Status Monitoring
- Per-channel output indicators
- Blown fuse detection
- Module fault indicator
FAQ
Q: What’s the maximum load per channel?
A: 2A continuous at 24VDC.
Q: How does temperature affect performance?
A: Fuse rating changes: 4A @50°C, 2A @60°C.
Q: Is external power needed?
A: Yes, requires 12-24VDC power supply.
Q: What safety features are included?
A: Blown fuse detection and 1500V isolation.
