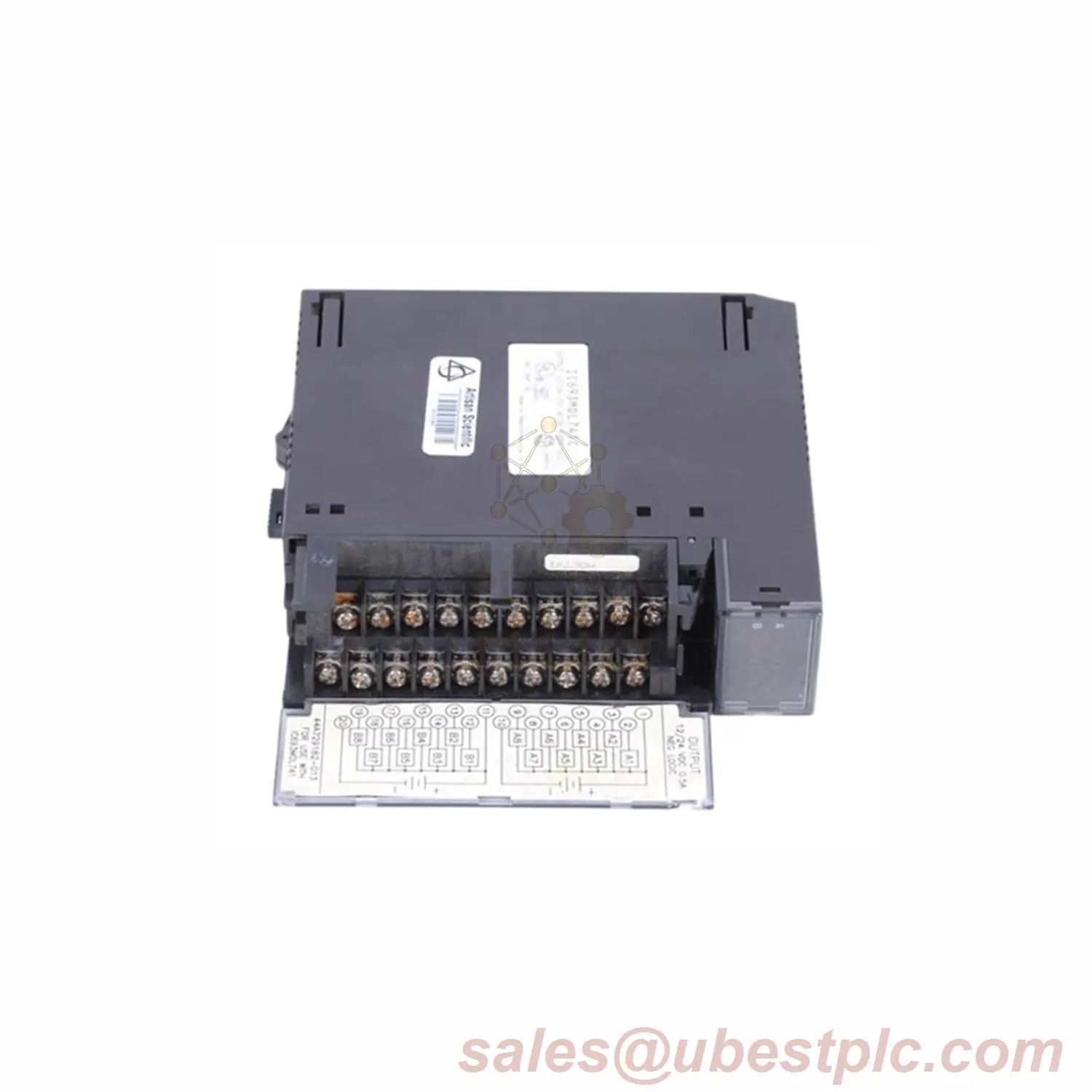

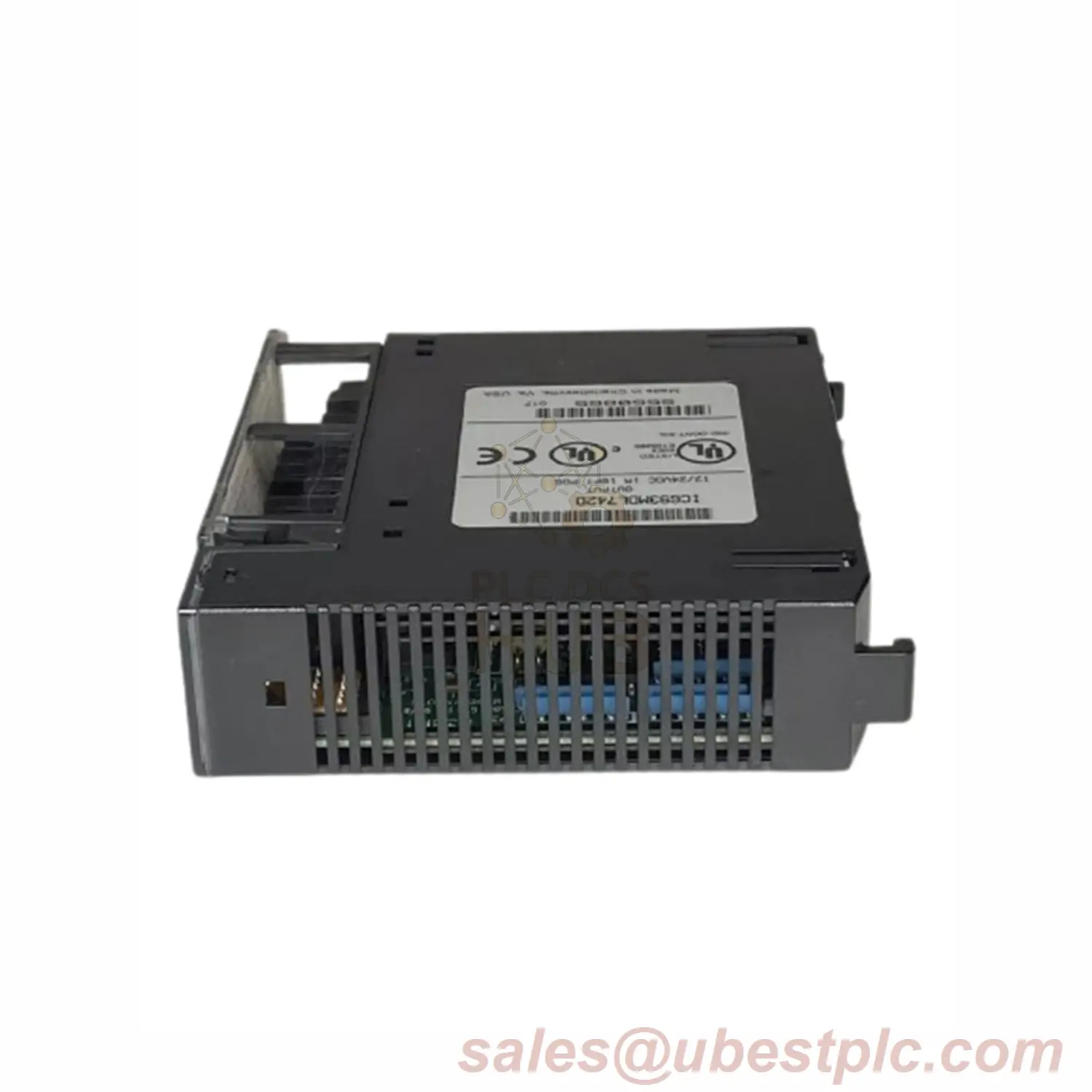

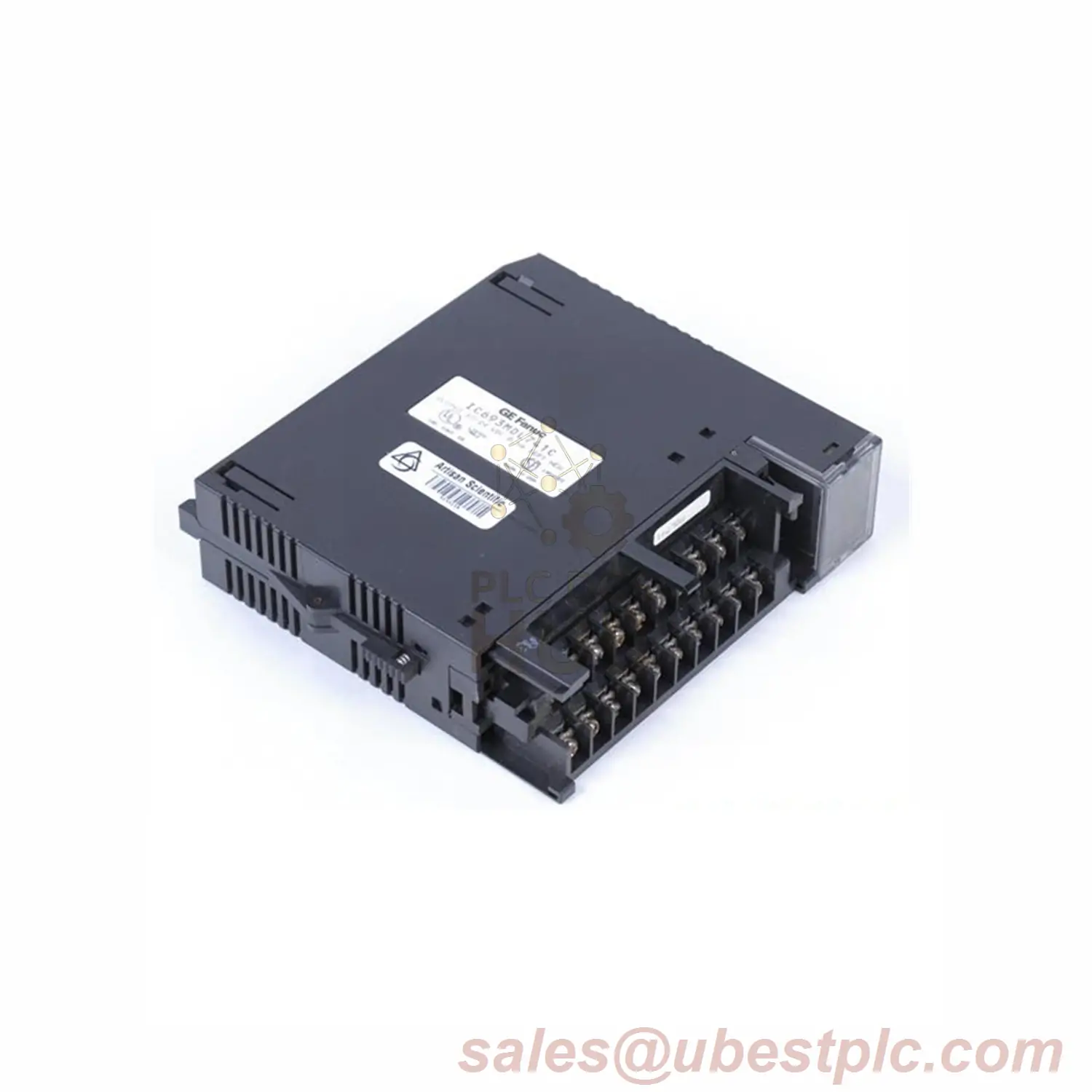

GE Fanuc IC694MDL741 Negative Logic Output Module
Product Description
16-channel DC output module for PACSystem RX3i. Features negative logic wiring and high-density control. Designed for industrial automation with dual-group isolation and fast response. Now manufactured by Emerson Automation.
Key Features
- Negative logic (current sinking)
- 16 output channels in 2 isolated groups
- 0.5A per point / 2A per common
- Ultra-fast 2ms response time
- Per-channel status LEDs + fault indicator
Technical Specifications
| Brand | GE Fanuc (Emerson Automation) |
| Model | IC694MDL741 (Full suffix) |
| Series | PACSystem RX3i |
| Voltage | 12-24VDC (±15-20%) |
| Output Current | 0.5A/channel, 2A/common |
| Isolation | 1500V AC (1 min rating) |
| Response Time | 2ms (on/off) |
| Voltage Drop | 0.5V max |
| Power Consumption | 110mA (all outputs on) |
Installation
- Fits any RX3i baseplate slot
- Supports local and distributed I/O
- Requires external power supply
- Includes writable module insert for labeling
Compatibility
Designed for PACSystem RX3i platforms. Compatible with RX3i CPU and I/O racks.
Package & Warranty
- IC694MDL741 module
- Installation documentation
- 12-month manufacturer warranty
Shipping
Global delivery via FedEx, UPS, DHL
FAQ
Q: What does “negative logic” mean?
A: Module sinks current from negative power bus
Q: Maximum load per common group?
A: 2A total per 8-channel group
Q: What does red “F” LED indicate?
A: Module fault condition requiring inspection
