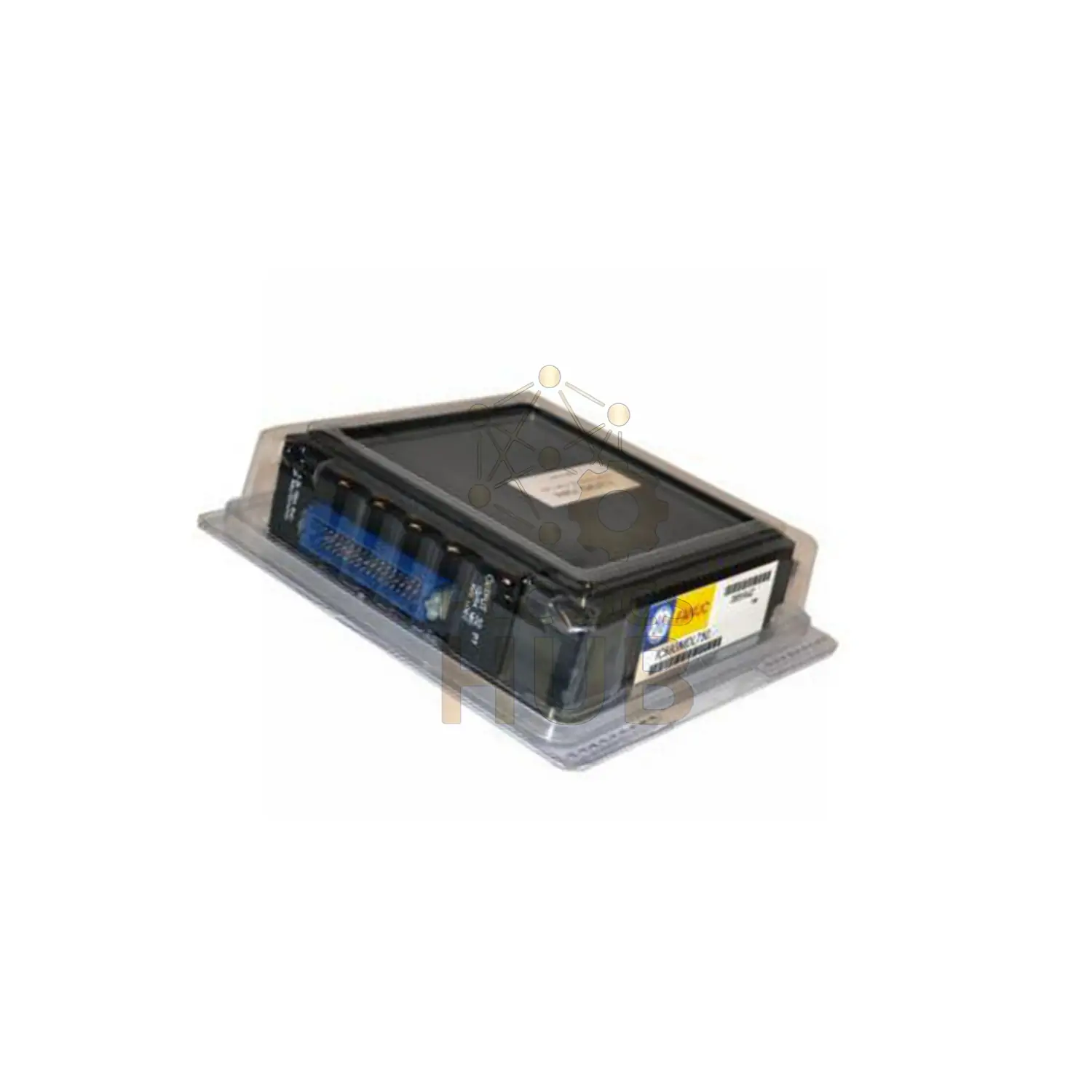

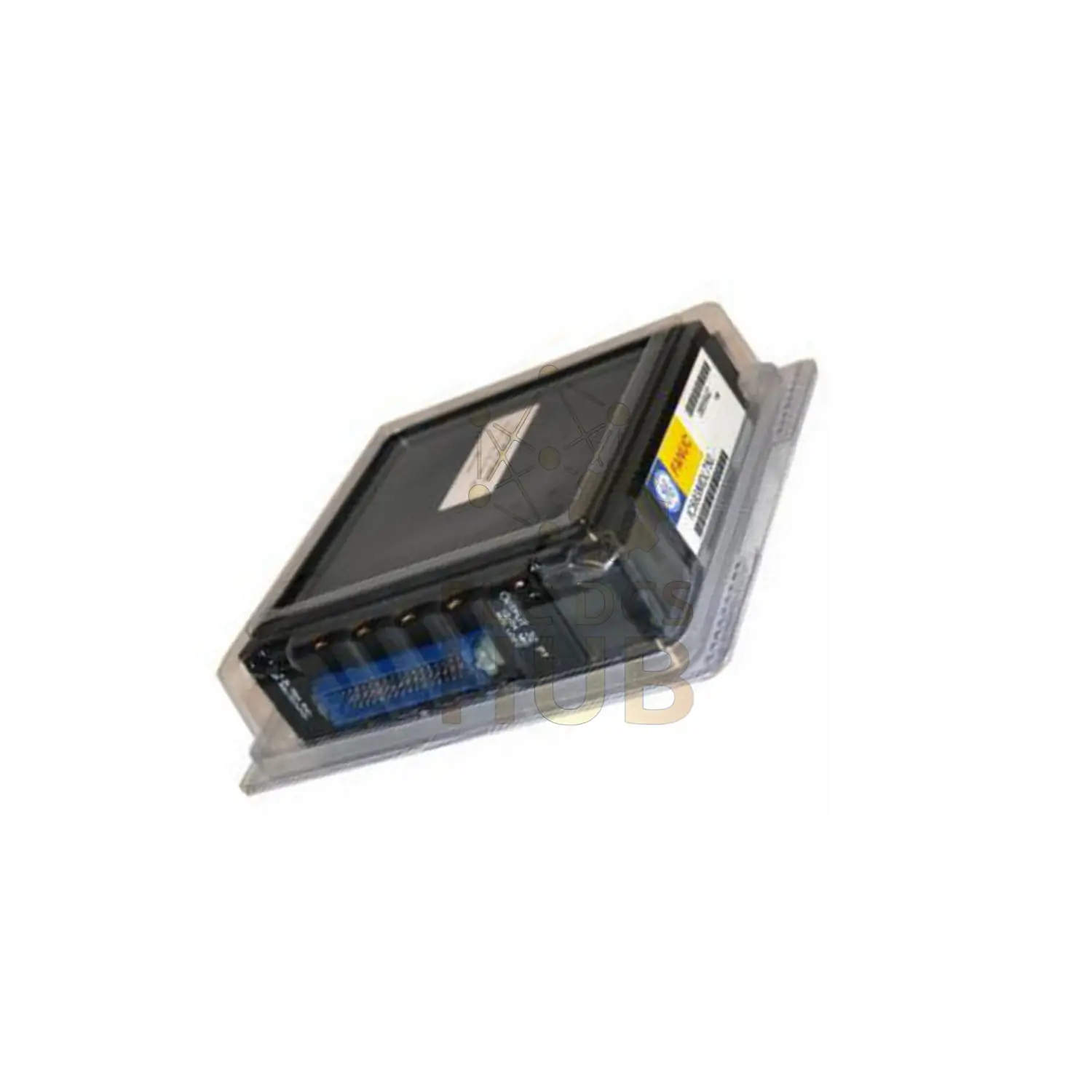

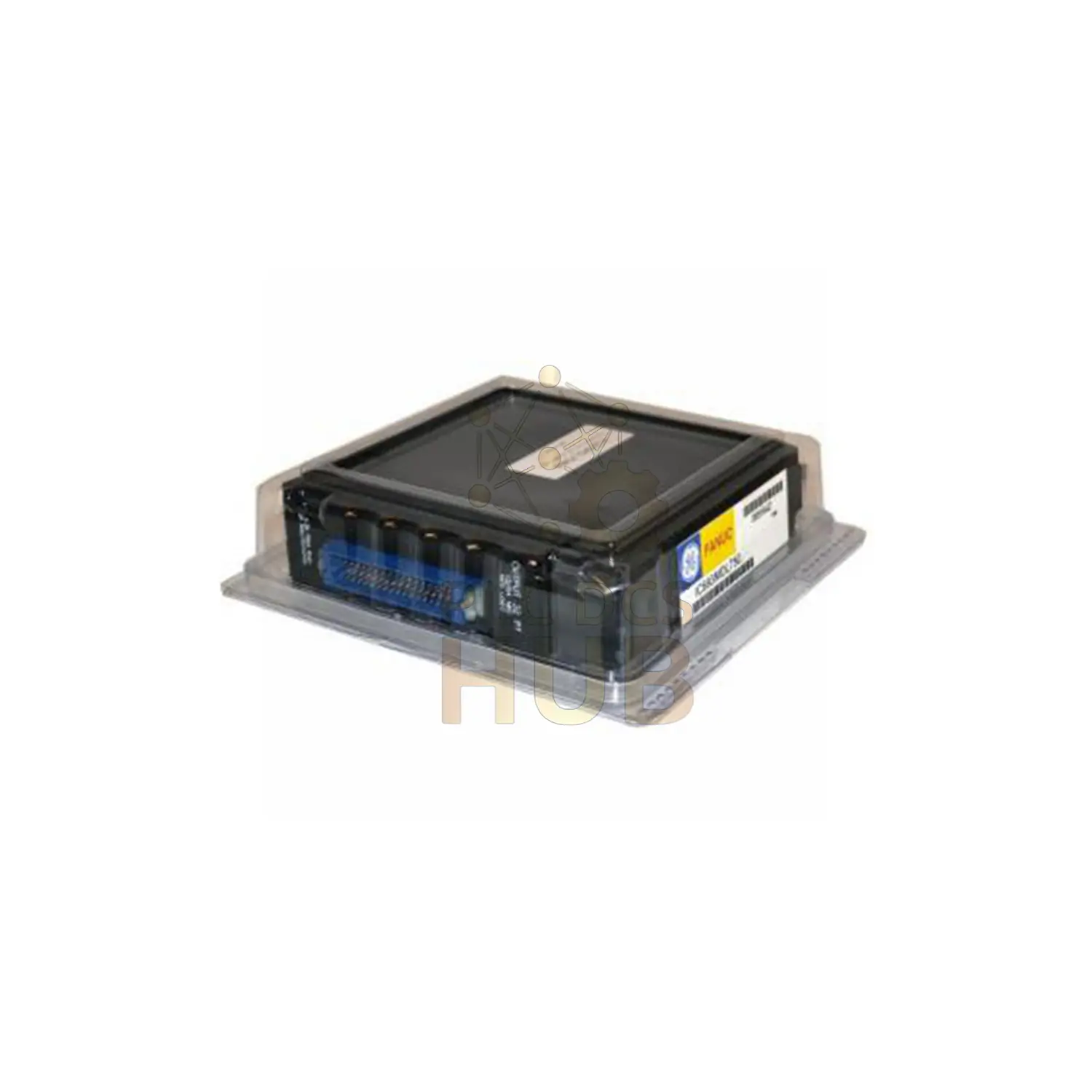

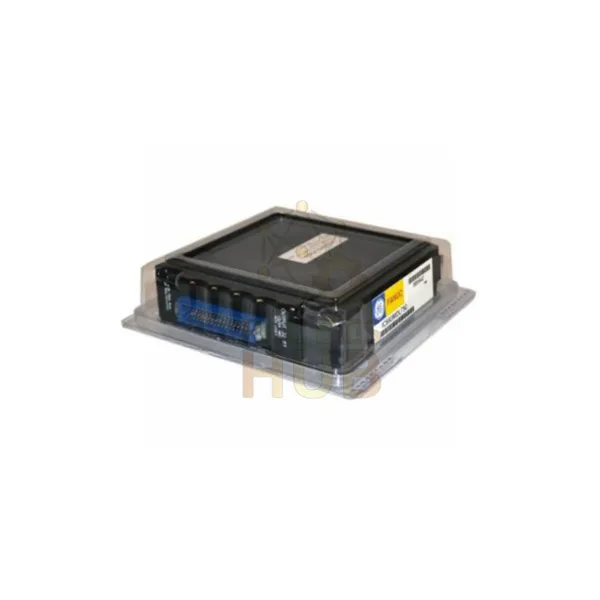

GE Fanuc IC693MDL750 Digital I/O Module – High-Density Control for Compact Systems
Key Advantages
The IC693MDL750 is a 32-point negative logic module built for GE Series 90-30 PLCs. With a 50-pin connector and 12-24VDC rating, it drives devices like motor starters and indicators. Ideal for space-constrained setups requiring high I/O density without LEDs.
Critical Specifications
- Brand: GE Fanuc
- Model: IC693MDL750
- Outputs: 32 points (4 groups of 8)
- Voltage: 12-24VDC
- Current per Point: 0.3A (peak)
- Common Current: 2A/group @140°F
- Power Draw: 21mA @5VDC
- Storage Temp: -40°F to 185°F
Installation Tips
- Mount in 5/10-slot Series 90-30 bases.
- Use IP54-rated enclosures for dust/moisture protection.
- Ensure external power supplies match 12-24VDC load requirements.
What’s Included
- IC693MDL750 Module
- 12-month warranty.
Global Delivery
Shipped same-day via FedEx, UPS, DHL. Trackable worldwide.
FAQ
Q: How to troubleshoot without LED indicators?
A: Use a multimeter or PLC software to monitor output status via the 50-pin port.
Q: Max load per group?
A: 2A total per 8-point group. Avoid exceeding 0.3A per point.
Q: Compatible with 24V sensors?
A: Yes – supports 12-24VDC loads. Verify external power supply capacity.
