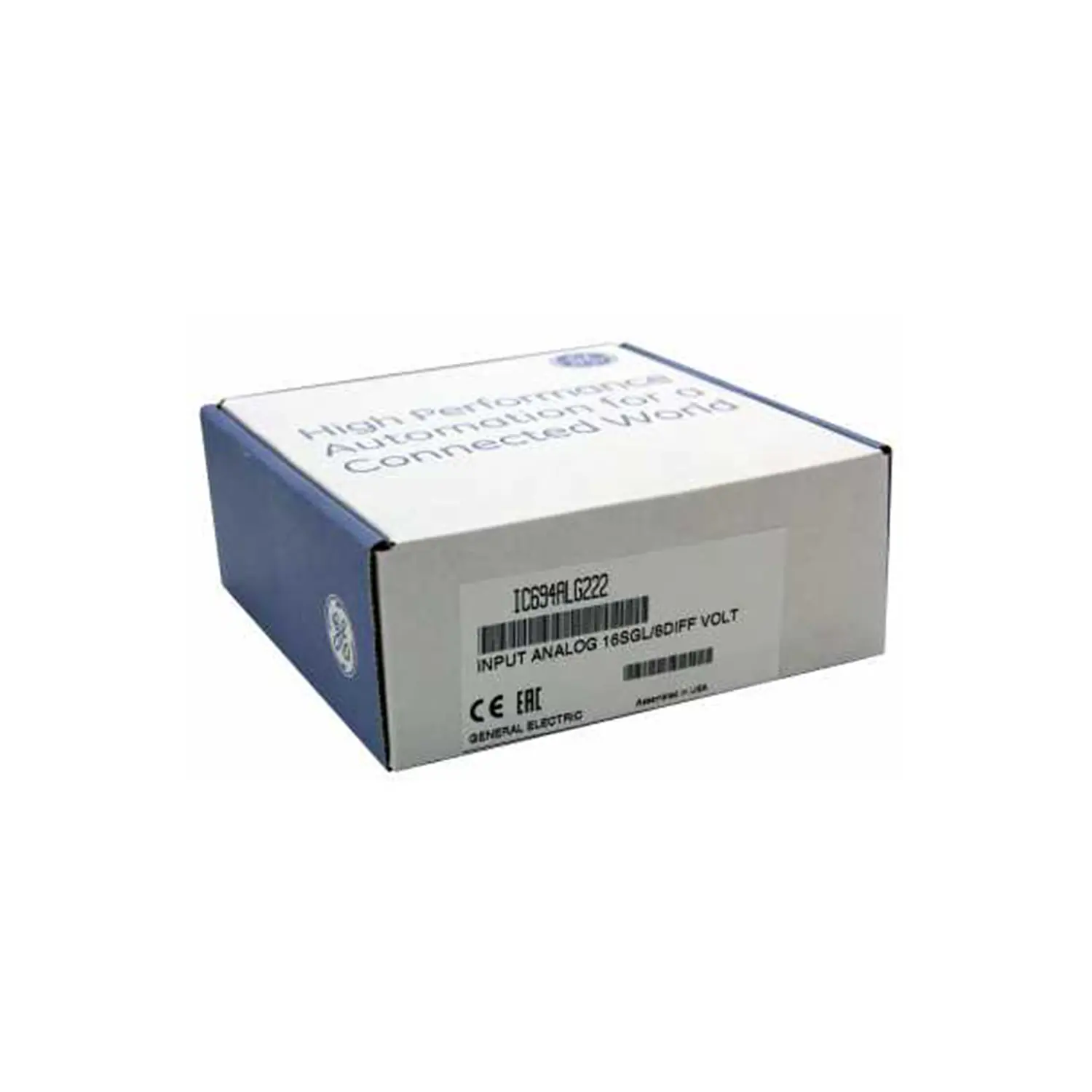

IC694ALG222 GE Fanuc – RX3i Analog Input Module PACSystems RX3i

16-Channel Analog Input Module – Precision & Speed

The IC694ALG222 by Emerson Automation (ex-GE) handles 16 single-ended or 8 differential inputs. Perfect for high-noise industrial environments.

Why Choose This?

• ✅ 16 Inputs (single-ended) or 8 Inputs (differential)
• ✅ Ultra-Fast: 3-6ms update rate
• ✅ High Accuracy: ±0.25% error at 25°C
• ✅ EMI Resistant – ideal for noisy areas
• ✅ 12-month warranty

Key Specs

• Brand: Emerson
• Model: IC694ALG222
• Voltage Ranges: 0-10V (unipolar) / ±10V (bipolar)
• Resolution: 2.5mV (0-10V) / 5mV (±10V)
• Speed: 3ms (differential) / 6ms (single-ended)
• Isolation: 250V AC (continuous)
• Shipping: FedEx, UPS, DHL

Setup Guide

1. Power off the RX3i system.
2. Install in any I/O slot.
3. Connect sensors via terminal block.

Best For

• Noisy factories (use differential mode)
• Process control systems
• Multi-sensor monitoring

Real-World Impact

A power plant monitored 12 pressure sensors with IC694ALG222, achieving 99.8% uptime in high-EMI areas.

FAQ

Q: Single-ended vs differential?
Differential resists noise better – use in harsh environments.

Q: Max voltage per channel?
±10V (bipolar) or 0-10V (unipolar).
