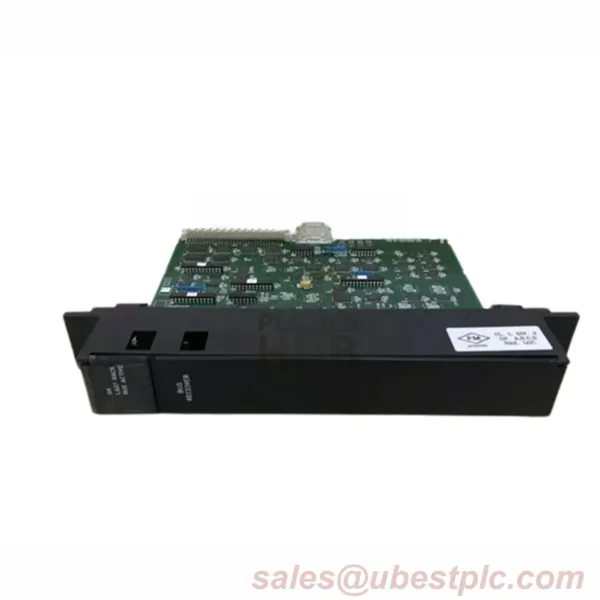

GE Fanuc IC697BEM735 Remote I/O Scanner: Long-Range PLC Control
Description
Connect IC697 PLC systems to remote devices up to 7,500 feet away. This intelligent scanner links IC697 I/O modules, analog expanders, and bus transmitters via IC66 Bus. Features transparent diagnostic door and dual connectors.
Technical Data
| Brand | GE Fanuc |
| Model | IC697BEM735 |
| Series | Series 90-70 |
| Voltage | 5V DC |
| Current | 1.3A (backplane) |
| I/O Capacity | 1024 Discrete / 64 Analog |
| Range | 7,500 ft (2,275 m) |
| Connectors | 9-pin D-Type + RS-422/485 |
Installation Guide
- Mount in any IC697 rack slot
- Max 30 remote drops per IC66 Bus
- Configure via IC66 handheld monitor or DOS software
Diagnostics & Maintenance
- 3 LED indicators behind transparent door
- Removable IC66 Bus terminals
- Dust-resistant housing
Packaging List
- IC697BEM735 Scanner Module
- Terminal Blocks (16-pin)
- Quick Start Guide
Shipping
FedEx | UPS | DHL (2-5 business days)
FAQ
Q: Supported hosts?
A: QBIM, PCIM, IC660/655 PLCs, third-party GENI devices
Q: Max devices per drop?
A: 8 devices (5-slot/9-slot racks)
Q: Operating temperature?
A: 0°C to 60°C (32°F to 140°F)
