Bently Nevada – 3300 NSv Proximity Probe 330904-08-10-10-11-00

Description

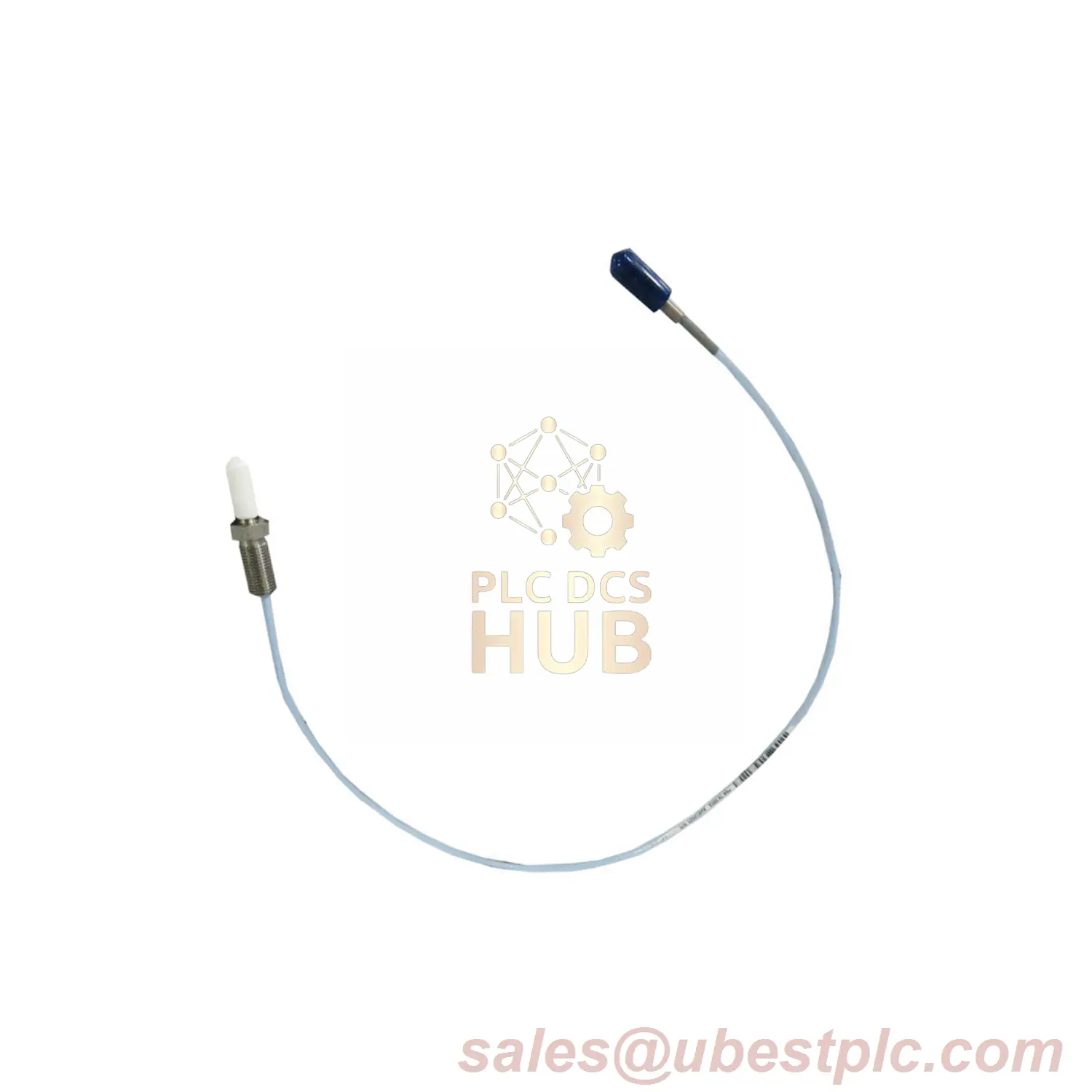

330904-08-10-10-11-00 FluidLoc Proximity Probe

New factory-sealed vibration sensor with special FluidLoc cable for wet environments. Perfect for harsh industrial applications.

Product Identification

• Brand: Bently Nevada
• Full Model: 330904-08-10-10-11-00
• Type: 3300 NSv Proximity Probe

Configuration Details

• ▸ 330904 – Armored probe, M8X1 thread
• ▸ -08- – 80mm unthreaded length
• ▸ -10- – 100mm total case length
• ▸ -10- – 1.0 meter cable (39 inches)
• ▸ -11- – ClickLoc connector with protector + FluidLoc cable
• ▸ -00- – No agency approvals needed

Technical Performance

• Temperature Range: -52°C to +177°C
• Probe Resistance: 4.2Ω ±0.5 (1m cable)
• Frequency Response: 0-10 kHz (±3dB)
• Sensitivity: 7.87V/mm (200mV/mil)
• Linear Range: 0.25-1.75mm
• Accuracy: ±0.06mm deviation

Special Features

• FluidLoc Cable – For wet/chemical environments
• Stainless steel armor protection
• Chemical-resistant PPS probe tip
• Viton O-ring pressure seal
• 1.0m optimal length for tight spaces

Installation Guide

• Gap Setting: 1.0mm (40 mils)
• Mounting Torque: 5.1 N•m (45 in•lb)
• Thread Engagement: Max 12mm
• Bend Radius: >25.4mm (1 inch)

Package & Support

• 12-month factory warranty
• New in original packaging
• Global shipping: FedEx, UPS, DHL
• Compatible with 3300 RAM systems

Expert FAQs

• Q: What makes FluidLoc cable special?
  A: Extra protection in wet/chemical areas
• Q: Minimum shaft size for measurements?
  A: 13mm diameter recommended
• Q: Pressure rating for this probe?
  A: Viton sealed – contact for custom testing
• Q: Cable replacement options?
  A: Must use 75Ω coaxial FEP-insulated cable
• Q: Vibration limits for this model?
  A: Designed for high-vibration industrial use

Get Technical Documents

Download these free resources:

• FluidLoc cable specifications
• Installation torque guide
• Vibration measurement tips
• Compatibility charts

Download Complete Manual Package
